GENERATOR
8291SRi15.00 — 8291SRi15

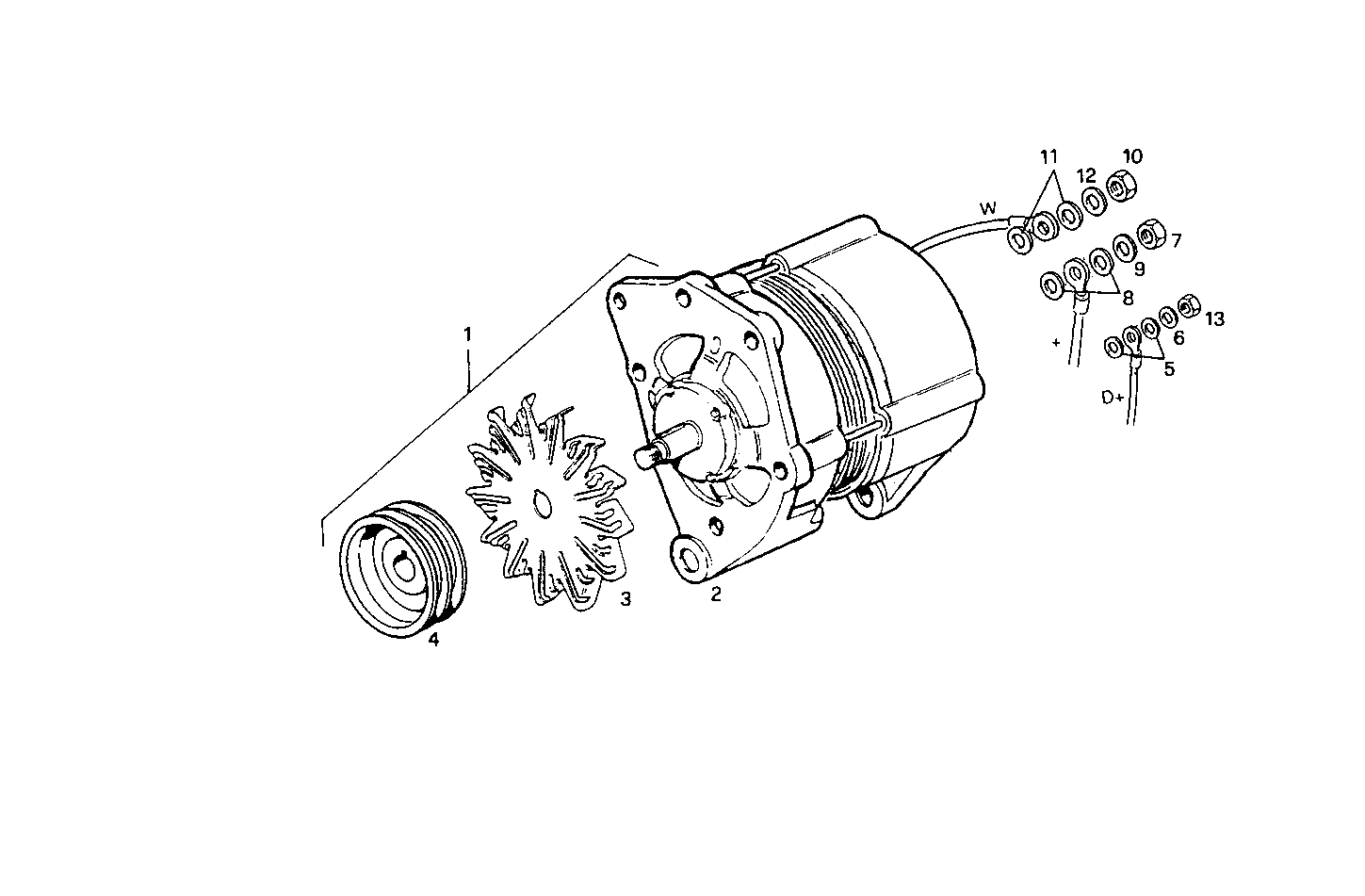

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019554 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 98424450 | ALTERNATOR ALTERNATOR | 1 | |
| 3 | 4757196 | GENERATOR FAN GENERATOR FAN | 1 | |
| 4 | 4802731 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 5 | 17094204 | WASHER WASHER | 2 | |
| 6 | 10615279 | WASHER WASHER | 1 | |
| 7 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 17094914 | WASHER WASHER | 2 | |
| 9 | 17094834 | WASHER WASHER | 1 | |
| 10 | 17037721 | NUT NUT | 1 | |
| 11 | 17094504 | WASHER WASHER | 2 | |
| 12 | 10615379 | TOOTHED WASHER TOOTHED WASHER | 1 | |
| 13 | 17037621 | HEXAGON NUT HEXAGON NUT | 1 |
