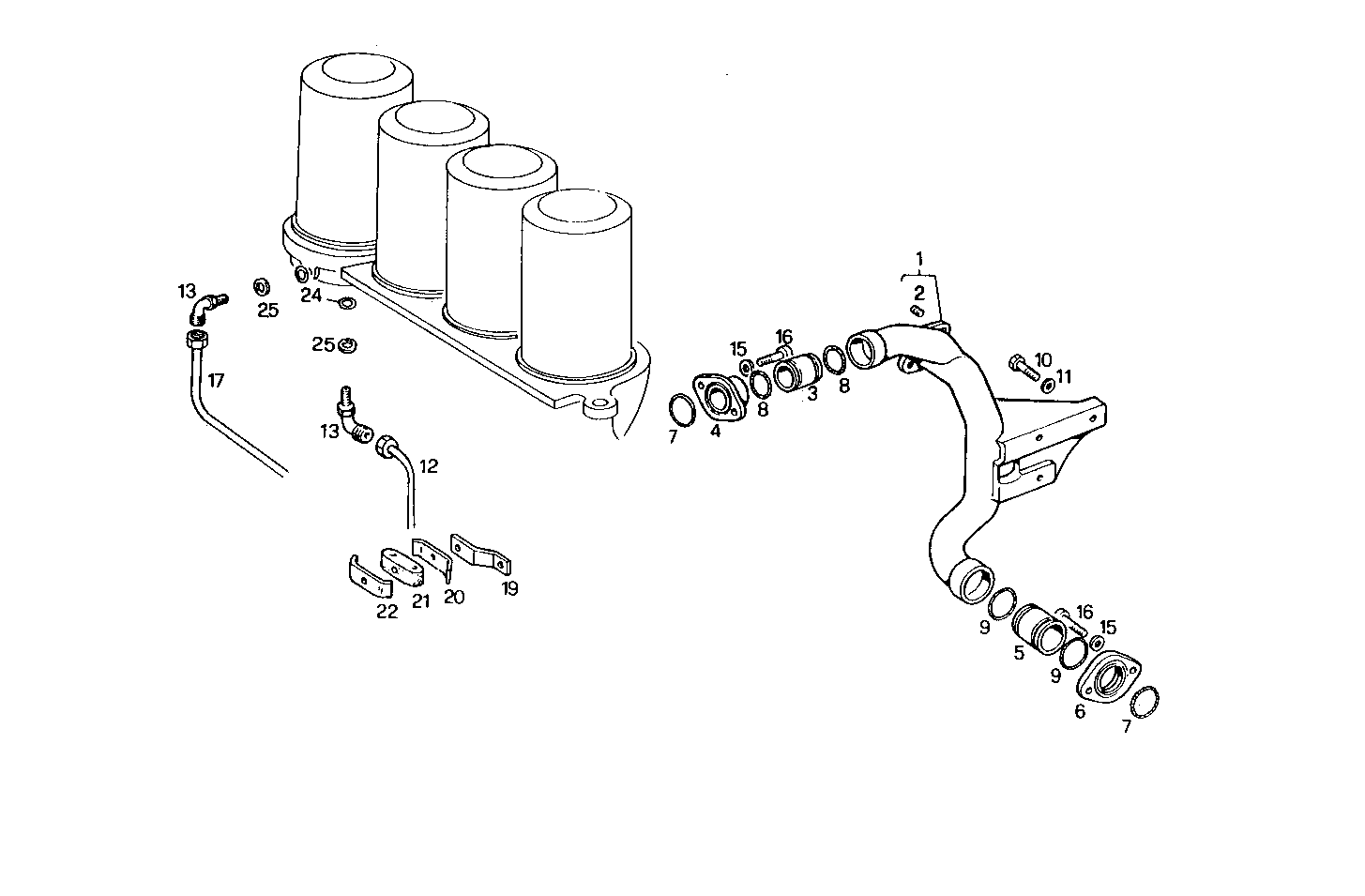

LUBE OIL LINES
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012808 | OIL LINE OIL LINE | 1 | |
| 2 | 17873271 | THREADED INSERT THREADED INSERT | 2 | |
| 3 | 8009898 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 4786965 | FLANGE FLANGE | 1 | |
| 5 | 8012825 | SPACING BAR SPACING BAR | 1 | |
| 6 | 8012828 | FLANGE FLANGE | 1 | |
| 7 | 17283781 | O-RING O-RING | 2 | |
| 8 | 17289681 | O-RING O-RING | 2 | |
| 9 | 17284281 | O-RING O-RING | 4 | |
| 10 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 11 | 17095104 | WASHER WASHER | 3 | |
| 12 | 8016434 | OIL LINE OIL LINE | 1 | |
| 13 | 8025927 | ELBOW COUPLING ELBOW COUPLING | 4 | |
| 15 | 17094904 | WASHER WASHER | 4 | |
| 16 | 16605724 | SCREW SCREW | 4 | |
| 17 | 8016493 | OIL LINE OIL LINE | 1 | |
| 19 | 8008962 | RETAINER RETAINER | 1 | |
| 20 | 4844288 | SPRING CLAMP SPRING CLAMP | 1 | |
| 21 | 4871771 | RUBBER PAD RUBBER PAD | 1 | |
| 22 | 4844289 | CLAMP CLAMP | 1 | |
| 24 | 17281581 | O-RING O-RING | 6 | |
| 25 | 4858608 | SEAL GASKET SEAL GASKET | 4 |
