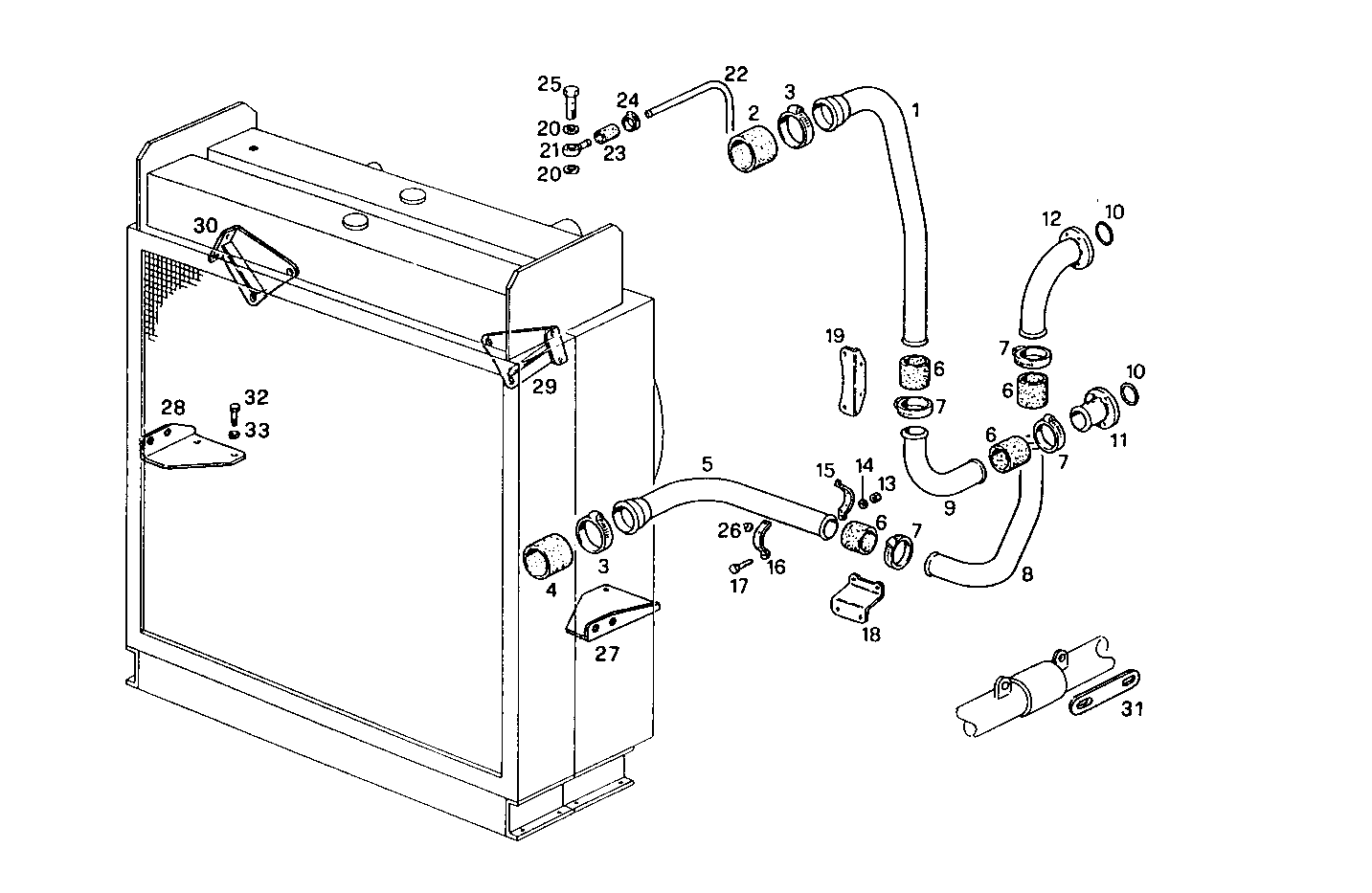

RADIATOR 2 CIRCUITS AIR/WATER
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019213 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8019244 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 3 | 17765591 | CLIP CLIP | 4 | |
| 4 | 8019245 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 8019214 | WATER PIPE WATER PIPE | 1 | |
| 6 | 61319109 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 7 | 17765191 | CLIP CLIP | 8 | |
| 8 | 8019264 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8019212 | WATER PIPE WATER PIPE | 1 | |
| 10 | 17290581 | O-RING O-RING | 2 | |
| 11 | 8018723 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8019215 | WATER PIPE WATER PIPE | 1 | |
| 13 | 17038121 | HEXAGON NUT HEXAGON NUT | 11 | |
| 14 | 17090174 | SPRING WASHER SPRING WASHER | 11 | |
| 15 | 8013655 | CLAMP CLAMP | 8 | |
| 16 | 8013656 | CLAMP CLAMP | 8 | |
| 17 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 11 | |
| 18 | 8019269 | SUPPORT SUPPORT | 1 | |
| 19 | 8019268 | SUPPORT SUPPORT | 1 | |
| 20 | 4858609 | WASHER WASHER | 2 | |
| 21 | 98413896 | PIPE SOCKET PIPE SOCKET | 1 | |
| 22 | 8017220 | WATER HOSE WATER HOSE | 1 | |
| 23 | 4927825 | WATER HOSE WATER HOSE | 1 | |
| 24 | 17764291 | CLIP CLIP | 2 | |
| 25 | 60127770 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 26 | 1366290 | RUBBER PAD RUBBER PAD | 16 | |
| 27 | 8021892 | RETAINER RETAINER | 1 | |
| 28 | 8021891 | RETAINER RETAINER | 1 | |
| 29 | 8021893 | RETAINER RETAINER | 1 | |
| 30 | 8021894 | RETAINER RETAINER | 1 | |
| 31 | 8021895 | RETAINER RETAINER | 3 | |
| 32 | 16609924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 33 | 17091374 | SPRING WASHER SPRING WASHER | 4 |
