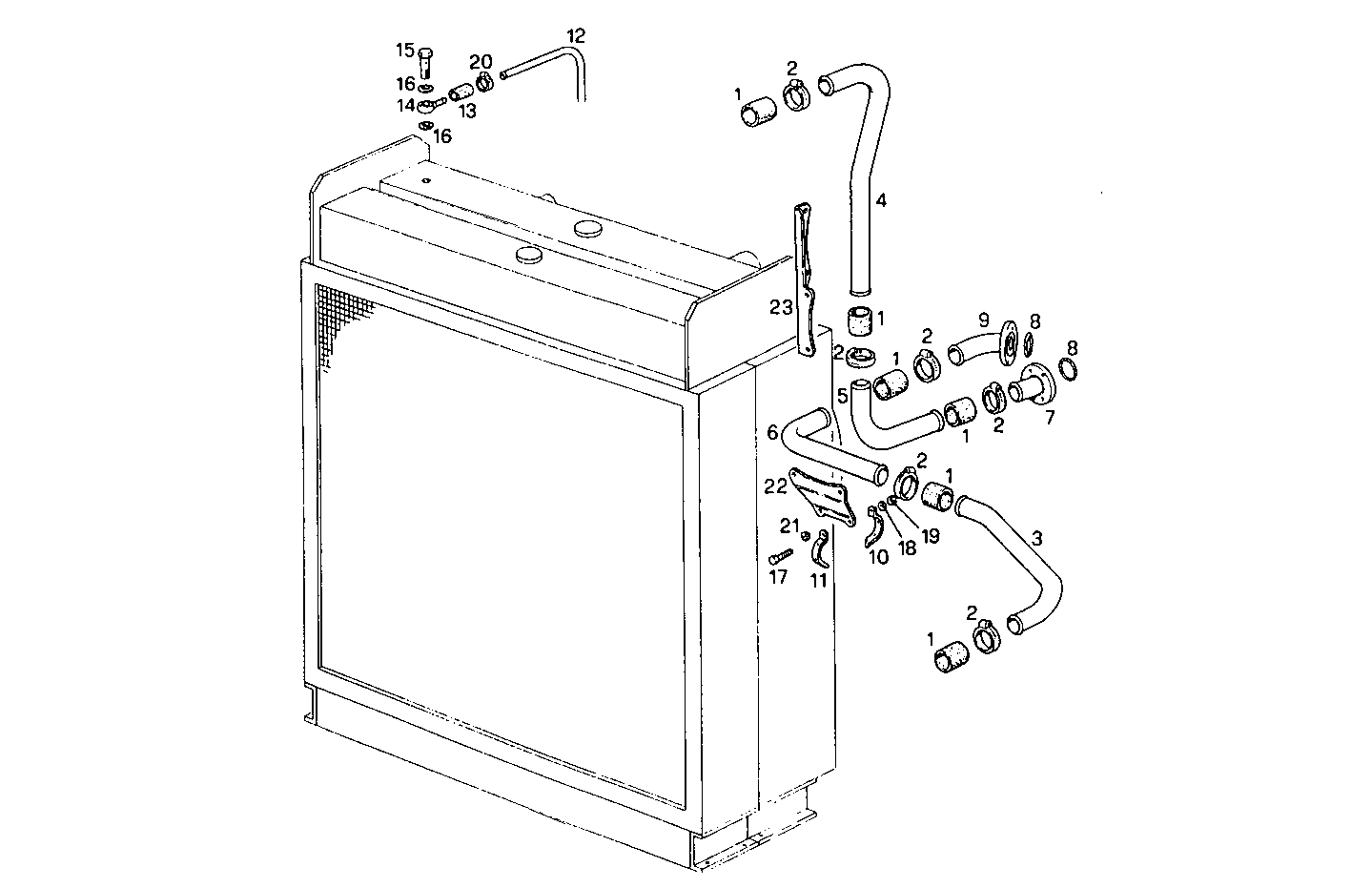

RADIATOR 2 CIRCUITS AIR/WATER
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98421391 | RUBBER SLEEVE RUBBER SLEEVE | 6 | |
| 2 | 17765091 | CLIP CLIP | 12 | |
| 3 | 8019218 | WATER PIPE WATER PIPE | 1 | |
| 4 | 8019217 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8019265 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8019219 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8019216 | WATER PIPE WATER PIPE | 1 | |
| 8 | 17290581 | O-RING O-RING | 2 | |
| 9 | 8019220 | WATER PIPE WATER PIPE | 1 | |
| 10 | 8017810 | CLAMP CLAMP | 8 | |
| 11 | 8017811 | CLAMP CLAMP | 8 | |
| 12 | 8017220 | WATER HOSE WATER HOSE | 1 | |
| 13 | 4927825 | WATER HOSE WATER HOSE | 1 | |
| 14 | 98413896 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 60127770 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 16 | 4858609 | WASHER WASHER | 2 | |
| 17 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 11 | |
| 18 | 17090174 | SPRING WASHER SPRING WASHER | 11 | |
| 19 | 17038121 | HEXAGON NUT HEXAGON NUT | 11 | |
| 20 | 17764291 | CLIP CLIP | 2 | |
| 21 | 1366290 | RUBBER PAD RUBBER PAD | 16 | |
| 22 | 8019270 | SUPPORT SUPPORT | 1 | |
| 23 | 8021816 | SUPPORT SUPPORT | 1 |
