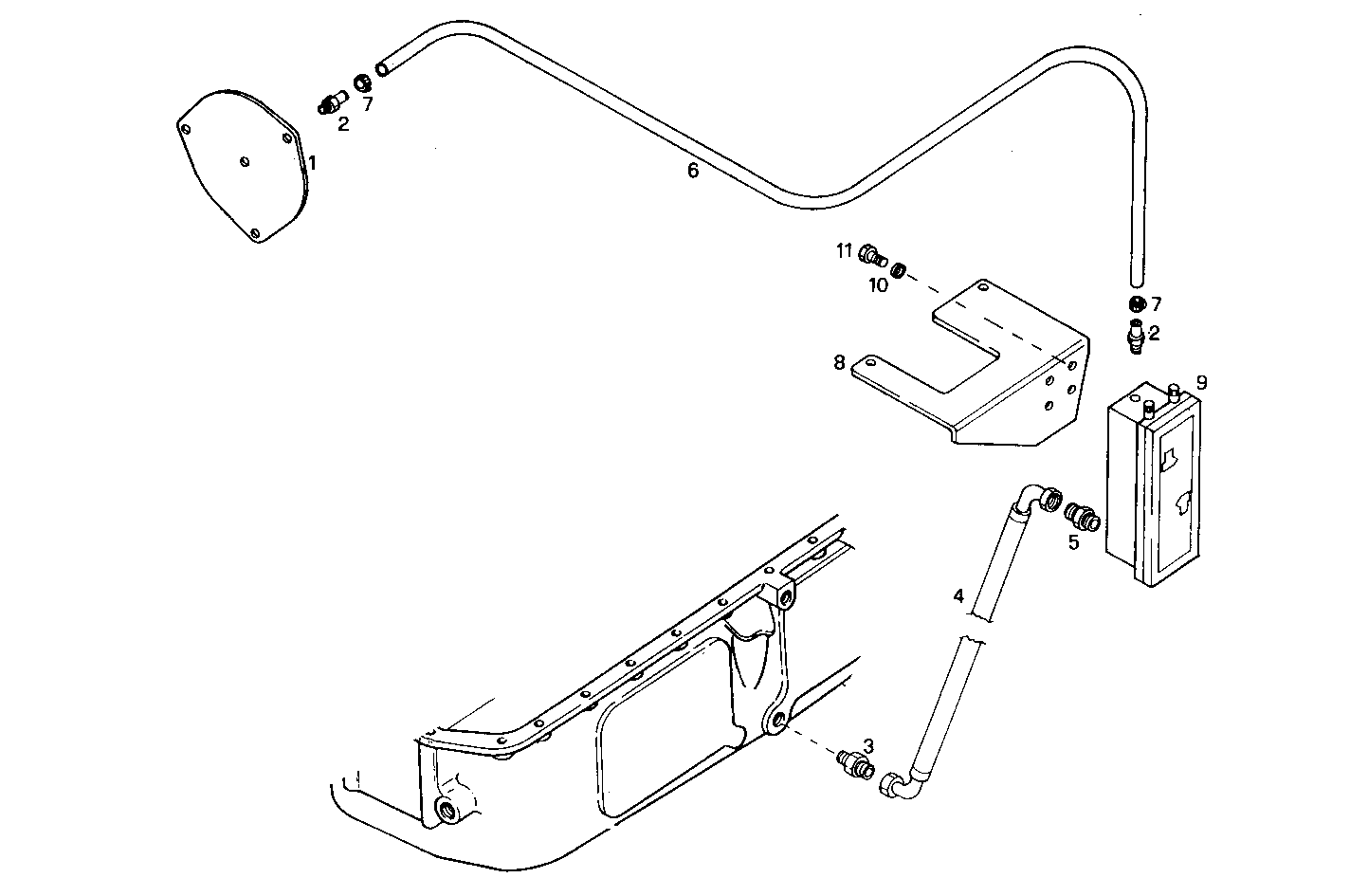

SENDER UNITS FOR OIL LEVEL - 12/24V
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8028260 | COVER COVER | 1 | |
| 2 | 4618675 | THREADED UNION THREADED UNION | 2 | |
| 3 | 8103812 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8100723 | HOSE HOSE | 1 | |
| 5 | 8023433 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 8028265 | OIL HOSE OIL HOSE | 1 | |
| 7 | 18088291 | CLIP CLIP | 2 | |
| 8 | 8023741 | RETAINER RETAINER | 1 | |
| 9 | 8022518 | TRANSMITTER TRANSMITTER | 1 | |
| 10 | 17088474 | WASHER WASHER | 4 | |
| 11 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 4 |
