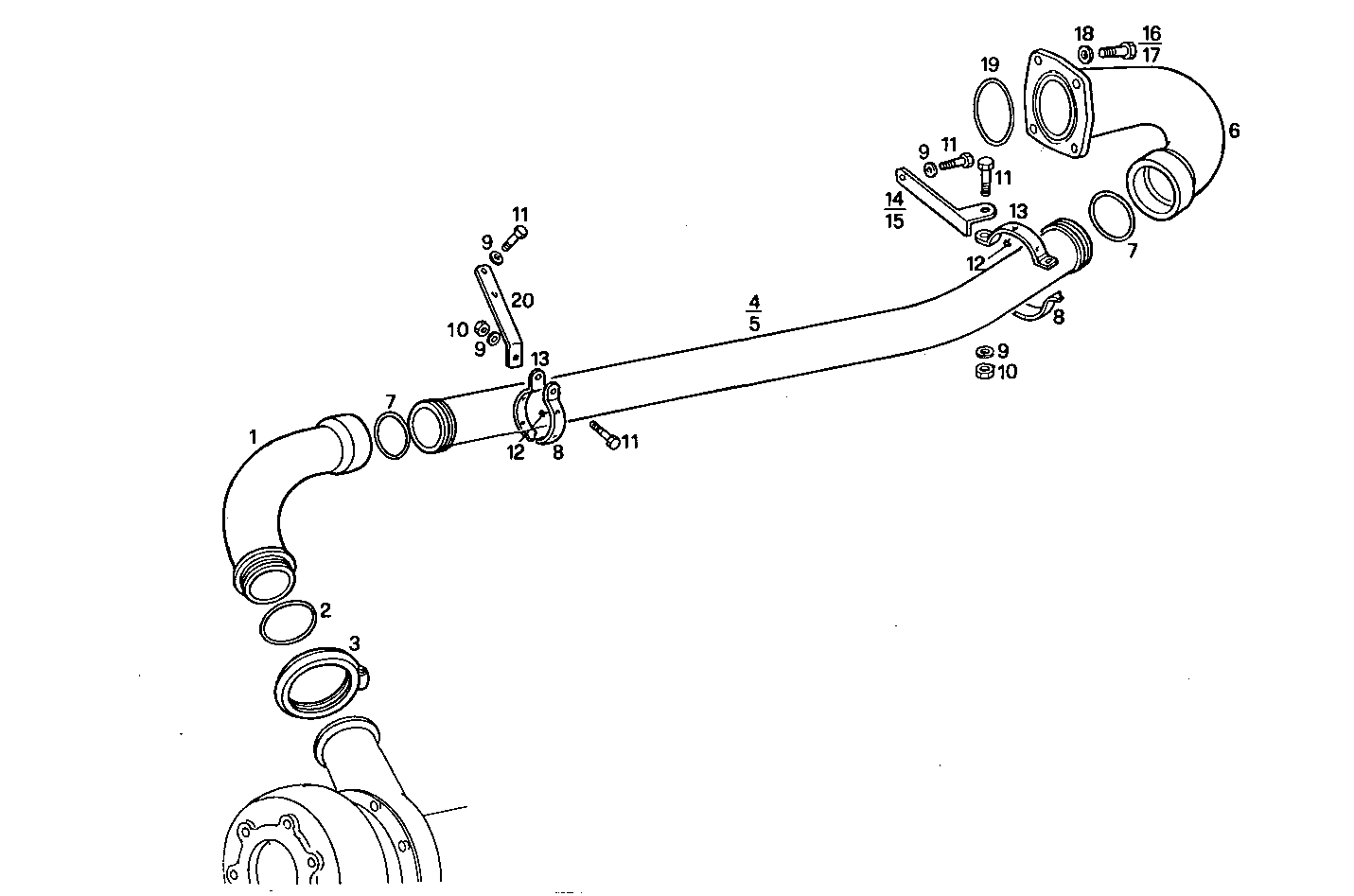

SUPERCHARGING LINES

8291SRi15.00 — 8291SRi15

Parts List

#	Part No	Name / Description	Qty
1	8013929	AIR PIPE/DUCT AIR PIPE/DUCT	2
2	17284781	O-RING O-RING	2
3	4800661	CLIP CLIP	2
4	8013953	AIR PIPE/DUCT AIR PIPE/DUCT	1
5	8013952	AIR PIPE/DUCT AIR PIPE/DUCT	1
6	8013957	AIR PIPE/DUCT AIR PIPE/DUCT	2
7	17290481	O-RING O-RING	8
8	8013656	CLAMP CLAMP	4
9	17090174	SPRING WASHER SPRING WASHER	8
10	17038121	HEXAGON NUT HEXAGON NUT	4
11	16607624	SCREW SCREW	8
12	1366290	RUBBER PAD RUBBER PAD	16
13	8013655	CLAMP CLAMP	4
14	8017178	RETAINER RETAINER	1
15	8017179	RETAINER RETAINER	1
16	16605724	SCREW SCREW	6
17	16005824	SCREW SCREW	2
18	17089774	SPRING WASHER SPRING WASHER	8
19	17291281	O-RING O-RING	2
20	8013667	RETAINER RETAINER	2
