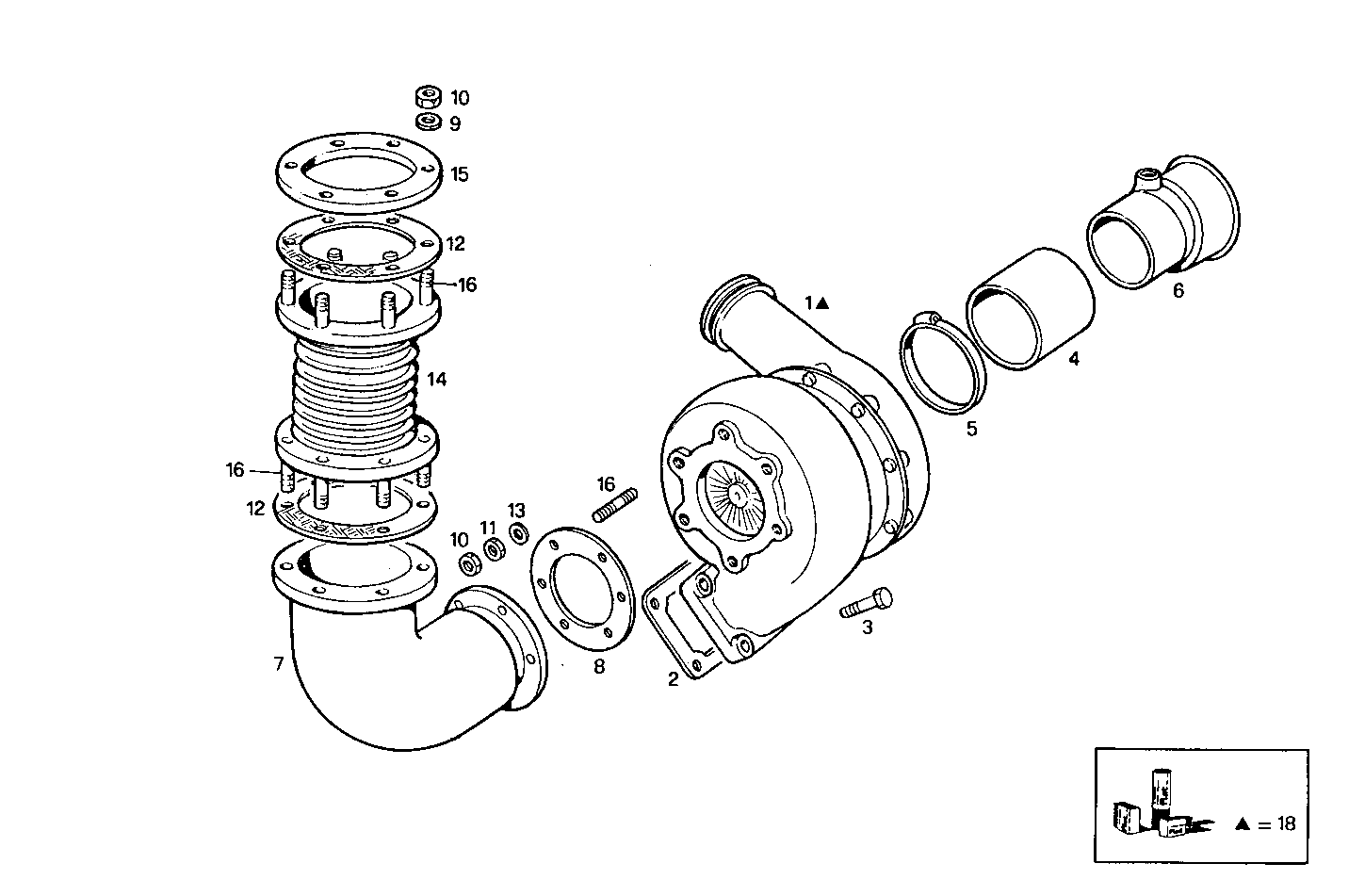

TURBOCHARGER
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017221 | TURBOCHARGER TURBOCHARGER | 2 | |
| 2 | 4512366 | GASKET GASKET | 2 | |
| 3 | 98480687 | SCREW SCREW | 8 | |
| 4 | 8017055 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 5 | 17765793 | CLIP CLIP | 4 | |
| 6 | 8018652 | AIR MANIFOLD AIR MANIFOLD | 2 | |
| 7 | 8018138 | EXHAUST ELBOW EXHAUST ELBOW | 2 | |
| 8 | 42075987 | GASKET GASKET | 2 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 24 | |
| 10 | 17038121 | HEXAGON NUT HEXAGON NUT | 36 | |
| 11 | 16979631 | HEXAGON NUT HEXAGON NUT | 12 | |
| 12 | 8010072 | GASKET GASKET | 4 | |
| 13 | 16665614 | WASHER WASHER | 12 | |
| 14 | 8016095 | EXHAUST BELLOWS EXHAUST BELLOWS | 2 | |
| 15 | 8010113 | FLANGE FLANGE | 2 | |
| 16 | 16731234 | STUD STUD | 36 | |
| 18 | 8092706 | KIT-TURBOCHARGER KIT-TURBOCHARGER | 1 |
