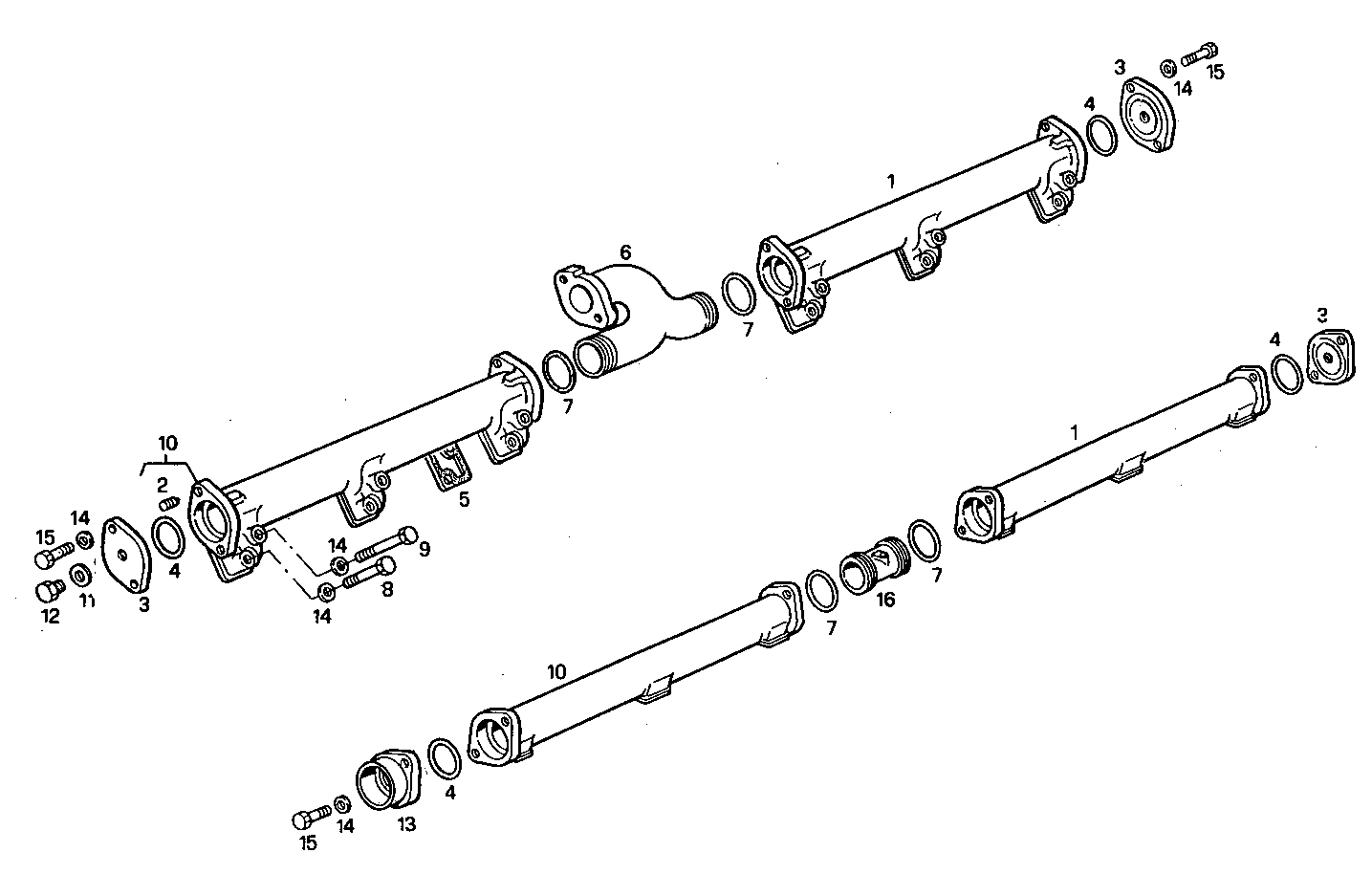

WATER LINES
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008152 | WATER PIPE WATER PIPE | 2 | |
| 2 | 17873271 | THREADED INSERT THREADED INSERT | 8 | |
| 3 | 8016231 | COVER COVER | 3 | |
| 4 | 17284981 | O-RING O-RING | 4 | |
| 5 | 98418857 | FLAT ENGINE GKT FLAT ENGINE GKT | 12 | |
| 6 | 8013997 | CONNECTION CONNECTION | 1 | |
| 7 | 17289981 | O-RING O-RING | 4 | |
| 8 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 9 | 15214224 | SCREW SCREW | 12 | |
| 10 | 8011273 | WATER MANIFOLD WATER MANIFOLD | 2 | |
| 11 | 4858607 | WASHER WASHER | 3 | |
| 12 | 16992240 | THREADED PLUG THREADED PLUG | 3 | |
| 13 | 8014082 | FLANGE FLANGE | 1 | |
| 14 | 17089474 | SPRING WASHER SPRING WASHER | 32 | |
| 15 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 16 | 8007525 | CONNECTION CONNECTION | 1 |
