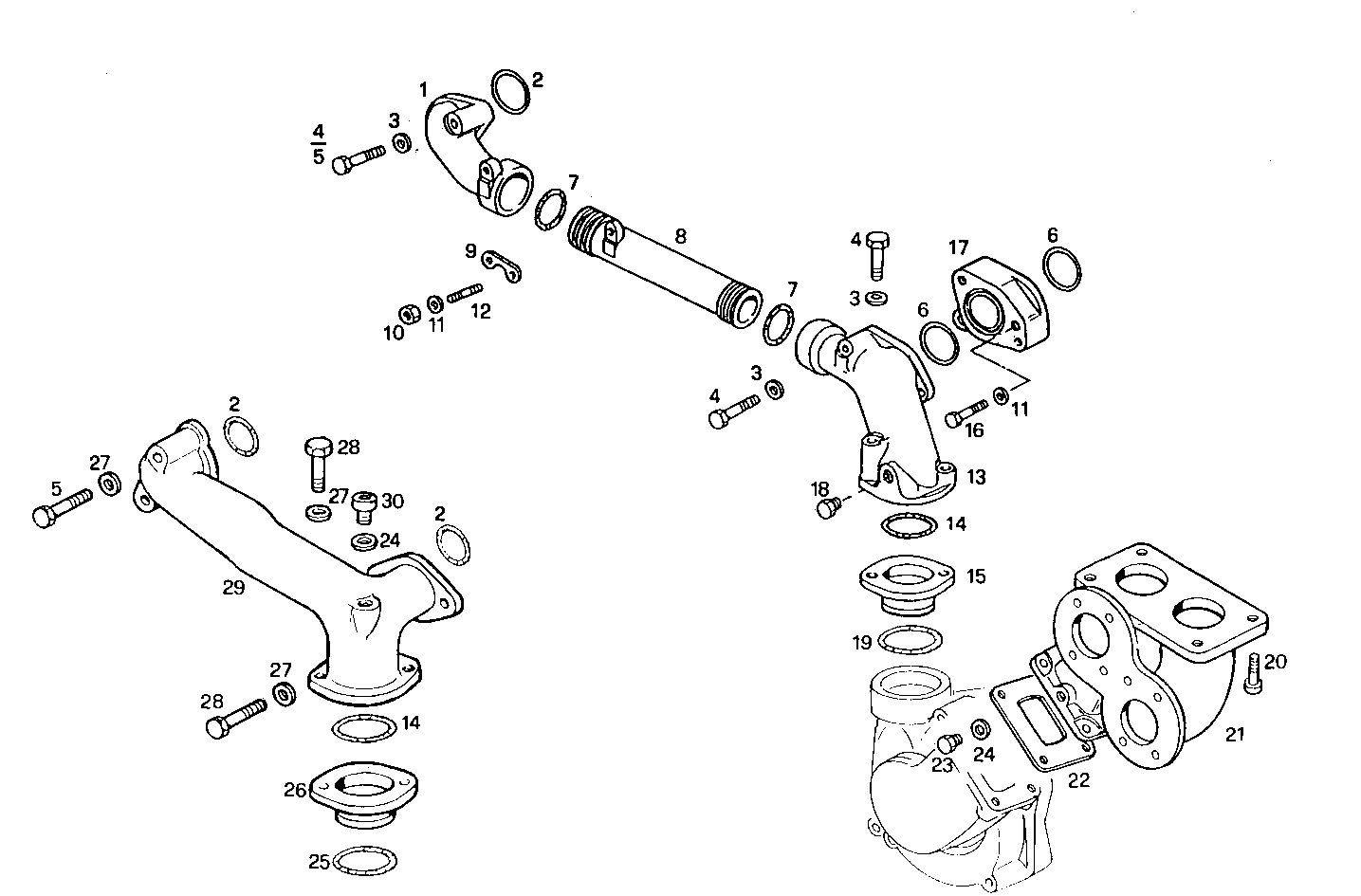

WATER LINES
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019780 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 17283981 | O-RING O-RING | 4 | |
| 3 | 17094904 | WASHER WASHER | 6 | |
| 4 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 5 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17284981 | O-RING O-RING | 2 | |
| 7 | 17289981 | O-RING O-RING | 4 | |
| 8 | 8019730 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8019781 | PLATE PLATE | 1 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 17094904 | WASHER WASHER | 2 | |
| 12 | 16729224 | STUD STUD | 2 | |
| 13 | 8019782 | WATER PIPE WATER PIPE | 1 | |
| 14 | 17290581 | O-RING O-RING | 2 | |
| 15 | 8026630 | FLANGE FLANGE | 1 | |
| 16 | 16690924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 17 | 8019727 | FLANGE FLANGE | 1 | |
| 18 | 4882217 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 17296381 | O-RING O-RING | 1 | |
| 20 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 21 | 8013446 | WATER CONVEYOR WATER CONVEYOR | 1 | |
| 22 | 8010667 | GASKET GASKET | 1 | |
| 23 | 16992540 | PLUG PLUG | 1 | |
| 24 | 4858610 | WASHER WASHER | 2 | |
| 25 | 17296381 | O-RING O-RING | 1 | |
| 26 | 4882245 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 27 | 17094914 | WASHER WASHER | 6 | |
| 28 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 29 | 4882275 | WATER PIPE WATER PIPE | 1 | |
| 30 | 16993311 | THREADED PLUG THREADED PLUG | 1 |
