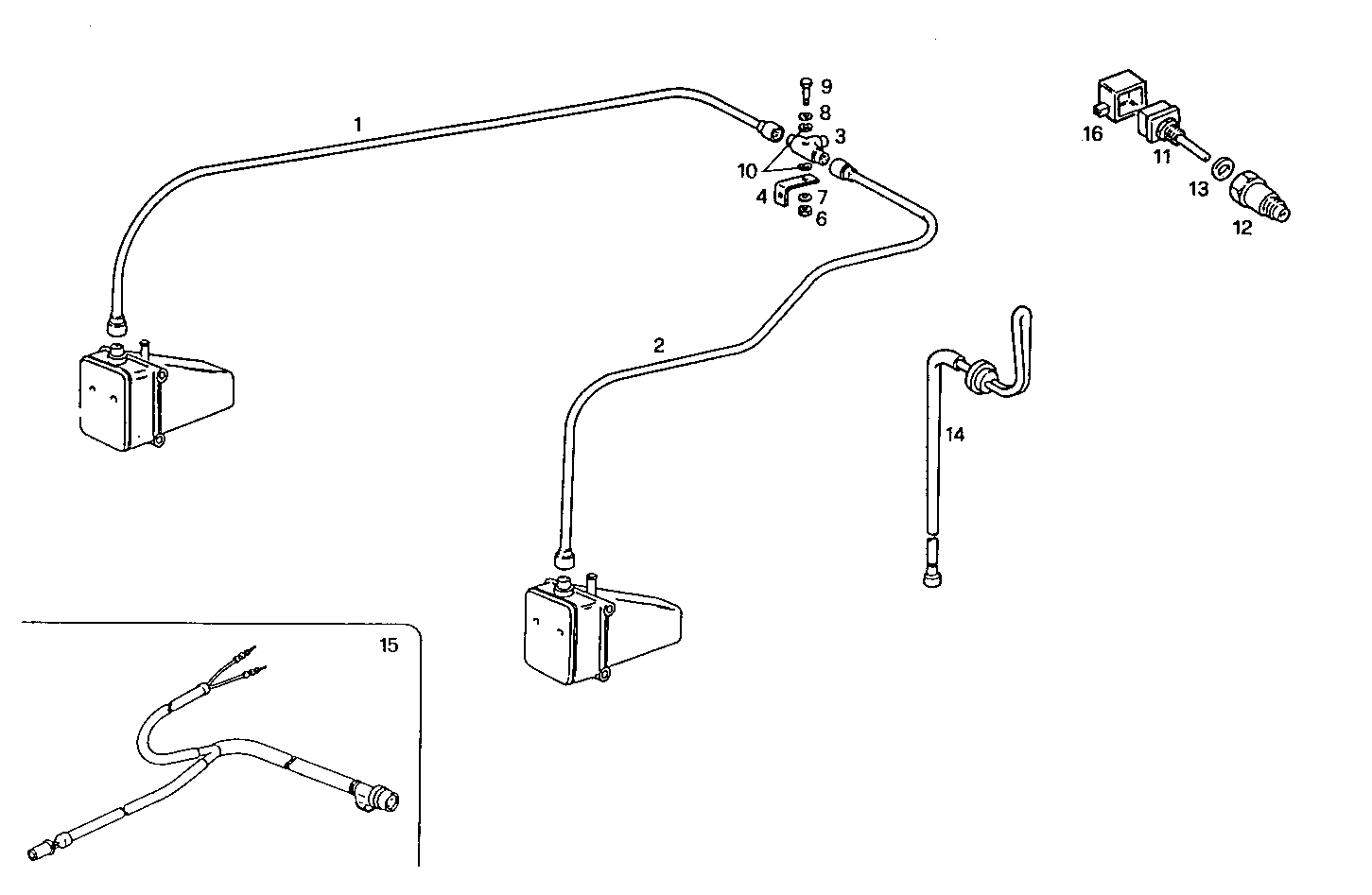

WATER PREHEATER DEVICE - 220V
8291SRi15.00 — 8291SRi15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112321 | WIRE/CABLE WIRE/CABLE | 2 | |
| 2 | 8112322 | WIRE/CABLE WIRE/CABLE | 2 | |
| 3 | 8111867 | CONNECTION CONNECTION | 2 | |
| 4 | 8104447 | RETAINER RETAINER | 2 | |
| 6 | 17152621 | NUT NUT | 2 | |
| 7 | 17494634 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 17094714 | WASHER WASHER | 2 | |
| 9 | 10978521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17094504 | WASHER WASHER | 4 | |
| 11 | 8017120 | THERMOSTAT THERMOSTAT | 2 | |
| 12 | 8017119 | SPACING BAR SPACING BAR | 2 | |
| 13 | 4858610 | WASHER WASHER | 2 | |
| 14 | 8023335 | RESISTOR RESISTOR | 4 | |
| 15 | 8023372 | ENGINE HARNESS ENGINE HARNESS | 2 | |
| 16 | 8021565 | CAP CAP | 2 |
