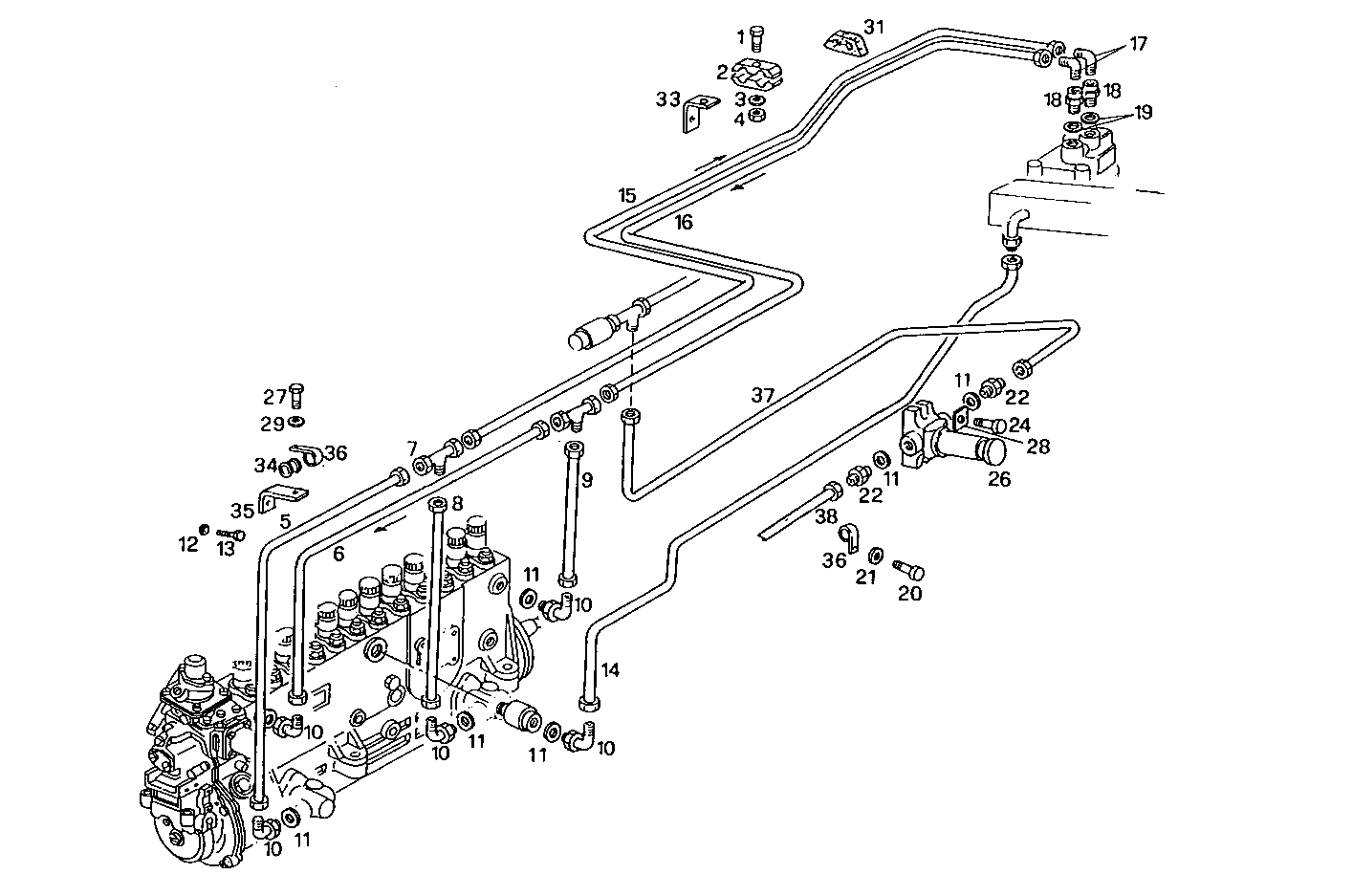

FUEL LINES
8291SRM12.12 — 8291SRM12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 8010505 | CLAMP CLAMP | 5 | |
| 3 | 17094914 | WASHER WASHER | 3 | |
| 4 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 5 | 8018870 | FUEL LINE FUEL LINE | 1 | |
| 6 | 8020663 | FUEL LINE FUEL LINE | 1 | |
| 7 | 16605924 | SCREW SCREW | 1 | |
| 8 | 8018871 | FUEL LINE FUEL LINE | 1 | |
| 9 | 8020664 | FUEL LINE FUEL LINE | 1 | |
| 10 | 8025927 | ELBOW COUPLING ELBOW COUPLING | 4 | |
| 11 | 4858608 | SEAL GASKET SEAL GASKET | 8 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 13 | 16605424 | SCREW SCREW | 1 | |
| 14 | 8021343 | INJECTION LINE INJECTION LINE | 1 | |
| 15 | 8020641 | FUEL LINE FUEL LINE | 1 | |
| 16 | 8020642 | FUEL LINE FUEL LINE | 1 | |
| 17 | 16512111 | PIPE SOCKET PIPE SOCKET | 4 | |
| 18 | 8010452 | PIPE SOCKET PIPE SOCKET | 2 | |
| 19 | 10303460 | SEAL GASKET SEAL GASKET | 2 | |
| 20 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 21 | 17088474 | WASHER WASHER | 3 | |
| 22 | 16500214 | THREADED UNION THREADED UNION | 2 | |
| 24 | 16603824 | SCREW SCREW | 2 | |
| 25 | 17088974 | SPRING WASHER SPRING WASHER | 4 | |
| 26 | 4797319 | HAND PUMP HAND PUMP | 1 | |
| 27 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 28 | 11351379 | PLATE PLATE | 2 | |
| 29 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 31 | 4696015 | RUBBER PAD RUBBER PAD | 12 | |
| 33 | 8107409 | RETAINER RETAINER | 1 | |
| 34 | 8011236 | RUBBER PAD RUBBER PAD | 3 | |
| 35 | 8005101 | RETAINER RETAINER | 1 | |
| 36 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 3 | |
| 37 | 8020661 | FUEL LINE FUEL LINE | 1 | |
| 38 | 8020662 | FUEL LINE FUEL LINE | 1 |
