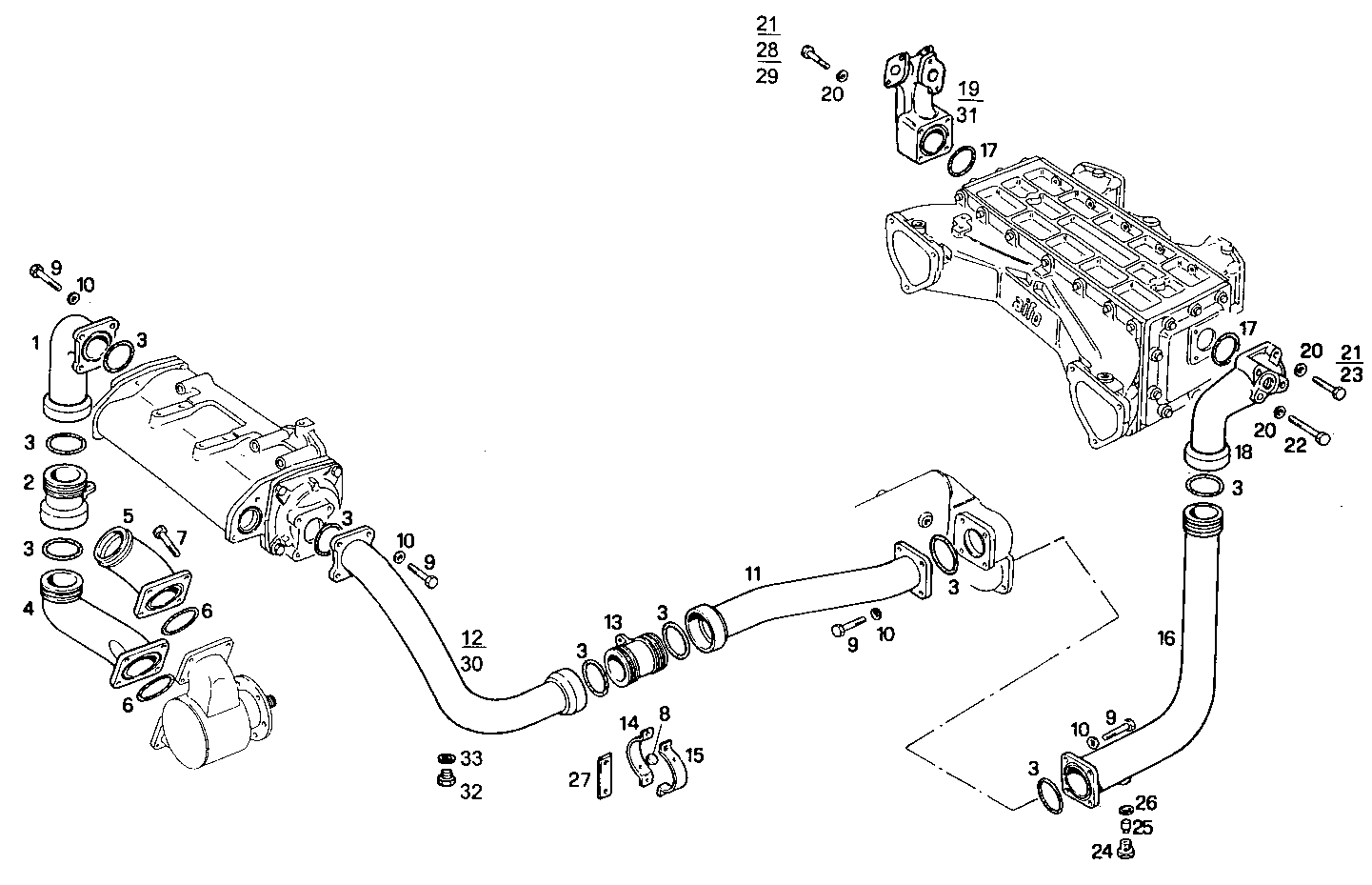

SEA WATER LINES

8291SRM12.12 — 8291SRM12

Parts List

#	Part No	Name / Description	Qty
1	8010568	WATER PIPE WATER PIPE	1
2	8010567	SPACING BAR SPACING BAR	2
3	17290481	O-RING O-RING	16
4	8010715	WATER PIPE WATER PIPE	1
5	8010688	WATER PIPE WATER PIPE	1
6	17290781	O-RING O-RING	2
7	8014453	SCREW SCREW	8
8	1366290	RUBBER PAD RUBBER PAD	8
9	16605624	HEXAGON BOLT HEXAGON BOLT	16
10	17089474	SPRING WASHER SPRING WASHER	16
11	8014933	WATER PIPE WATER PIPE	1
12	8010438	WATER PIPE WATER PIPE	1
13	8010462	SPACING BAR SPACING BAR	1
14	8011429	CLAMP CLAMP	2
15	8011430	CLAMP CLAMP	2
16	8014937	WATER PIPE WATER PIPE	1
17	17290281	O-RING O-RING	2
18	8012415	INTAKE ELBOW INTAKE ELBOW	1
19	8014913	WATER PIPE WATER PIPE	1
20	17101634	SPRING WASHER SPRING WASHER	8
21	16693224	SCREW SCREW	6
22	16692824	CYLIND-HEAD SCREW CYLIND-HEAD SCREW	4
23	16693024	SCREW SCREW	2
24	8101771	PLUG PLUG	1
25	8101772	SACRIFICAL ANODE SACRIFICAL ANODE	1
26	10296260	SEAL GASKET SEAL GASKET	1
27	8011592	RETAINER RETAINER	1
28	16692424	CYLIND-HEAD SCREW CYLIND-HEAD SCREW	2
29	16693324	SCREW SCREW	2
30	8019981	WATER PIPE WATER PIPE	1
31	8017650	WATER PIPE WATER PIPE	1
32	16992440	THREADED PLUG THREADED PLUG	1
33	4858609	WASHER WASHER	1
