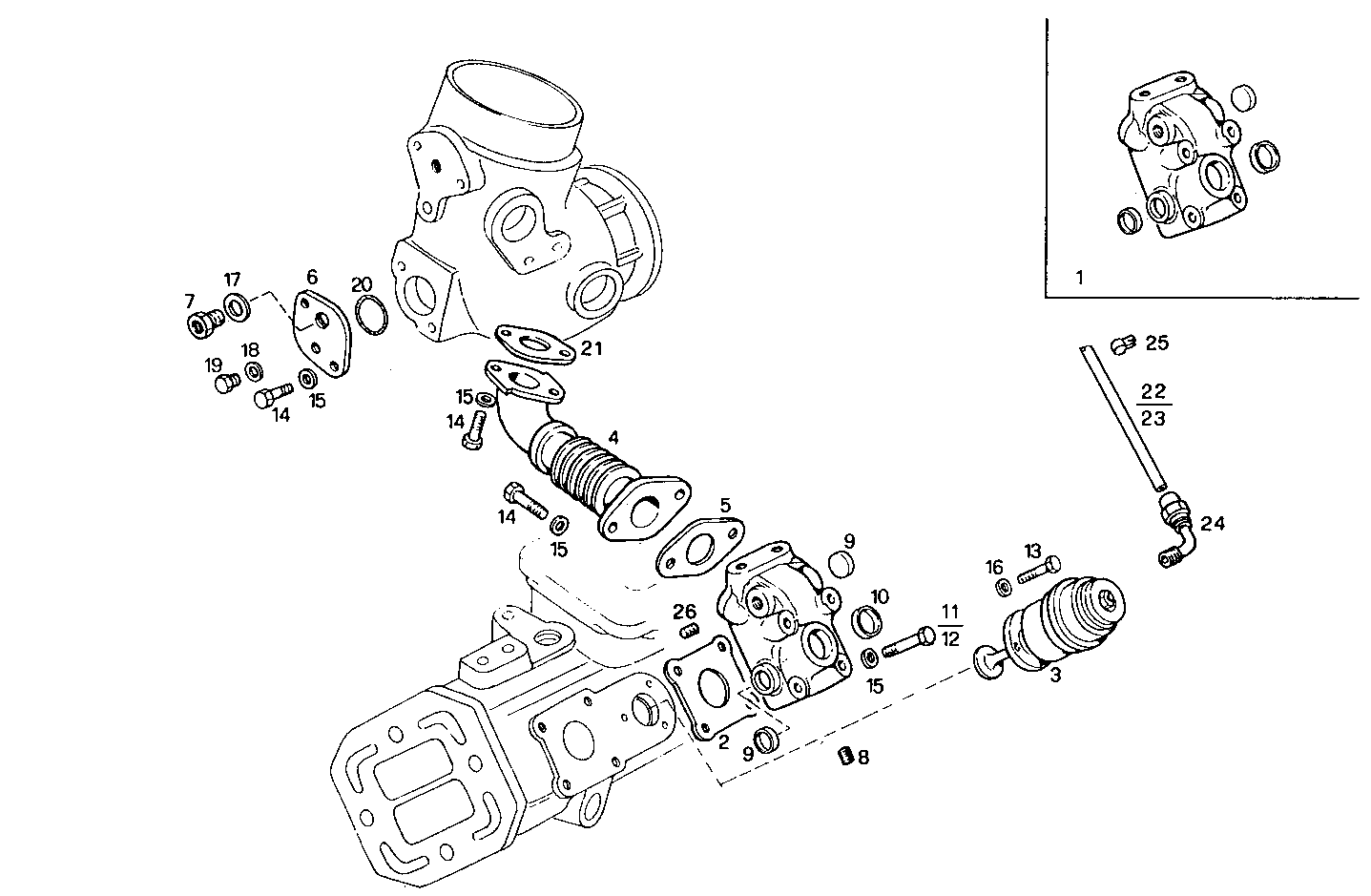

TURBOCHARGER

8291SRM12.12 — 8291SRM12

Parts List

#	Part No	Name / Description	Qty
1	8015694	EXHAUST ELBOW EXHAUST ELBOW	2
2	8015602	GASKET GASKET	2
3	8016774	VALVE VALVE	2
4	8021314	EXHAUST ELBOW EXHAUST ELBOW	2
5	8015772	GASKET GASKET	2
6	8015297	COVER COVER	2
7	16993511	LOCK PLUG LOCK PLUG	2
8	16997711	LOCK PLUG LOCK PLUG	2
9	16990570	LOCK PLUG LOCK PLUG	4
10	16990870	LOCK PLUG LOCK PLUG	2
11	16606224	HEXAGON BOLT HEXAGON BOLT	4
12	16606724	HEXAGON BOLT HEXAGON BOLT	4
13	16689134	SOCKET-HEAD SCREW SOCKET-HEAD SCREW	6
14	16605624	HEXAGON BOLT HEXAGON BOLT	12
15	17089474	SPRING WASHER SPRING WASHER	20
16	17101434	SPRING WASHER SPRING WASHER	6
17	10296260	SEAL GASKET SEAL GASKET	2
18	4858608	SEAL GASKET SEAL GASKET	2
19	16992340	THREADED PLUG THREADED PLUG	2
20	17280381	O-RING O-RING	2
21	8021305	GASKET GASKET	2
22	8016763	AIR PIPE/DUCT AIR PIPE/DUCT	1
23	8016764	AIR PIPE/DUCT AIR PIPE/DUCT	1
24	8111261	PIPE SOCKET PIPE SOCKET	2
25	4656139	FASTENING BRACKET FASTENING BRACKET	4
26	16997311	PLUG PLUG	2
