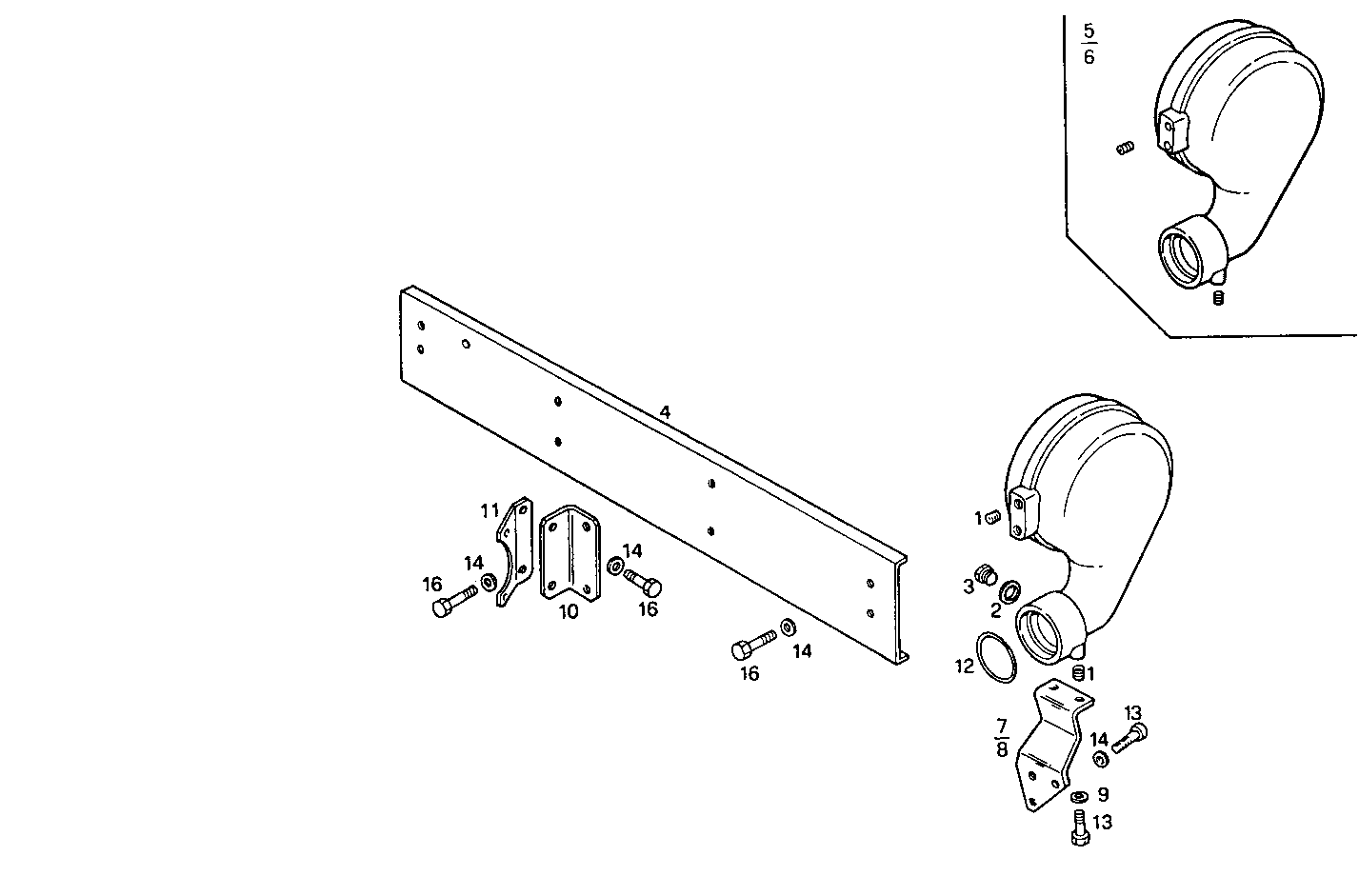

AIR CLEANER
8291SRM12.12A001 — 8291SRM12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17873271 | THREADED INSERT THREADED INSERT | 8 | |
| 2 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 3 | 16992311 | LOCK PLUG LOCK PLUG | 2 | |
| 4 | 8009174 | SUPPORT SUPPORT | 1 | |
| 5 | 8009100 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 6 | 8009102 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 7 | 8009172 | SUPPORT SUPPORT | 1 | |
| 8 | 8009173 | SUPPORT SUPPORT | 1 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 10 | 8009176 | RETAINER RETAINER | 2 | |
| 11 | 8009177 | RETAINER RETAINER | 2 | |
| 12 | 17291081 | O-RING O-RING | 2 | |
| 13 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 14 | 17089774 | SPRING WASHER SPRING WASHER | 14 |
