INSTRUMENTS

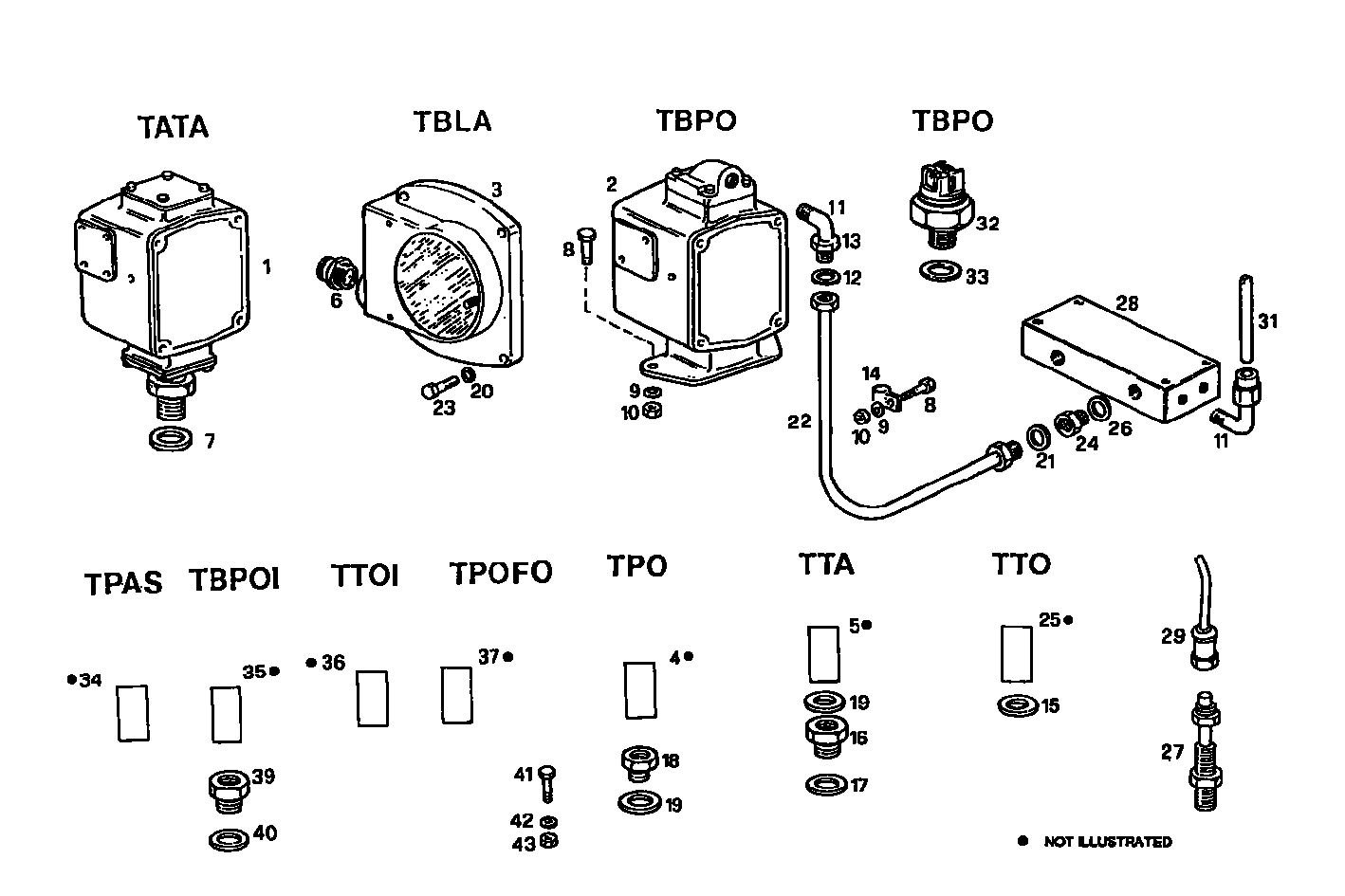

8291SRM12.12A001 — 8291SRM12

Parts List

#	Part No	Name / Description	Qty
1	8110742	TRANSMITTER TRANSMITTER	1
2	8110741	TRANSMITTER TRANSMITTER	1
3	8020320	TRANSMITTER TRANSMITTER	1
4	8020703	TRANSMITTER TRANSMITTER	2
5	8020701	TRANSMITTER TRANSMITTER	4
6	8113194	CONNECTION CONNECTION	1
7	11271460	GASKET GASKET	1
8	16603724	HEXAGON BOLT HEXAGON BOLT	3
9	17088474	WASHER WASHER	3
10	17037821	HEXAGON NUT HEXAGON NUT	3
11	8111261	PIPE SOCKET PIPE SOCKET	3
12	4858607	WASHER WASHER	2
14	17316190	PIPE CLIP PIPE CLIP	2
16	4919578	PIPE SOCKET PIPE SOCKET	2
17	10263460	WASHER WASHER	2
18	8022317	PIPE SOCKET PIPE SOCKET	2
19	4858609	WASHER WASHER	3
20	17101334	SPRING WASHER SPRING WASHER	4
22	8020723	OIL LINE OIL LINE	1
23	16688077	SCREW SCREW	4
24	16500014	THREADED UNION THREADED UNION	2
25	8020702	TRANSMITTER TRANSMITTER	1
26	4858606	GASKET GASKET	3
27	8018673	PICK-UP PICK-UP	1
28	8021839	DISTRIBUTOR DISTRIBUTOR	1
29	8021856	HOSE HOSE	1
31	8021856	HOSE HOSE	2
32	8114030	TRANSMITTER TRANSMITTER	1
33	4858610	WASHER WASHER	1
34	8020704	TRANSMITTER TRANSMITTER	1
35	8020705	TRANSMITTER TRANSMITTER	1
36	8020706	TRANSMITTER TRANSMITTER	1
37	8017186	TRANSMITTER TRANSMITTER	1
39	8023706	PIPE SOCKET PIPE SOCKET	1
40	10303460	SEAL GASKET SEAL GASKET	1
41	17132214	SCREW SCREW	2
42	17101334	SPRING WASHER SPRING WASHER	2
43	17037721	NUT NUT	2
