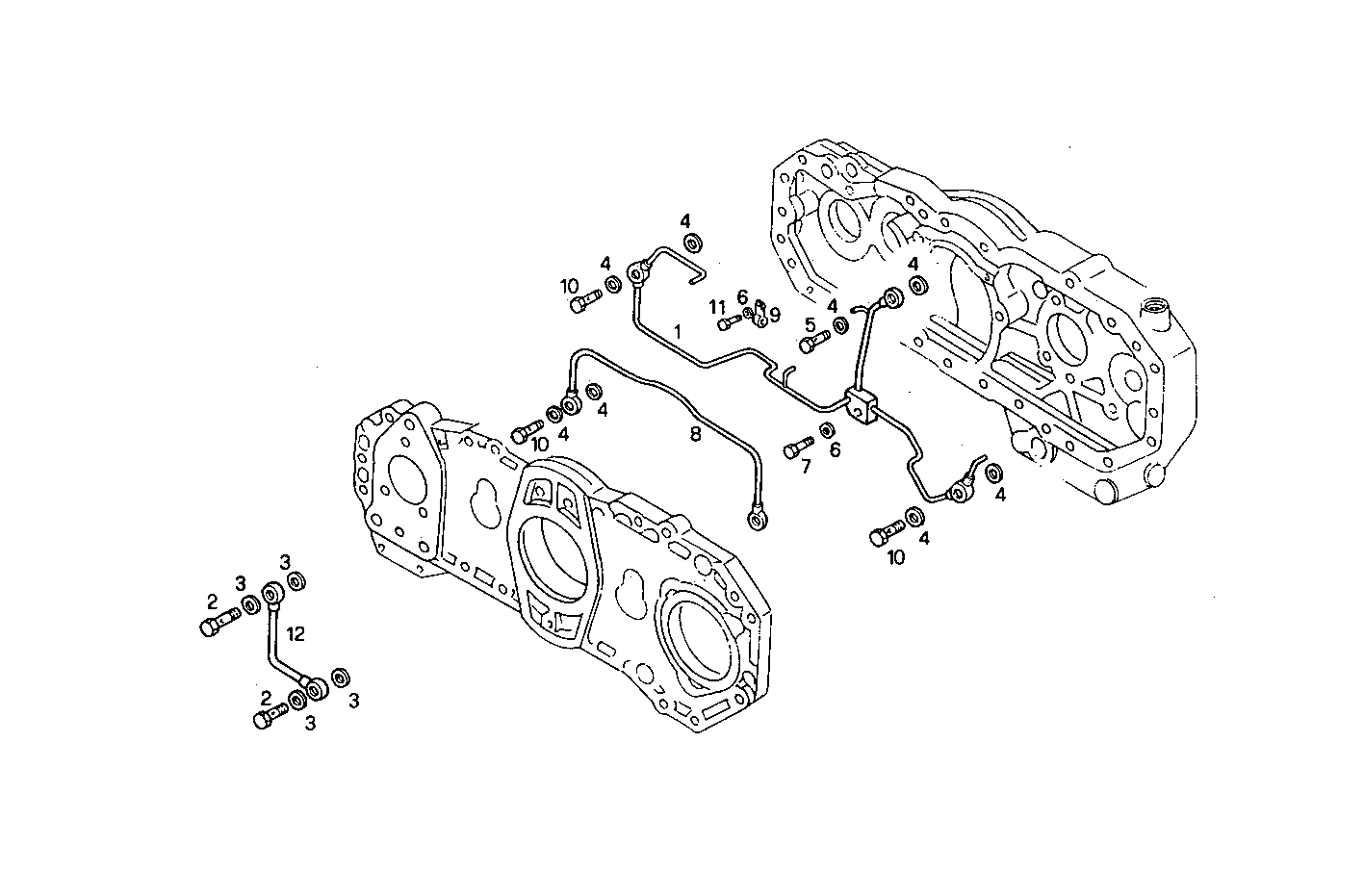

LUBE OIL LINES
8291SRM12.12A001 — 8291SRM12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012850 | OIL LINE OIL LINE | 1 | |
| 2 | 4864084 | BANJO BOLT BANJO BOLT | 4 | |
| 3 | 98474309 | WASHER WASHER | 8 | |
| 4 | 98474305 | WASHER WASHER | 4 | |
| 5 | 4795453 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 6 | 17094714 | WASHER WASHER | 5 | |
| 7 | 16603824 | SCREW SCREW | 1 | |
| 8 | 8012847 | OIL LINE OIL LINE | 1 | |
| 9 | 4791489 | CLIP CLIP | 4 | |
| 10 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 11 | 16603524 | SCREW SCREW | 2 | |
| 12 | 8013966 | OIL LINE OIL LINE | 1 |
