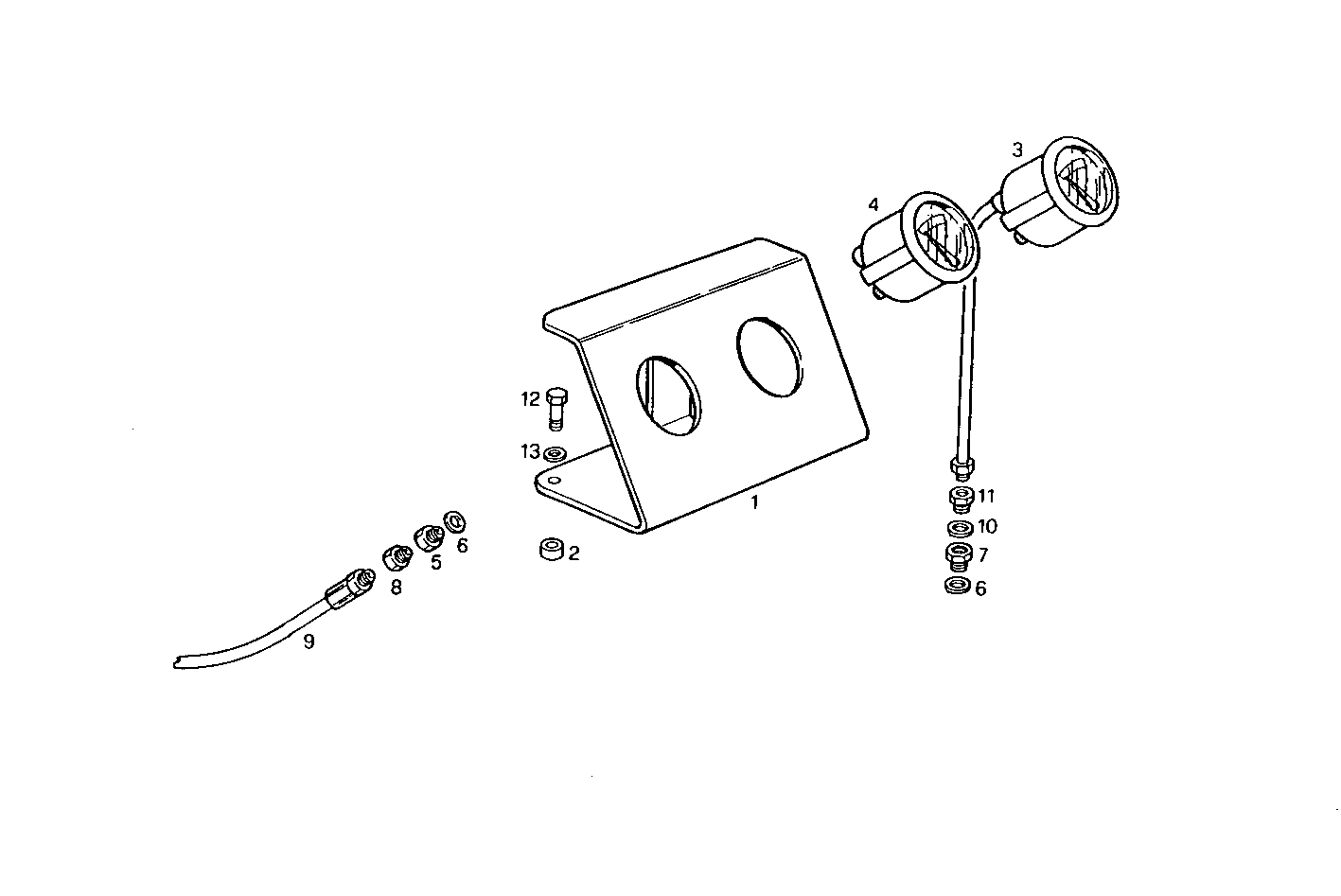

PANEL WITH ELECTRICAL INSTRUMENTS
8291SRM12.12A001 — 8291SRM12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8028091 | SUPPORT SUPPORT | 1 | |
| 2 | 17814711 | SPACING BAR SPACING BAR | 4 | |
| 3 | 4936123 | PRESSURE GAUGE PRESSURE GAUGE | 1 | |
| 4 | 4132980 | THERMOMETER THERMOMETER | 1 | |
| 5 | 4919578 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 4858609 | WASHER WASHER | 2 | |
| 7 | 8011514 | THREADED UNION THREADED UNION | 1 | |
| 8 | 4916203 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 8024896 | HOSE HOSE | 1 | |
| 10 | 4858606 | GASKET GASKET | 1 | |
| 11 | 16500011 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 13 | 17088974 | SPRING WASHER SPRING WASHER | 4 |
