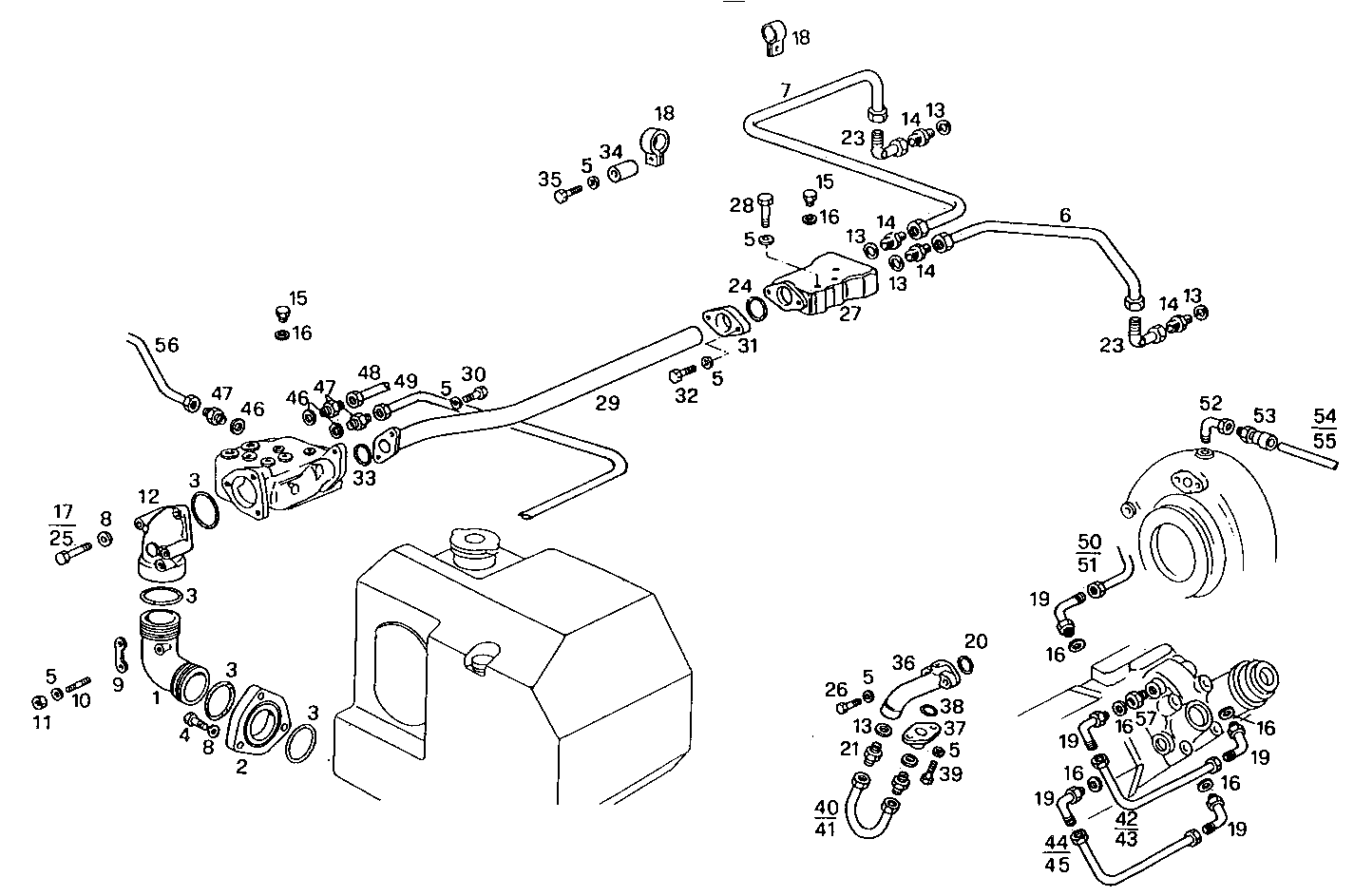

WATER LINES

8291SRM12.12A001 — 8291SRM12

Parts List

#	Part No	Name / Description	Qty
1	8020498	WATER PIPE WATER PIPE	1
2	8009252	FLANGE FLANGE	2
3	17290581	O-RING O-RING	6
4	16606024	SCREW SCREW	6
5	17089474	SPRING WASHER SPRING WASHER	9
6	8020648	WATER PIPE WATER PIPE	1
7	8023033	WATER PIPE WATER PIPE	1
8	17094914	WASHER WASHER	6
9	8019781	PLATE PLATE	1
10	16729224	STUD STUD	2
11	17037931	HEXAGON NUT HEXAGON NUT	2
12	8020497	WATER PIPE WATER PIPE	1
13	98429282	SEAL GASKET SEAL GASKET	4
14	8110943	PIPE SOCKET PIPE SOCKET	4
15	16992411	THREADED PLUG THREADED PLUG	2
16	4858608	SEAL GASKET SEAL GASKET	11
17	16605924	SCREW SCREW	1
18	8010597	RETAINER RETAINER	3
19	8025927	ELBOW COUPLING ELBOW COUPLING	9
20	17279381	O-RING O-RING	2
21	8110943	PIPE SOCKET PIPE SOCKET	4
22	16606624	HEXAGON BOLT HEXAGON BOLT	3
23	16526514	ELBOW COUPLING ELBOW COUPLING	3
24	17283381	O-RING O-RING	2
26	16691024	CYLIND-HEAD SCREW CYLIND-HEAD SCREW	4
27	8020580	WATER PIPE WATER PIPE	1
28	16606524	HEXAGON BOLT HEXAGON BOLT	2
29	8020585	WATER PIPE WATER PIPE	1
30	16605624	HEXAGON BOLT HEXAGON BOLT	2
31	8020582	FLANGE FLANGE	1
32	16606124	HEXAGON BOLT HEXAGON BOLT	2
33	17289481	O-RING O-RING	2
34	8021208	SPACING BAR SPACING BAR	1
35	16605424	SCREW SCREW	1
36	8020411	WATER PIPE WATER PIPE	2
37	8020437	FLANGE FLANGE	4
38	8026100	O-RING O-RING	4
39	16605624	HEXAGON BOLT HEXAGON BOLT	8
40	8020418	WATER PIPE WATER PIPE	1
41	8020436	WATER PIPE WATER PIPE	1
42	8016714	WATER PIPE WATER PIPE	1
43	8016717	WATER PIPE WATER PIPE	1
44	8016713	WATER PIPE WATER PIPE	1
45	8016716	WATER PIPE WATER PIPE	1
46	4858607	WASHER WASHER	3
47	16500111	THREADED UNION THREADED UNION	3
48	8020668	WATER PIPE WATER PIPE	1
49	8020670	WATER PIPE WATER PIPE	1
50	8021689	WATER PIPE WATER PIPE	1
51	8016715	WATER PIPE WATER PIPE	1
52	8111261	PIPE SOCKET PIPE SOCKET	1
53	8111316	PIPE SOCKET PIPE SOCKET	2
54	8021846	AIR PIPE/DUCT AIR PIPE/DUCT	1
55	8021847	AIR PIPE/DUCT AIR PIPE/DUCT	1
56	8020669	WATER PIPE WATER PIPE	1
57	16500214	THREADED UNION THREADED UNION	3
