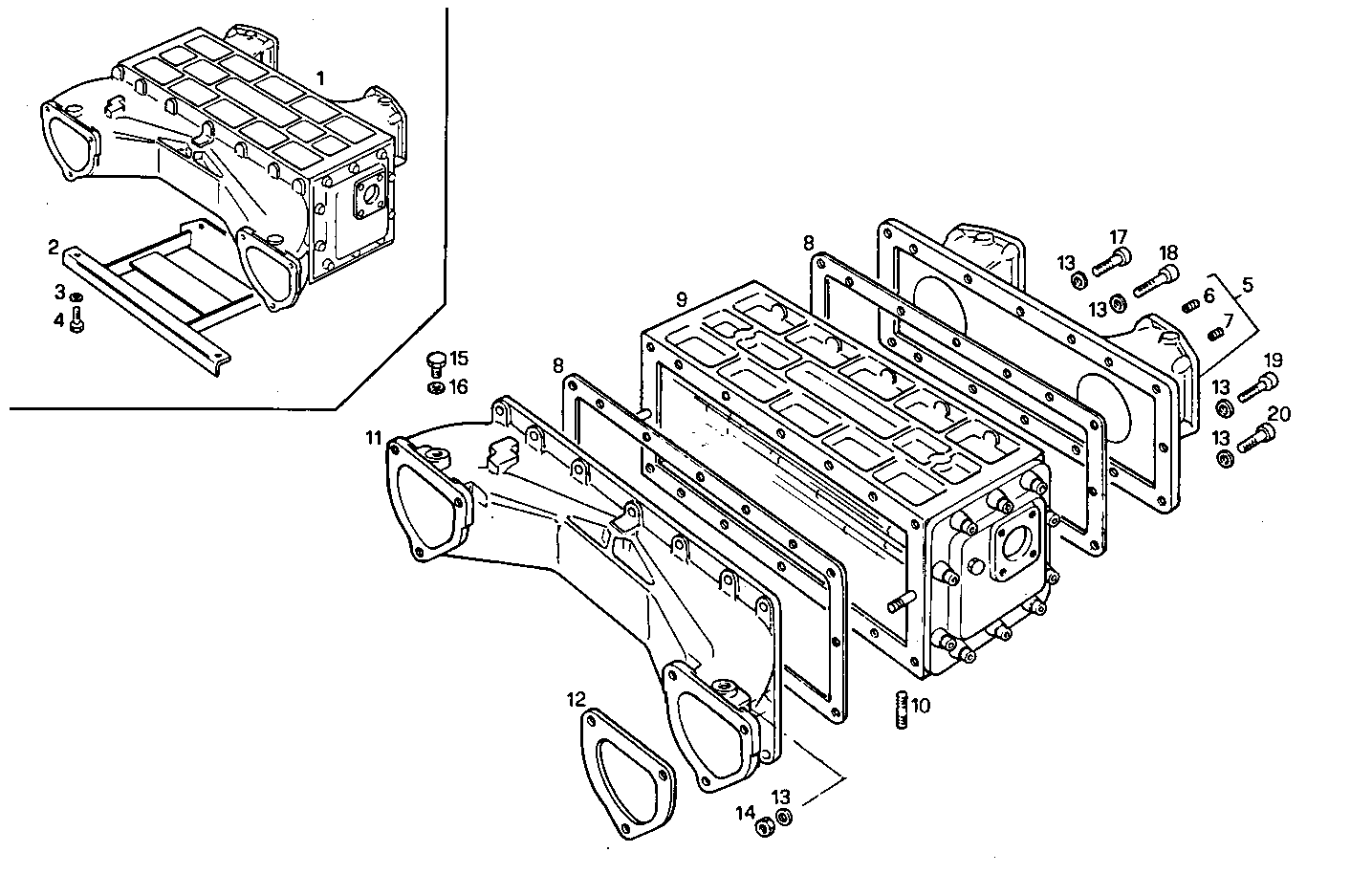

AIR - WATER HEAT EXCHANGER
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010075 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 2 | 8009682 | RETAINER RETAINER | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 16607624 | SCREW SCREW | 2 | |
| 5 | 8010076 | AIR HOOD AIR HOOD | 1 | |
| 6 | 17873271 | THREADED INSERT THREADED INSERT | 8 | |
| 7 | 17873371 | THREADED INSERT THREADED INSERT | 4 | |
| 8 | 8008906 | GASKET GASKET | 2 | |
| 9 | 8114205 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 10 | 16729324 | STUD STUD | 2 | |
| 11 | 8103019 | AIR HOOD AIR HOOD | 1 | |
| 12 | 4786886 | GASKET GASKET | 2 | |
| 13 | 17094914 | WASHER WASHER | 32 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 16992311 | LOCK PLUG LOCK PLUG | 2 | |
| 16 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 17 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 18 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 17 | |
| 19 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 20 | 16606024 | SCREW SCREW | 2 |
