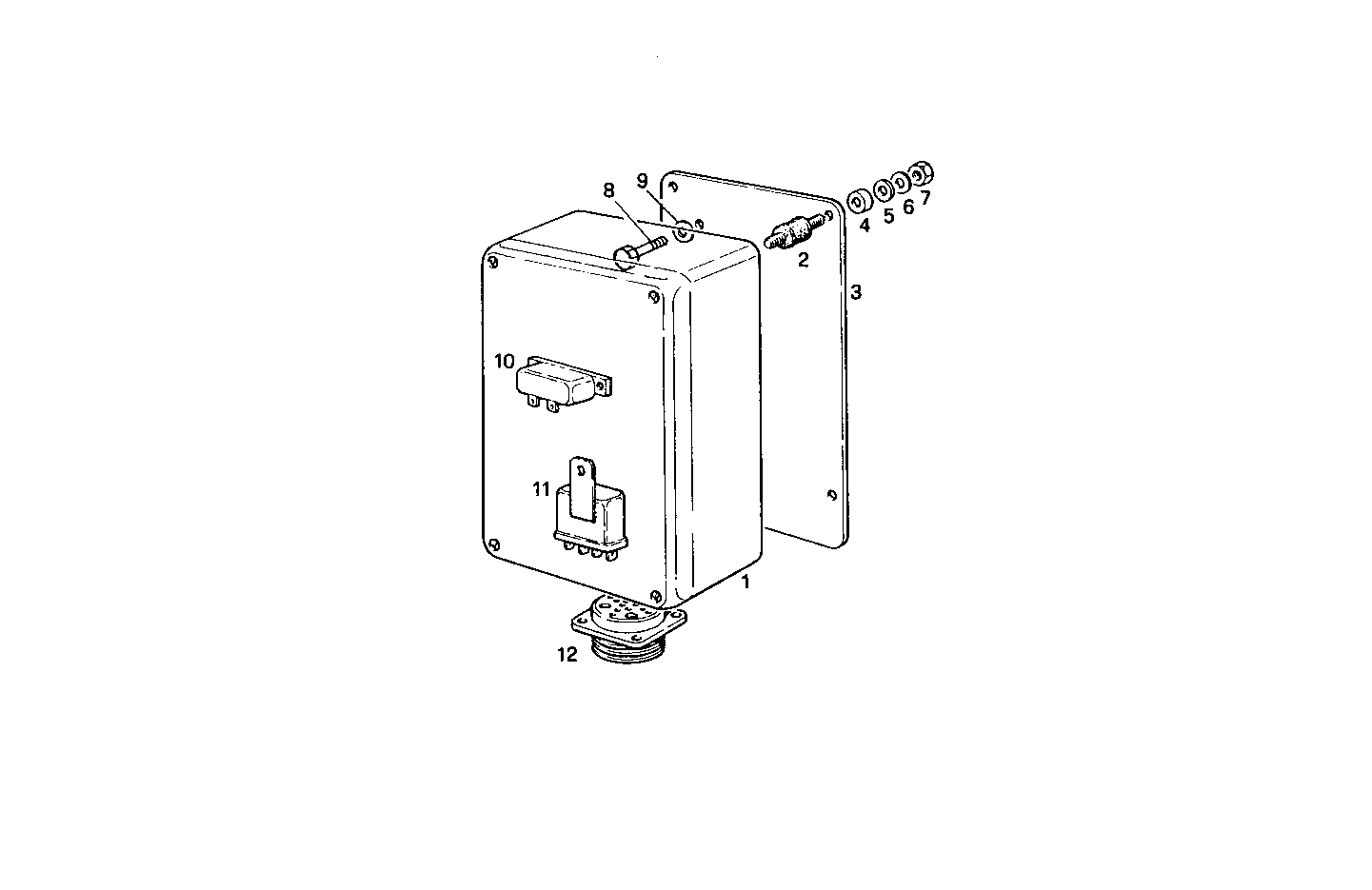

ELECTRIC STOP ENGINE
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009297 | INSTRUMENTS BOARD INSTRUMENTS BOARD | 1 | |
| 2 | 8018462 | RUBBER PAD RUBBER PAD | 4 | |
| 3 | 8011271 | SUPPORT SUPPORT | 1 | |
| 4 | 8011200 | SPACING BAR SPACING BAR | 4 | |
| 5 | 17094504 | WASHER WASHER | 4 | |
| 6 | 17708674 | WASHER WASHER | 4 | |
| 7 | 17037721 | NUT NUT | 4 | |
| 8 | 16606824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 8108575 | RELAY RELAY | 1 | |
| 11 | 8109519 | RELAY RELAY | 1 | |
| 12 | 8113170 | CONNECTION CONNECTION | 1 |
