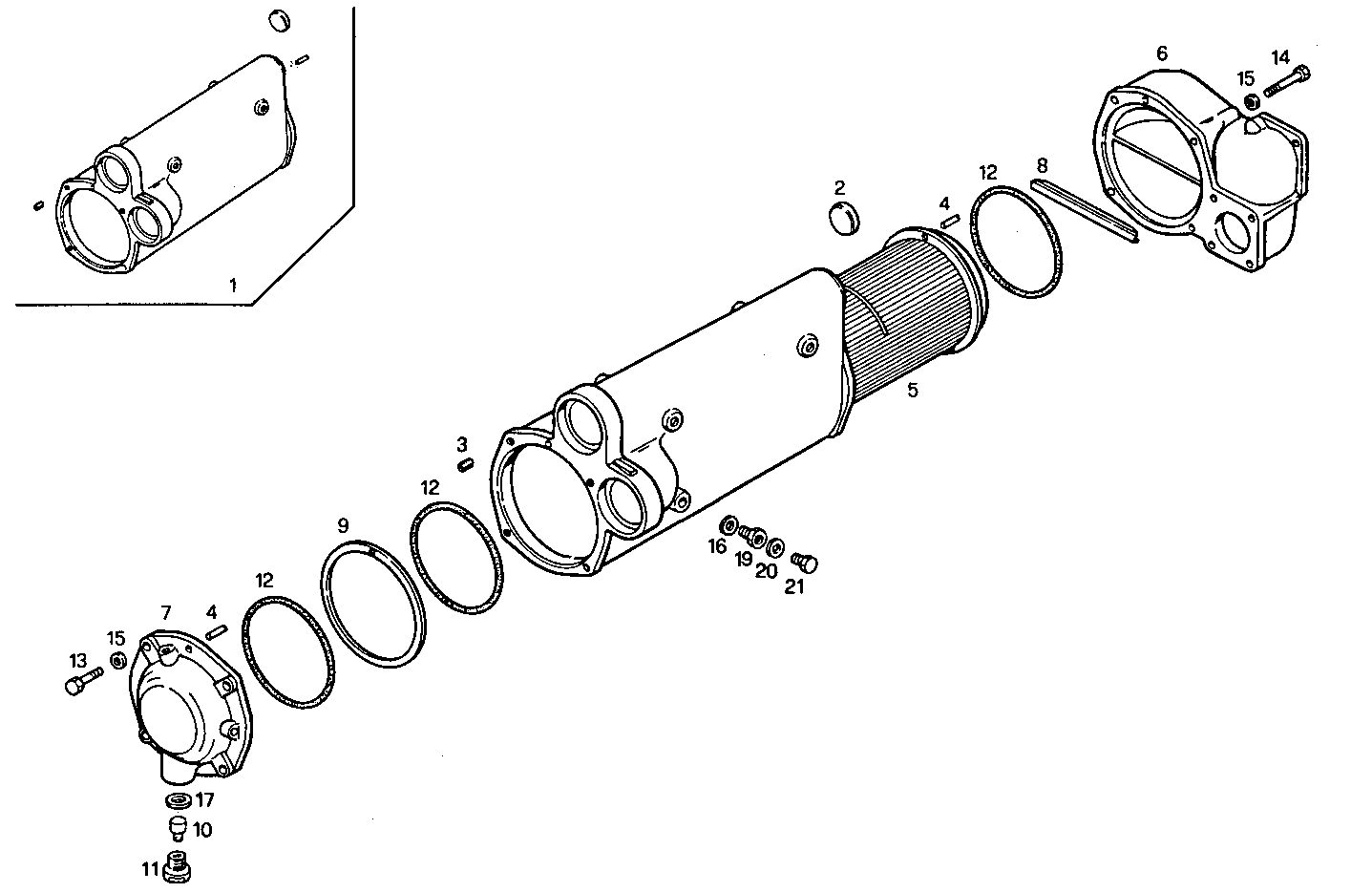

FRESH WATER - SEA WATER HEAT EXCHANGER
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009500 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 2 | 16991370 | LOCK PLUG LOCK PLUG | 1 | |
| 3 | 17873271 | THREADED INSERT THREADED INSERT | 8 | |
| 4 | 17236310 | PIN PIN | 2 | |
| 5 | 8020782 | TUBE STACK TUBE STACK | 1 | |
| 6 | 8009502 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 7 | 8009504 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 8 | 8110978 | GASKET GASKET | 1 | |
| 9 | 8009505 | SPACING BAR SPACING BAR | 1 | |
| 10 | 8101772 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 11 | 8101771 | PLUG PLUG | 1 | |
| 12 | 17293181 | O-RING O-RING | 4 | |
| 13 | 16605924 | SCREW SCREW | 6 | |
| 14 | 16606724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 17089474 | SPRING WASHER SPRING WASHER | 7 | |
| 16 | 98429282 | SEAL GASKET SEAL GASKET | 1 | |
| 17 | 10296260 | SEAL GASKET SEAL GASKET | 1 | |
| 19 | 8011536 | PIPE SOCKET PIPE SOCKET | 1 | |
| 20 | 4858609 | WASHER WASHER | 1 | |
| 21 | 16992340 | THREADED PLUG THREADED PLUG | 1 |
