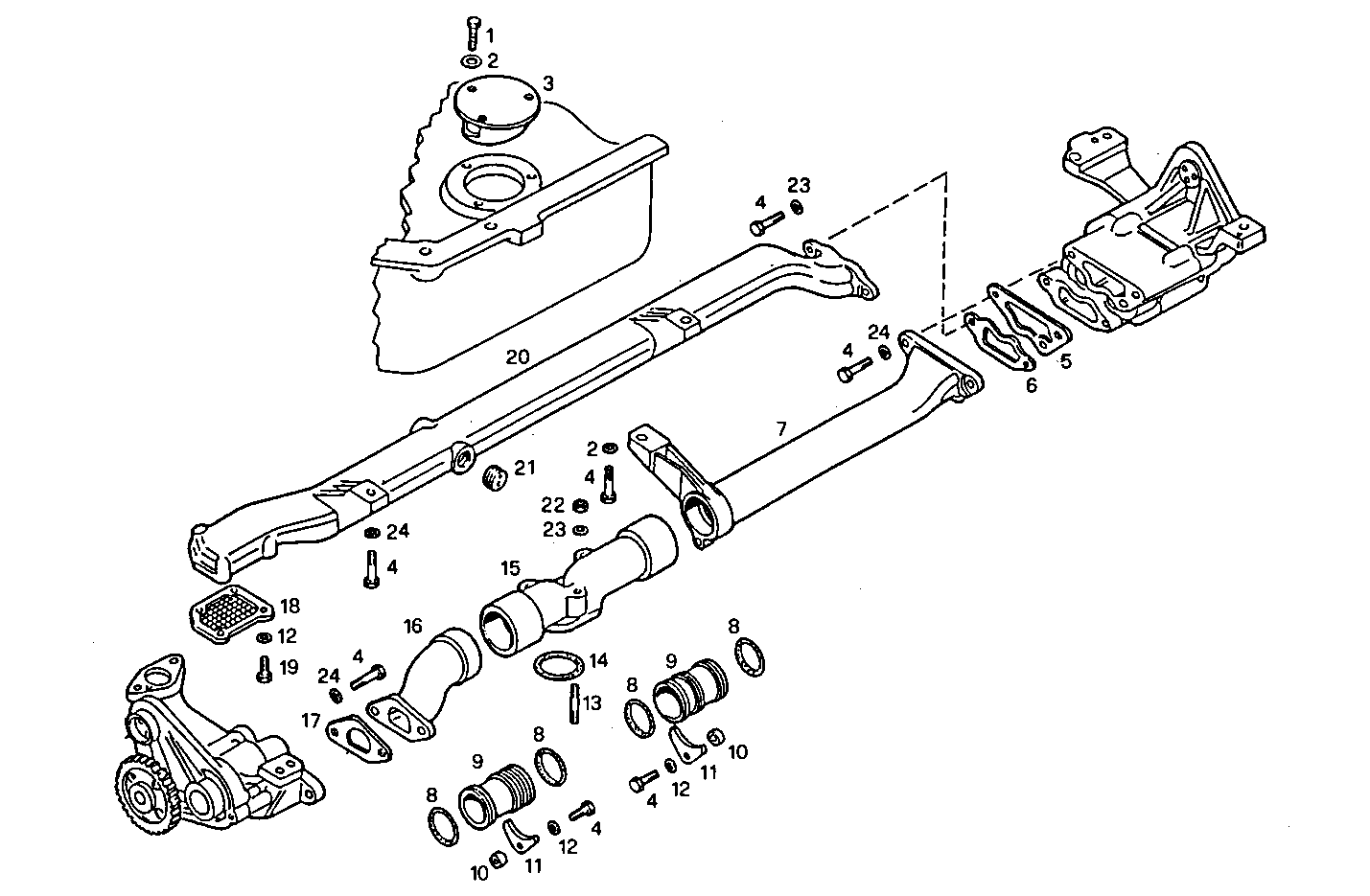

LUBE OIL LINES
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 10902024 | SCREW SCREW | 3 | |
| 2 | 14496404 | WASHER WASHER | 3 | |
| 3 | 4862141 | STRAINER STRAINER | 1 | |
| 4 | 16043724 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 5 | 4786892 | GASKET GASKET | 1 | |
| 6 | 4786891 | GASKET GASKET | 1 | |
| 7 | 4781868 | OIL LINE OIL LINE | 1 | |
| 8 | 14464480 | O-RING O-RING | 4 | |
| 9 | 4782002 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 2 | |
| 10 | 4791744 | SPACING BAR SPACING BAR | 2 | |
| 11 | 4781992 | PLATE PLATE | 2 | |
| 12 | 14496504 | WASHER WASHER | 4 | |
| 13 | 13543924 | STUD STUD | 3 | |
| 14 | 14459681 | WASHER WASHER | 2 | |
| 15 | 4782015 | OIL LINE OIL LINE | 1 | |
| 16 | 4782009 | SUCTION LINE SUCTION LINE | 1 | |
| 17 | 4786890 | GASKET GASKET | 1 | |
| 18 | 4786887 | STRAINER STRAINER | 1 | |
| 19 | 4813688 | SCREW SCREW | 4 | |
| 20 | 4863228 | OIL SUCTION PIPE OIL SUCTION PIPE | 1 | |
| 21 | 10269950 | LOCK PLUG LOCK PLUG | 4 | |
| 22 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 23 | 12646704 | WASHER WASHER | 7 | |
| 24 | 12646724 | WASHER WASHER | 8 |
