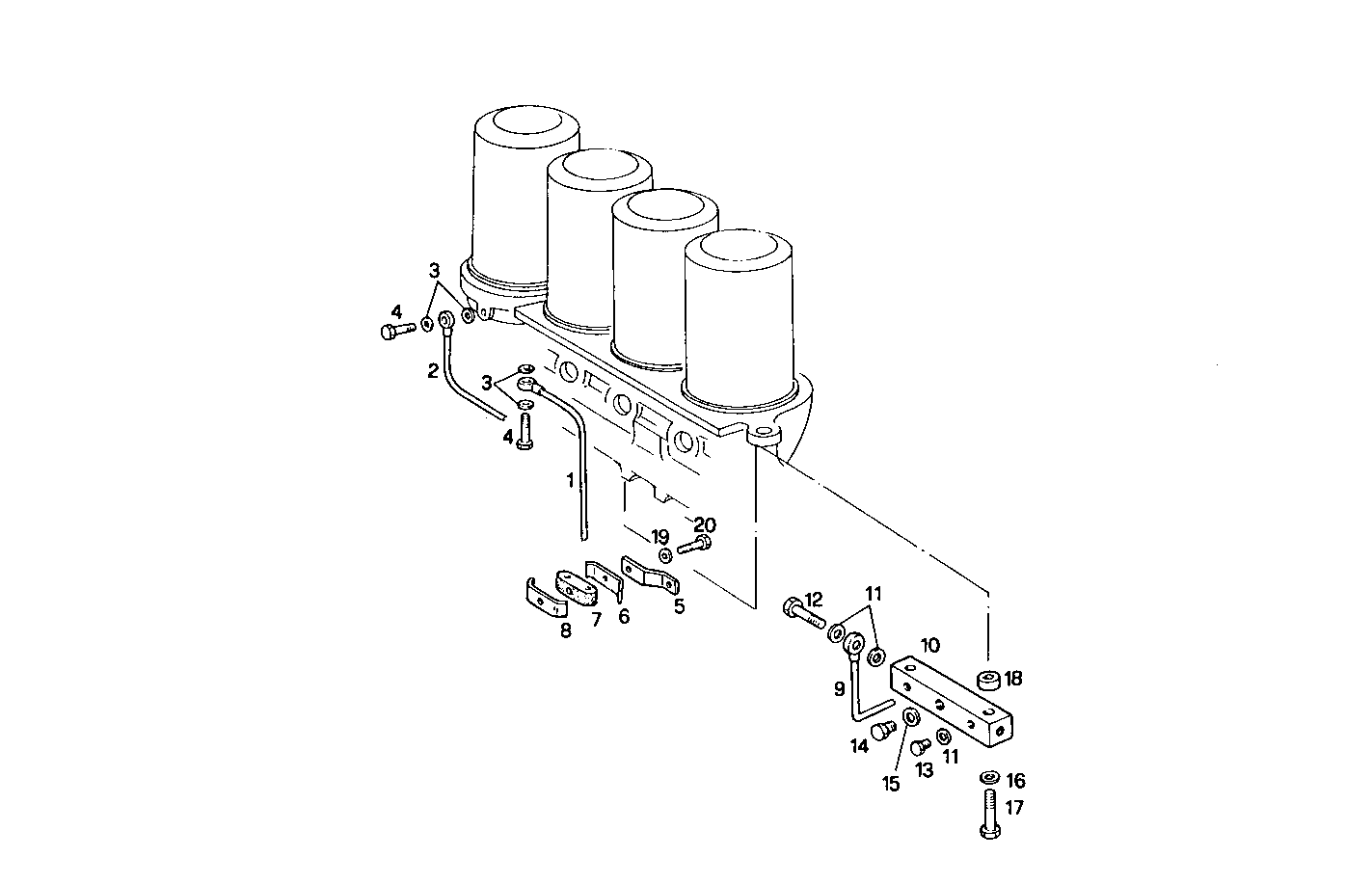

LUBE OIL LINES
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009885 | OIL LINE OIL LINE | 1 | |
| 2 | 8009884 | OIL LINE OIL LINE | 1 | |
| 3 | 4858608 | SEAL GASKET SEAL GASKET | 12 | |
| 4 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 6 | |
| 5 | 8008962 | RETAINER RETAINER | 1 | |
| 6 | 4644288 | CLIP CLIP | 1 | |
| 7 | 4871771 | RUBBER PAD RUBBER PAD | 1 | |
| 8 | 4644289 | CLIP CLIP | 1 | |
| 9 | 8009886 | OIL LINE OIL LINE | 1 | |
| 10 | 8011295 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 4858606 | GASKET GASKET | 11 | |
| 12 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 13 | 4753563 | PLUG PLUG | 3 | |
| 14 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 15 | 4858607 | WASHER WASHER | 2 | |
| 16 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 18 | 17816414 | SPACING BAR SPACING BAR | 2 | |
| 19 | 17088471 | SPRING WASHER SPRING WASHER | 3 | |
| 20 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 1 |
