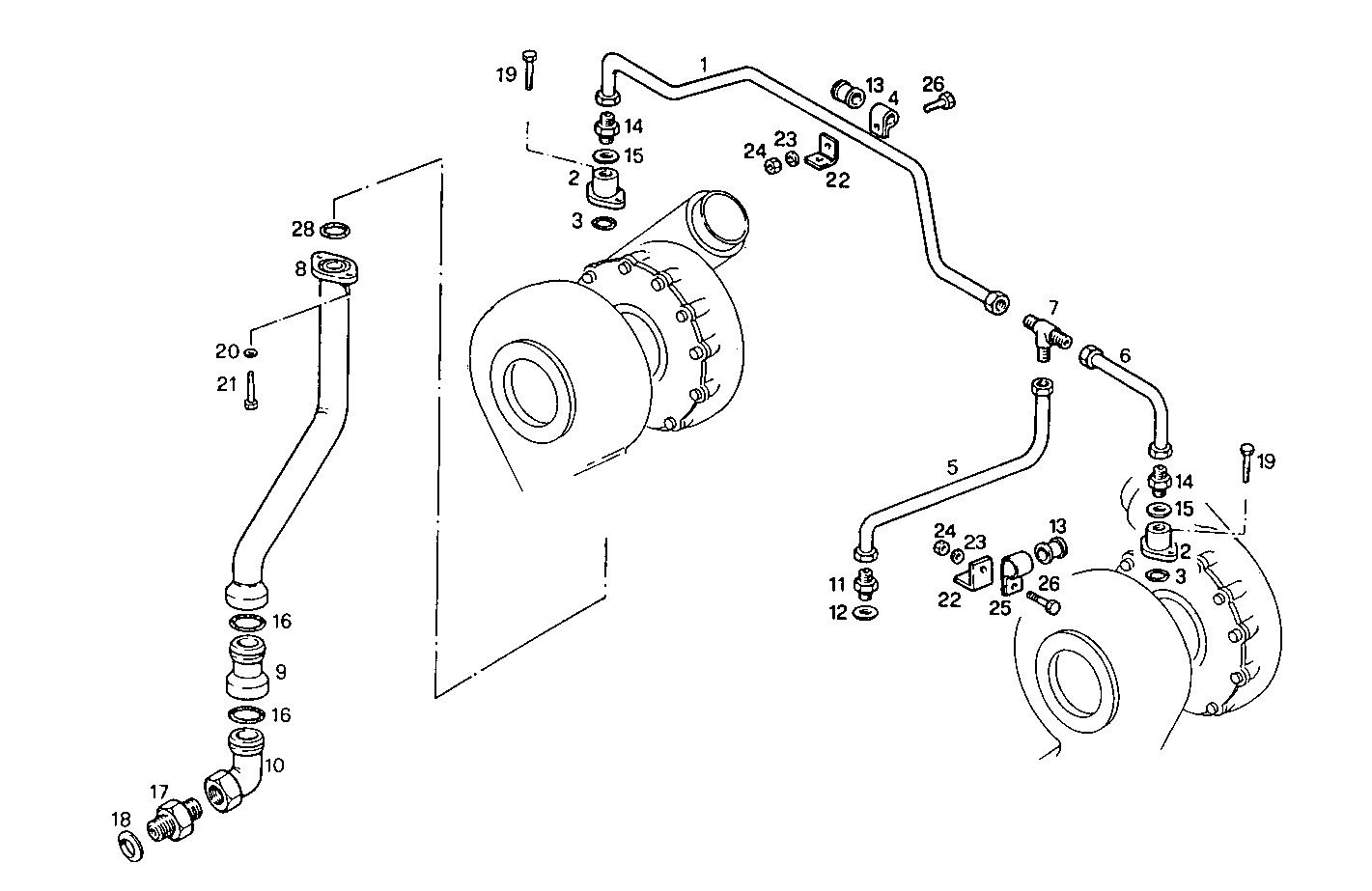

LUBE OIL LINES

8291SRM75.10 — 8291SRM75

Parts List

#	Part No	Name / Description	Qty
1	8010127	OIL LINE OIL LINE	1
2	8011269	FLANGE FLANGE	2
3	17288281	O-RING O-RING	2
4	4763804	FASTENING BRACKET FASTENING BRACKET	2
5	8010125	OIL LINE OIL LINE	1
6	8010126	OIL LINE OIL LINE	1
7	4741608	T-COUPLING T-COUPLING	1
8	8010539	OIL LINE OIL LINE	2
9	8010542	PIPE SOCKET PIPE SOCKET	2
10	8010543	PIPE SOCKET PIPE SOCKET	2
11	8010546	PIPE SOCKET PIPE SOCKET	1
12	4858610	WASHER WASHER	1
13	4757122	RUBBER PAD RUBBER PAD	2
14	16500311	PIPE SOCKET PIPE SOCKET	2
15	4858609	WASHER WASHER	2
16	17289081	O-RING O-RING	4
17	16527914	PIPE SOCKET PIPE SOCKET	1
18	16528060	WASHER WASHER	1
19	16692124	CYLIND-HEAD SCREW CYLIND-HEAD SCREW	4
20	17090174	SPRING WASHER SPRING WASHER	4
21	16607624	SCREW SCREW	4
22	17288981	O-RING O-RING	2
