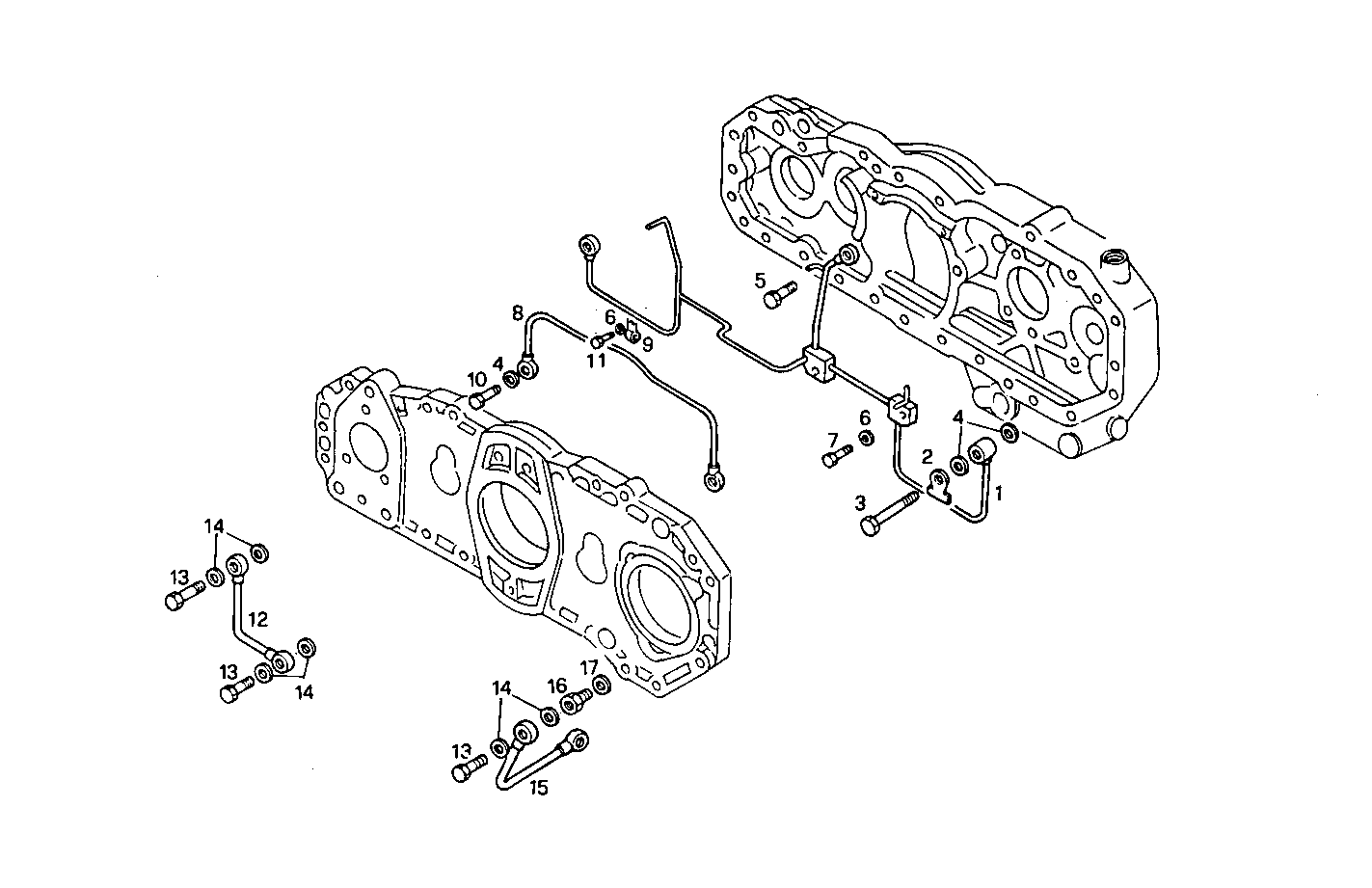

LUBE OIL LINES
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009770 | OIL LINE OIL LINE | 1 | |
| 2 | 852409 | LOCKING PLATE LOCKING PLATE | 1 | |
| 3 | 4791491 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 4 | 4858606 | GASKET GASKET | 6 | |
| 5 | 4795453 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 6 | 12639704 | WASHER WASHER | 4 | |
| 7 | 10902124 | SCREW SCREW | 2 | |
| 8 | 8009769 | OIL LINE OIL LINE | 1 | |
| 9 | 4791489 | CLIP CLIP | 2 | |
| 10 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 11 | 16603824 | SCREW SCREW | 2 | |
| 12 | 8010513 | OIL LINE OIL LINE | 1 | |
| 13 | 98429224 | SCREW CONNECTOR SCREW CONNECTOR | 4 | |
| 14 | 98429280 | SEAL GASKET SEAL GASKET | 8 | |
| 15 | 8010512 | OIL LINE OIL LINE | 1 | |
| 16 | 8010511 | PIPE SOCKET PIPE SOCKET | 1 | |
| 17 | 16508460 | WASHER WASHER | 1 |
