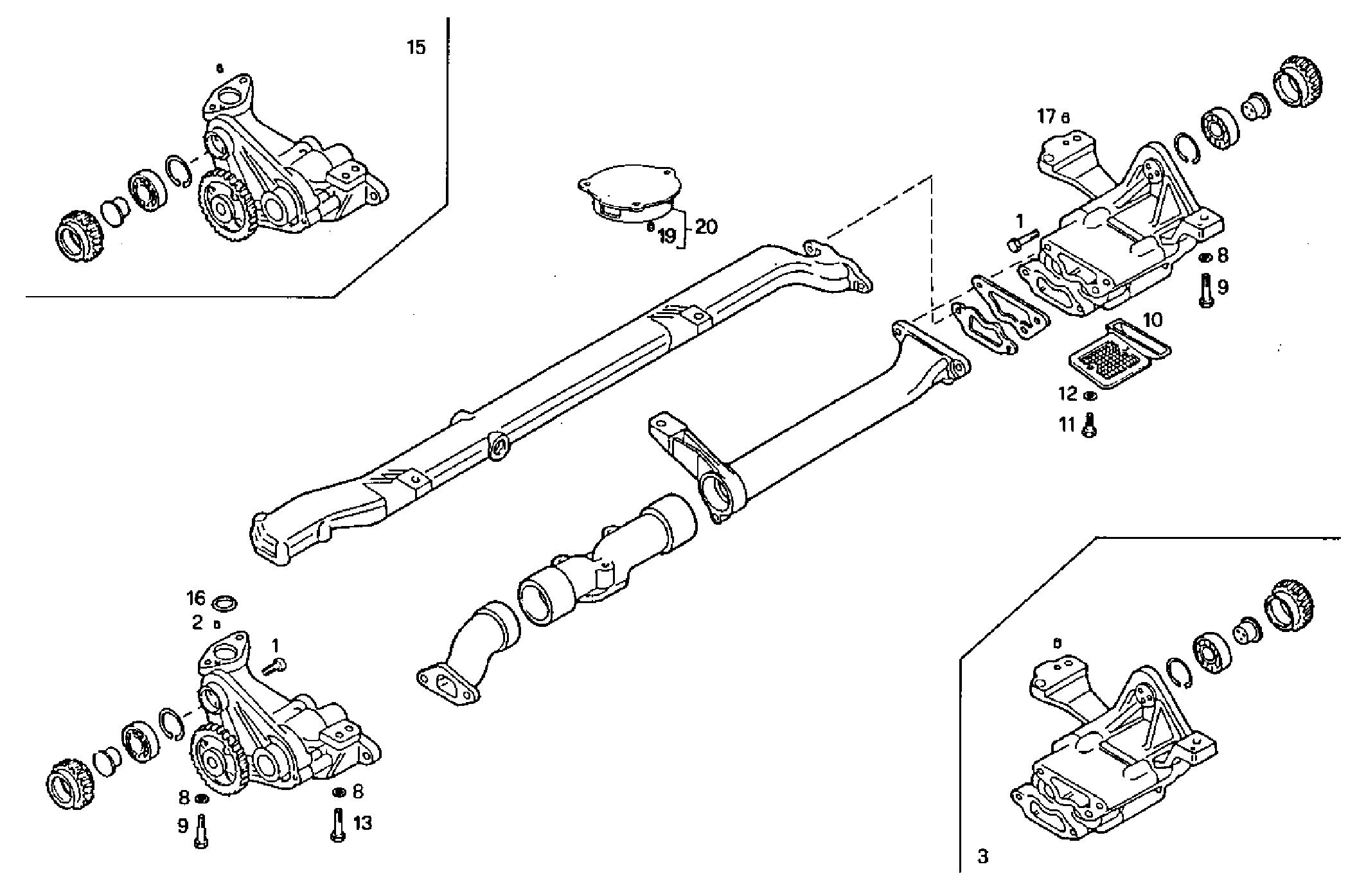

OIL PUMP
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 14306524 | SCREW SCREW | 6 | |
| 2 | 10839510 | DOWEL PIN DOWEL PIN | 2 | |
| 3 | 4832343 | LUBE OIL PUMP LUBE OIL PUMP | 1 | |
| 8 | 11190579 | SPRING WASHER SPRING WASHER | 6 | |
| 9 | 11306924 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 10 | 4782011 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 11 | 4813689 | SCREW SCREW | 2 | |
| 12 | 14496404 | WASHER WASHER | 1 | |
| 13 | 15971624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 4832342 | LUBE OIL PUMP LUBE OIL PUMP | 1 | |
| 16 | 14458531 | WASHER WASHER | 1 | |
| 17 | 10336510 | DOWEL PIN DOWEL PIN | 2 | |
| 18 | 16045424 | SCREW SCREW | 3 | |
| 19 | 13582171 | THREADED INSERT THREADED INSERT | 3 | |
| 20 | 4862133 | SUCTION STRAINER SUCTION STRAINER | 1 |
