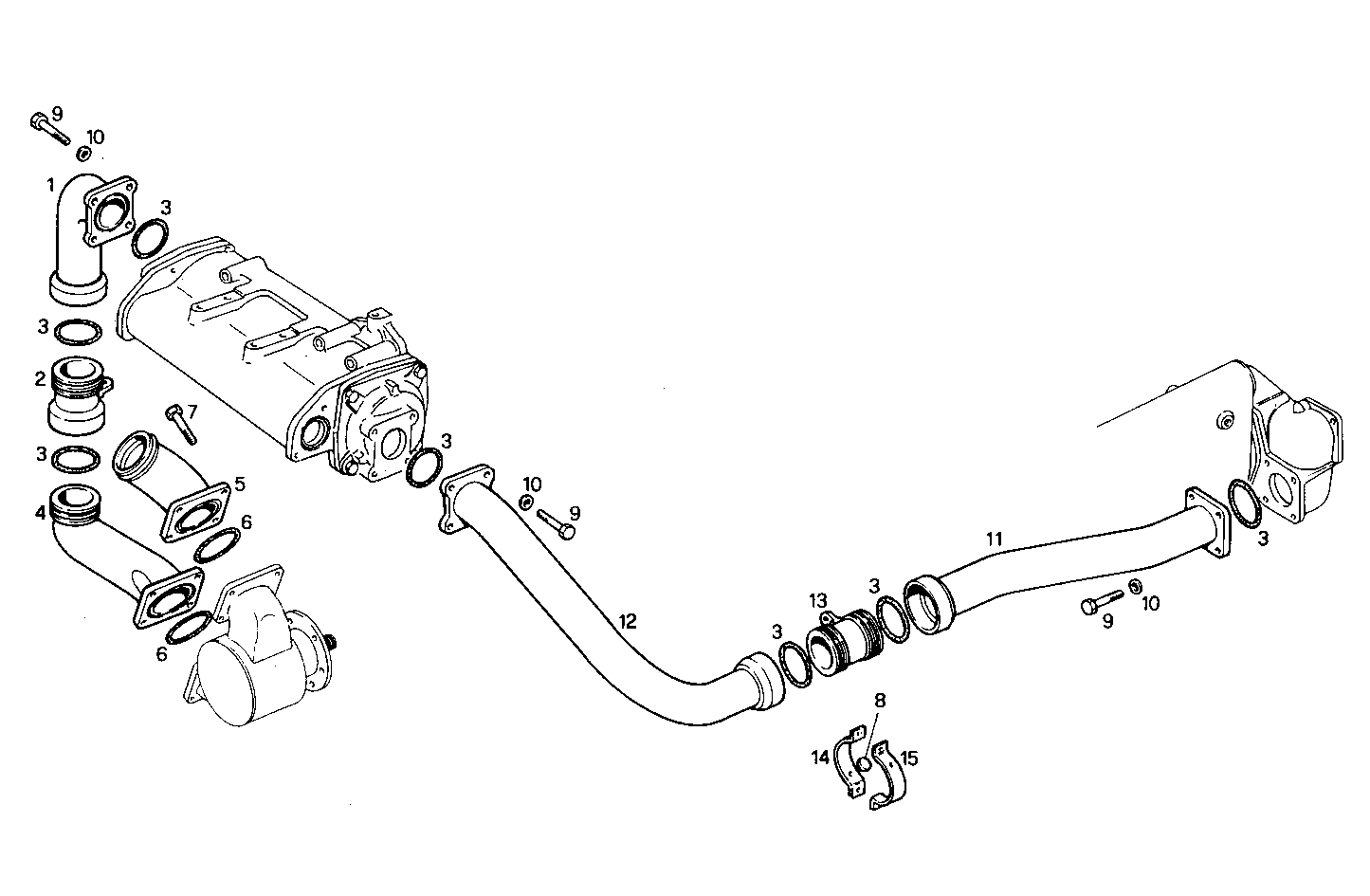

SEA WATER LINES
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010568 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8010567 | SPACING BAR SPACING BAR | 1 | |
| 3 | 17290481 | O-RING O-RING | 11 | |
| 4 | 8010715 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8010688 | WATER PIPE WATER PIPE | 1 | |
| 6 | 17290781 | O-RING O-RING | 2 | |
| 7 | 4932506 | SCREW SCREW | 8 | |
| 8 | 1366290 | RUBBER PAD RUBBER PAD | 8 | |
| 9 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 11 | 8010458 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8010438 | WATER PIPE WATER PIPE | 1 | |
| 13 | 8010462 | SPACING BAR SPACING BAR | 1 | |
| 14 | 8011429 | CLAMP CLAMP | 2 | |
| 15 | 8011430 | CLAMP CLAMP | 2 |
