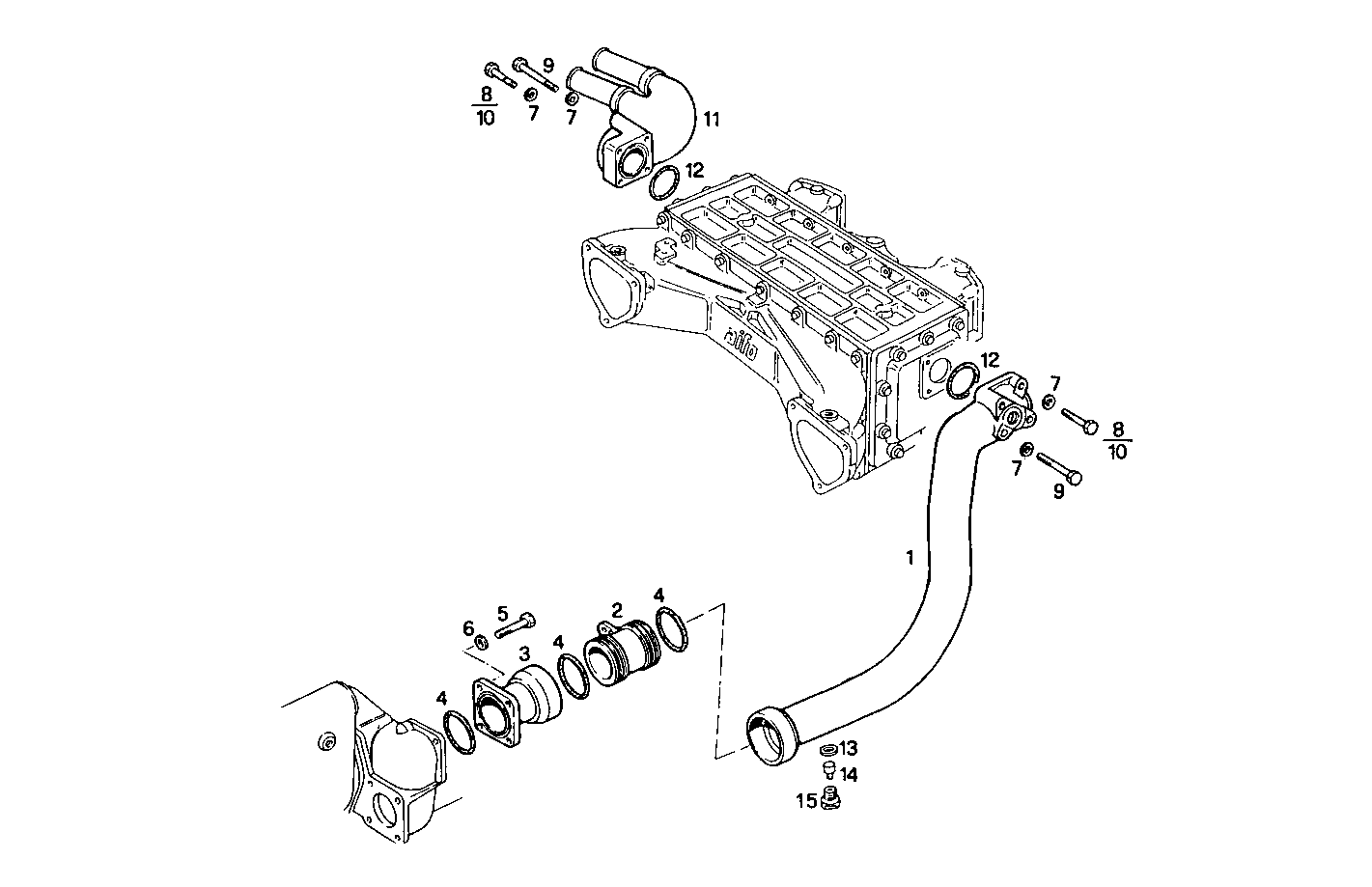

SEA WATER LINES
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010685 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8010462 | SPACING BAR SPACING BAR | 1 | |
| 3 | 8010686 | WATER PIPE WATER PIPE | 1 | |
| 4 | 17290481 | O-RING O-RING | 5 | |
| 5 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 8 | |
| 8 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 16608924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 16608424 | SCREW SCREW | 2 | |
| 11 | 8014913 | WATER PIPE WATER PIPE | 1 | |
| 12 | 17290281 | O-RING O-RING | 2 | |
| 13 | 10296260 | SEAL GASKET SEAL GASKET | 1 | |
| 14 | 8101772 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 15 | 8101771 | PLUG PLUG | 1 |
