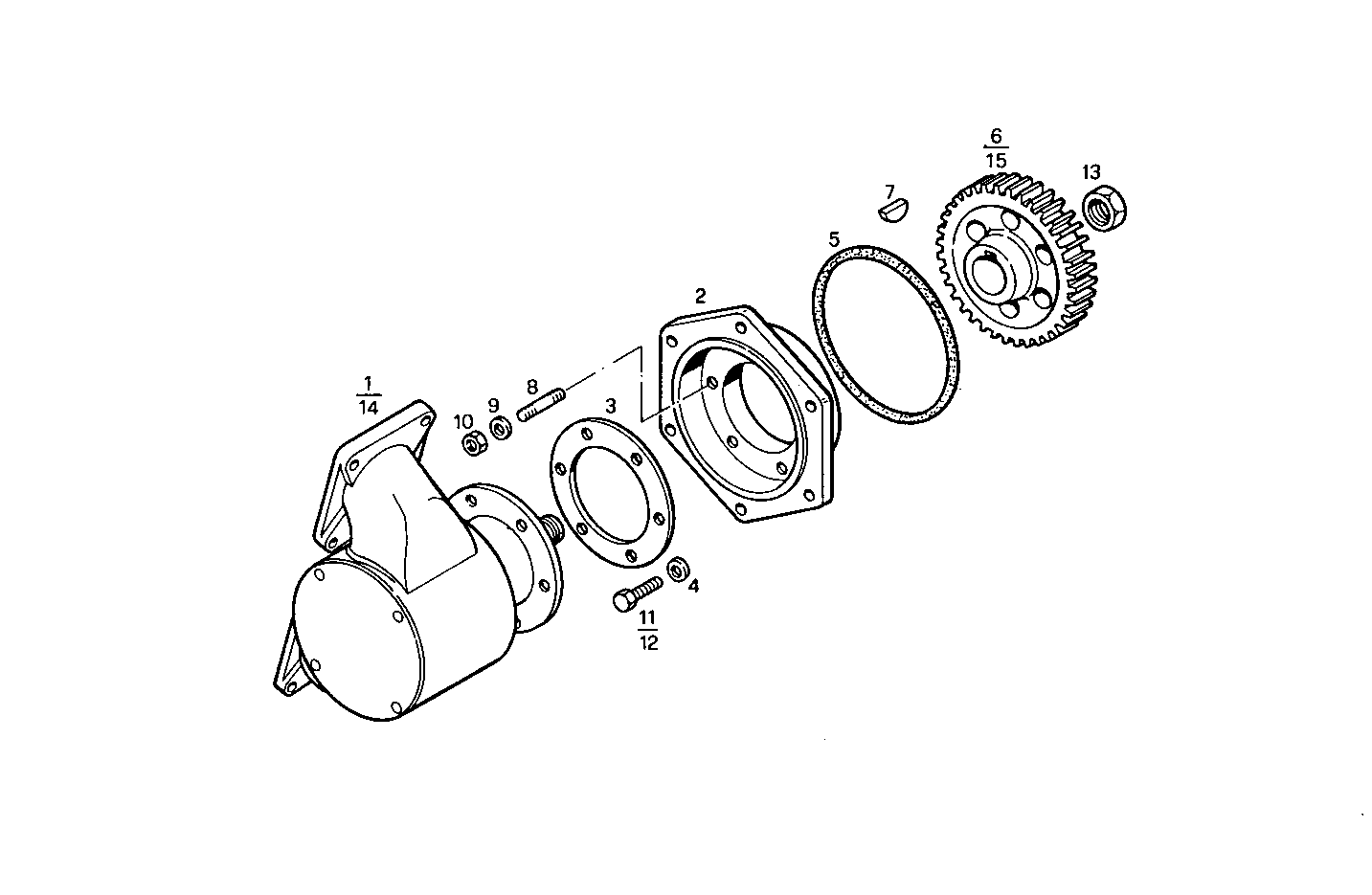

SEA WATER PUMP
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009474 | SEA WATER PUMP SEA WATER PUMP | 1 | |
| 2 | 8009848 | SUPPORT SUPPORT | 1 | |
| 3 | 8009849 | GASKET GASKET | 1 | |
| 4 | 17095104 | WASHER WASHER | 6 | |
| 5 | 8026145 | O-RING O-RING | 1 | |
| 6 | 8010031 | GEAR GEAR | 1 | |
| 7 | 8010829 | KEY KEY | 1 | |
| 8 | 16729324 | STUD STUD | 6 | |
| 9 | 17094914 | WASHER WASHER | 6 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 11 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 16608424 | SCREW SCREW | 2 | |
| 13 | 4799474 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 8017589 | SEA WATER PUMP SEA WATER PUMP | 1 | |
| 15 | 8019570 | GEAR GEAR | 1 |
