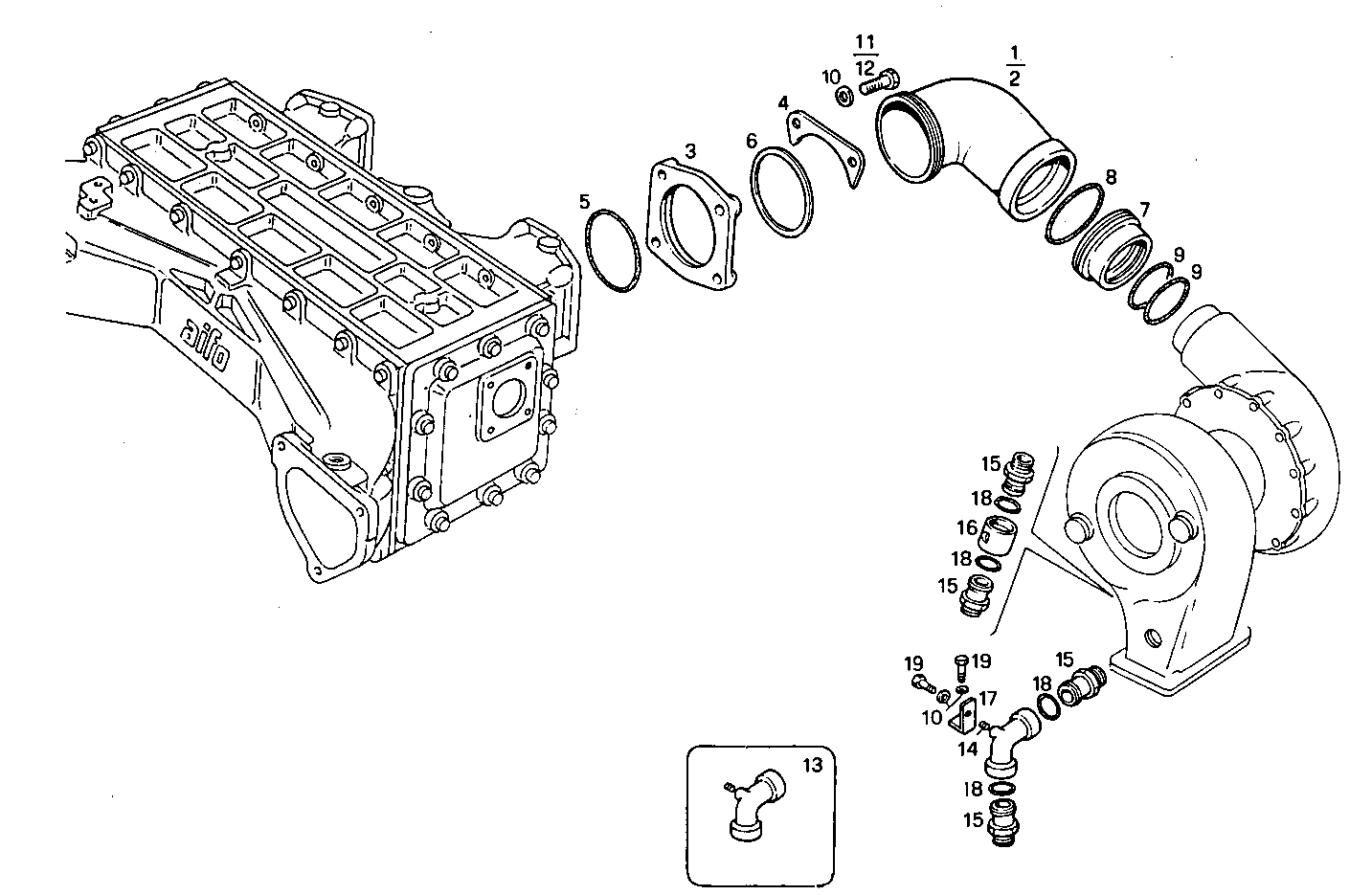

SUPERCHARGING LINES
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009167 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 2 | 8009166 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 3 | 8105950 | FLANGE FLANGE | 2 | |
| 4 | 8105952 | PLATE PLATE | 4 | |
| 5 | 17291281 | O-RING O-RING | 2 | |
| 6 | 8105951 | CIRCLIP CIRCLIP | 2 | |
| 7 | 8006821 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 8 | 17290781 | O-RING O-RING | 2 | |
| 9 | 17285281 | O-RING O-RING | 4 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 11 | 16605924 | SCREW SCREW | 4 | |
| 12 | 16606024 | SCREW SCREW | 4 | |
| 13 | 8009119 | INTAKE ELBOW INTAKE ELBOW | 2 | |
| 14 | 17873271 | THREADED INSERT THREADED INSERT | 2 | |
| 15 | 8006824 | PIPE SOCKET PIPE SOCKET | 4 | |
| 16 | 8011504 | SPACING BAR SPACING BAR | 2 | |
| 17 | 8011353 | RETAINER RETAINER | 2 | |
| 18 | 17282381 | O-RING O-RING | 8 | |
| 19 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 |
