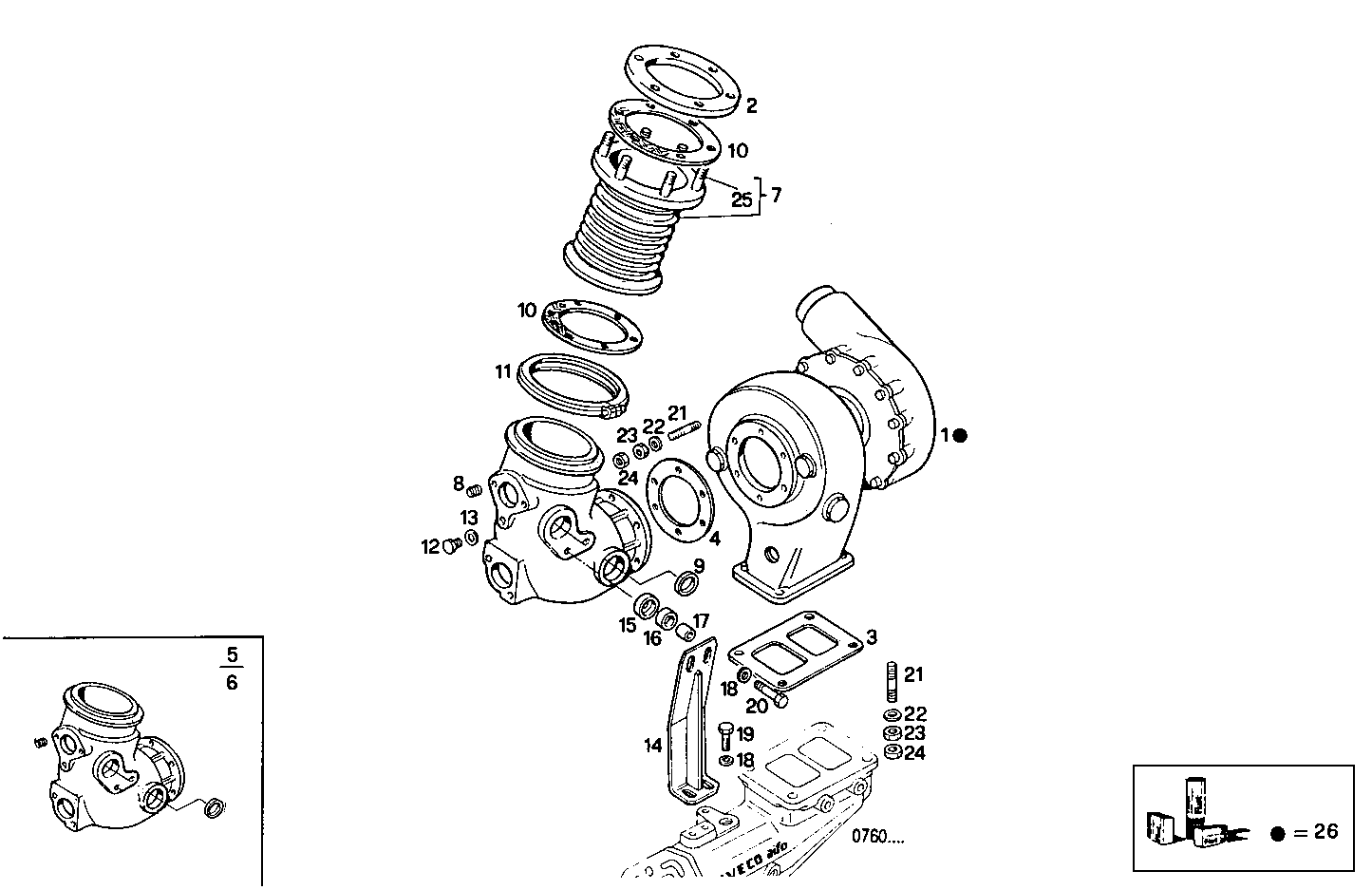

TURBOCHARGER
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010371 | TURBOCHARGER TURBOCHARGER | 2 | |
| 2 | 8010113 | FLANGE FLANGE | 2 | |
| 3 | 4512366 | GASKET GASKET | 2 | |
| 4 | 42075987 | GASKET GASKET | 2 | |
| 5 | 8009933 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 6 | 8009935 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 7 | 8010070 | HOSE HOSE | 2 | |
| 8 | 17873271 | THREADED INSERT THREADED INSERT | 12 | |
| 9 | 16991370 | LOCK PLUG LOCK PLUG | 6 | |
| 10 | 8010072 | GASKET GASKET | 4 | |
| 11 | 4886025 | CLIP CLIP | 2 | |
| 12 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 13 | 4858607 | WASHER WASHER | 2 | |
| 14 | 8010115 | RETAINER RETAINER | 2 | |
| 15 | 4023904 | CAP CAP | 8 | |
| 16 | 4023905 | DOWEL DOWEL | 8 | |
| 17 | 4617262 | SPACING BAR SPACING BAR | 4 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 19 | 16605424 | SCREW SCREW | 4 | |
| 20 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 21 | 16731334 | STUD STUD | 20 | |
| 22 | 16665614 | WASHER WASHER | 20 | |
| 23 | 17038131 | HEXAGON NUT HEXAGON NUT | 20 | |
| 24 | 16979831 | NUT NUT | 20 | |
| 25 | 16761234 | STUD STUD | 12 | |
| 26 | 8092233 | KIT-TURBOCHARGER KIT-TURBOCHARGER | 2 |
