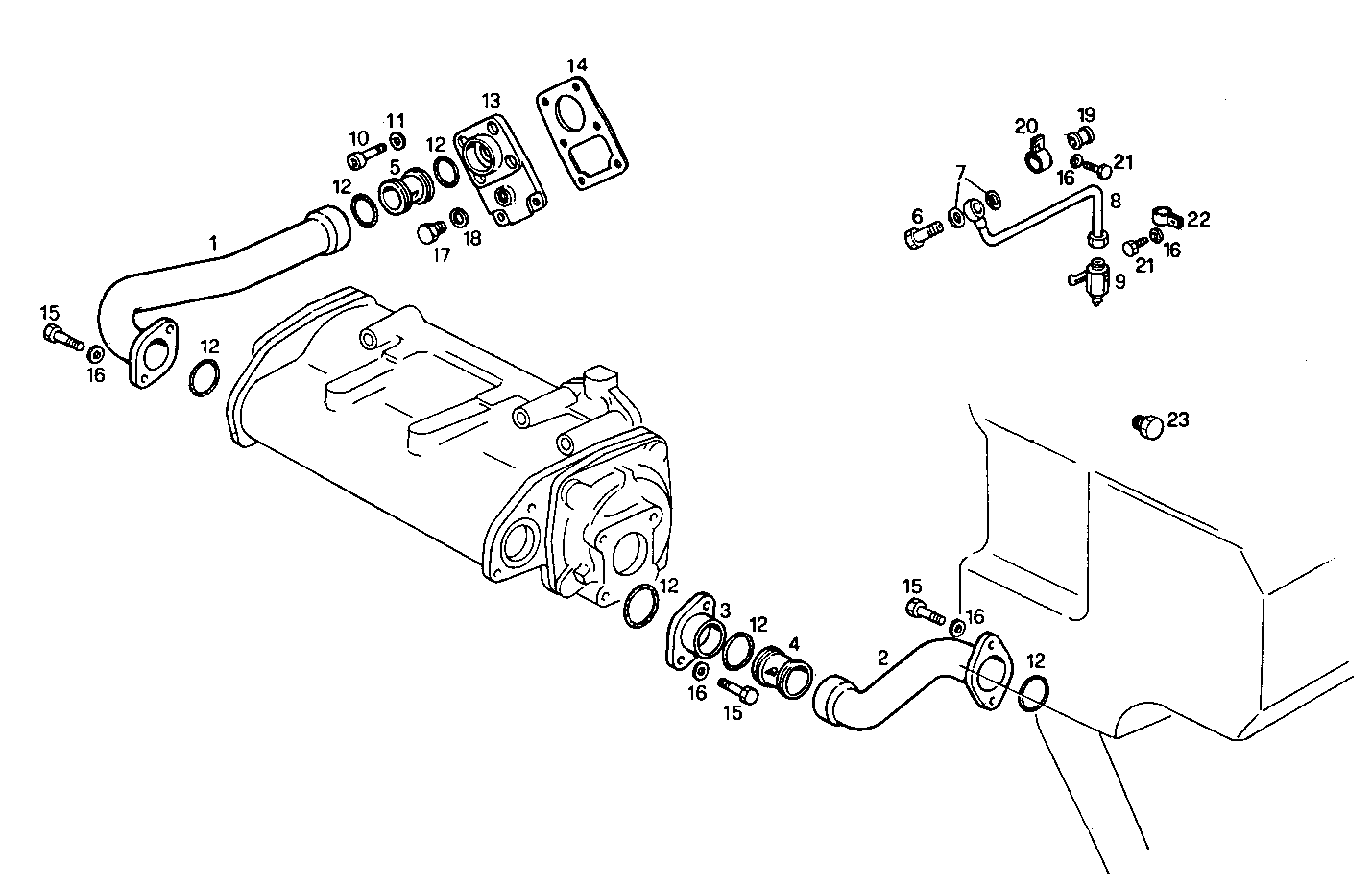

WATER LINES
8291SRM75.10 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009593 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8009630 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8009632 | FLANGE FLANGE | 1 | |
| 4 | 8009637 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8112496 | CONNECTION CONNECTION | 1 | |
| 6 | 98429924 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 7 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 8011182 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8113932 | DRAIN COCK DRAIN COCK | 1 | |
| 10 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 11 | 17101534 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 17289981 | O-RING O-RING | 7 | |
| 13 | 8009895 | WATER PIPE WATER PIPE | 3 | |
| 14 | 8101855 | GASKET GASKET | 1 | |
| 15 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 18 | |
| 17 | 16992324 | PLUG PLUG | 1 | |
| 18 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 19 | 4626900 | CLIP CLIP | 1 | |
| 20 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 21 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 8107203 | RETAINER RETAINER | 1 | |
| 23 | 10268404 | PLUG PLUG | 1 |
