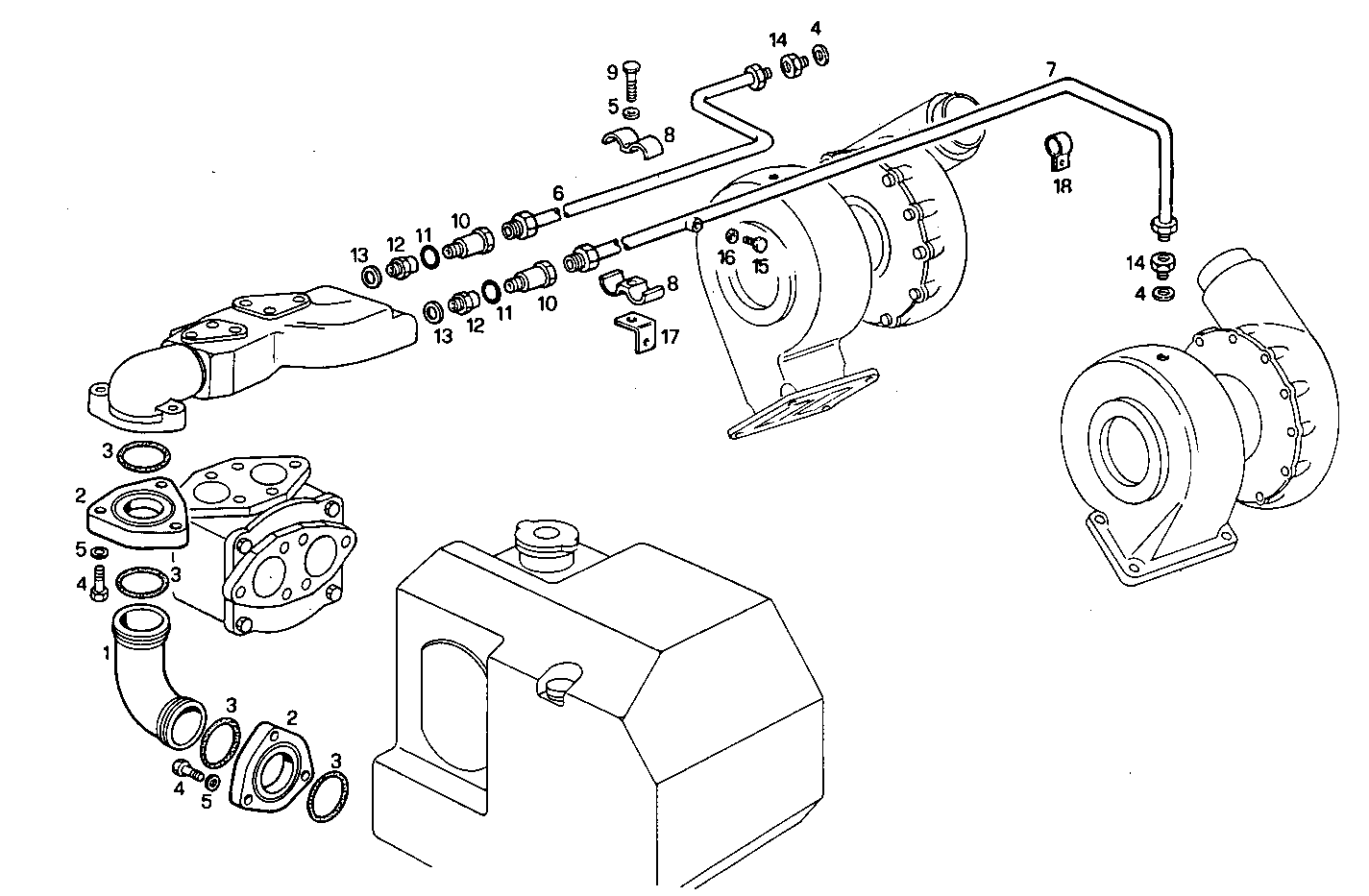

WATER LINES

8291SRM75.10 — 8291SRM75

Parts List

#	Part No	Name / Description	Qty
1	8009253	WATER PIPE WATER PIPE	1
2	8009252	FLANGE FLANGE	2
3	17290581	O-RING O-RING	4
4	16608024	HEXAGON BOLT HEXAGON BOLT	6
5	17089474	SPRING WASHER SPRING WASHER	8
6	8011397	WATER PIPE WATER PIPE	1
7	8010506	WATER PIPE WATER PIPE	1
8	8008215	CLAMP CLAMP	4
9	16607024	HEXAGON BOLT HEXAGON BOLT	2
10	8007521	PIPE SOCKET PIPE SOCKET	2
11	17282181	O-RING O-RING	2
12	8007520	PIPE SOCKET PIPE SOCKET	2
13	98429282	SEAL GASKET SEAL GASKET	4
14	8110943	PIPE SOCKET PIPE SOCKET	2
15	16992424	PLUG PLUG	1
16	4858609	WASHER WASHER	1
17	8011456	PIPE SOCKET PIPE SOCKET	1
18	8010597	RETAINER RETAINER	2
