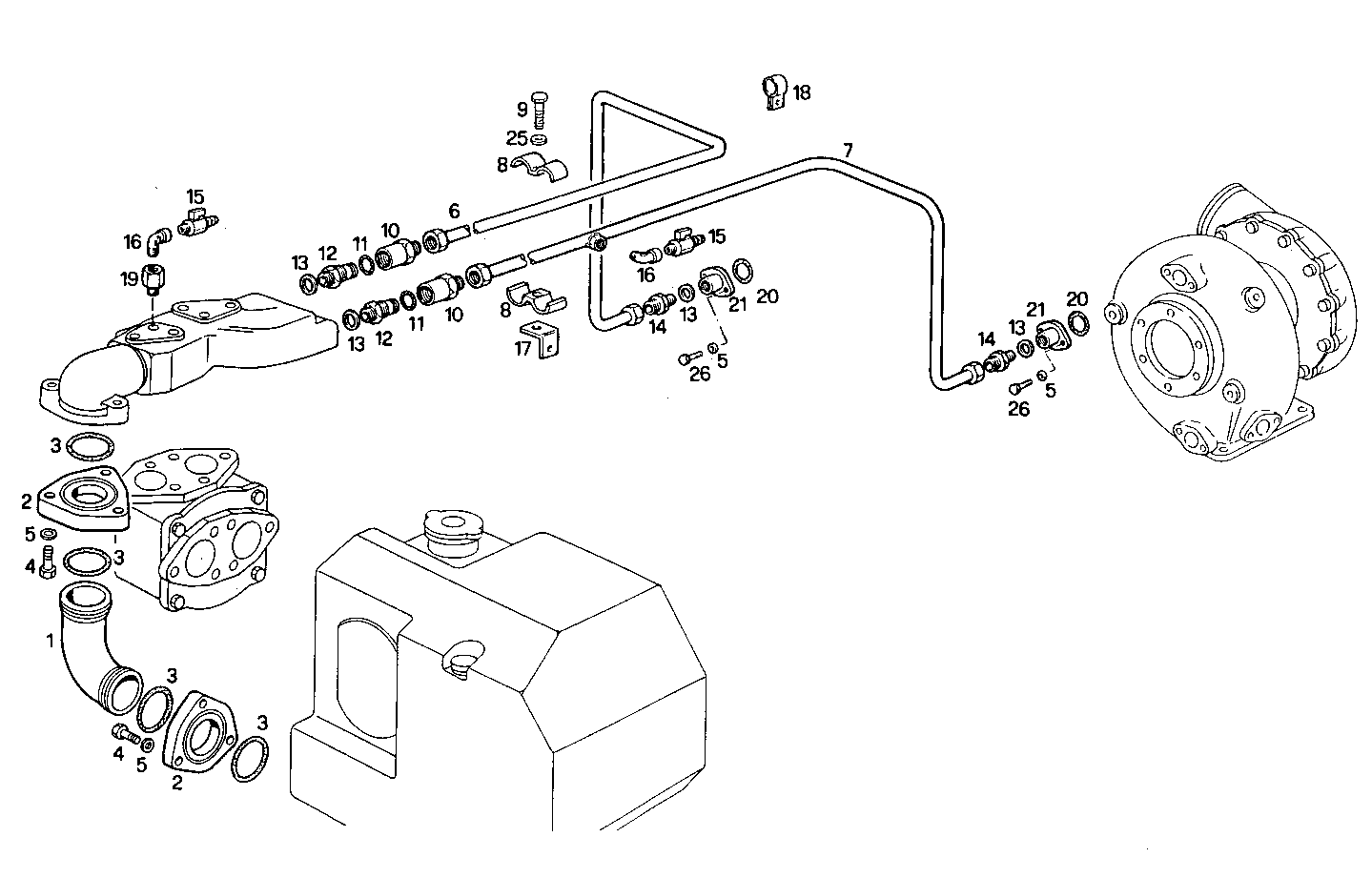

WATER LINES

8291SRM75.11 — 8291SRM75

Parts List

#	Part No	Name / Description	Qty
1	8009253	WATER PIPE WATER PIPE	1
2	8009252	FLANGE FLANGE	2
3	17290581	O-RING O-RING	6
4	16608024	HEXAGON BOLT HEXAGON BOLT	6
5	17089474	SPRING WASHER SPRING WASHER	10
6	8016286	WATER PIPE WATER PIPE	1
7	8016266	WATER PIPE WATER PIPE	1
8	8008215	CLAMP CLAMP	2
9	16607724	HEXAGON BOLT HEXAGON BOLT	1
10	8007521	PIPE SOCKET PIPE SOCKET	2
11	17282181	O-RING O-RING	2
12	8007520	PIPE SOCKET PIPE SOCKET	2
13	98429282	SEAL GASKET SEAL GASKET	4
14	8110943	PIPE SOCKET PIPE SOCKET	4
15	8113932	DRAIN COCK DRAIN COCK	2
16	8005303	PIPE SOCKET PIPE SOCKET	2
17	8011456	PIPE SOCKET PIPE SOCKET	1
18	8010597	RETAINER RETAINER	2
19	8009273	PIPE SOCKET PIPE SOCKET	1
20	17279381	O-RING O-RING	2
21	8016279	FLANGE FLANGE	2
25	17090174	SPRING WASHER SPRING WASHER	1
26	16690424	CYLIND-HEAD SCREW CYLIND-HEAD SCREW	4
