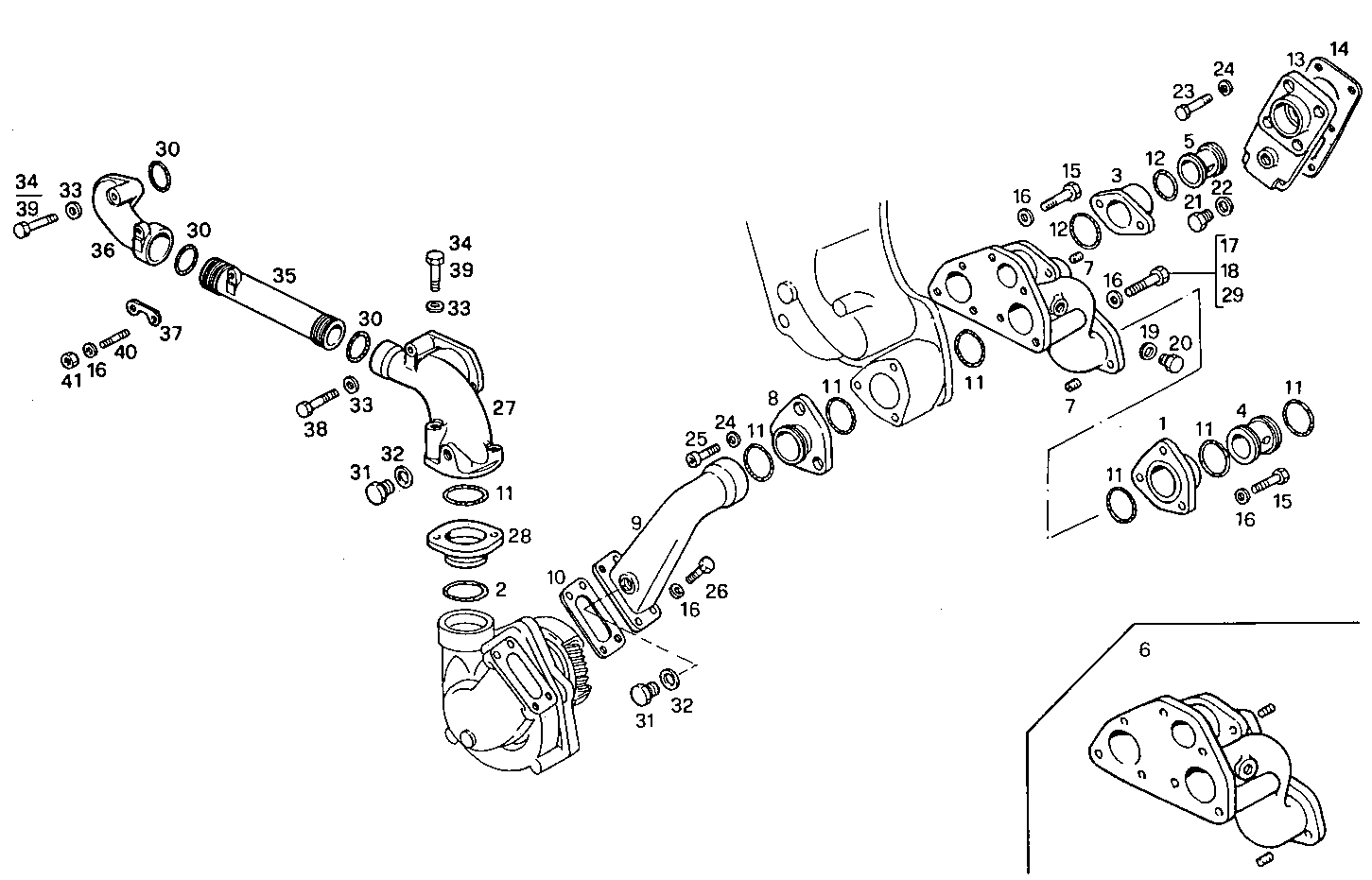

WATER LINES
8291SRM75.11 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009252 | FLANGE FLANGE | 2 | |
| 2 | 17296481 | O-RING O-RING | 1 | |
| 3 | 8021695 | FLANGE FLANGE | 1 | |
| 4 | 8009896 | ADAPTER ADAPTER | 2 | |
| 5 | 8016686 | CONNECTION CONNECTION | 1 | |
| 6 | 8009300 | WATER CONVEYOR WATER CONVEYOR | 1 | |
| 7 | 17873271 | THREADED INSERT THREADED INSERT | 4 | |
| 8 | 8008998 | FLANGE FLANGE | 1 | |
| 9 | 8008999 | WATER PIPE WATER PIPE | 1 | |
| 10 | 8010667 | GASKET GASKET | 1 | |
| 11 | 17290581 | O-RING O-RING | 12 | |
| 12 | 17289981 | O-RING O-RING | 8 | |
| 13 | 8009895 | WATER PIPE WATER PIPE | 2 | |
| 14 | 8101855 | GASKET GASKET | 1 | |
| 15 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 11 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 20 | |
| 17 | 16607024 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 18 | 16046321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 4858609 | WASHER WASHER | 2 | |
| 20 | 16992440 | THREADED PLUG THREADED PLUG | 2 | |
| 21 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 22 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 23 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 24 | 17101534 | SPRING WASHER SPRING WASHER | 7 | |
| 25 | 16690524 | SCREW SCREW | 3 | |
| 26 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 27 | 8019729 | WATER PIPE WATER PIPE | 1 | |
| 28 | 4782582 | REDUCER INSERT REDUCER INSERT | 1 | |
| 29 | 16046021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 30 | 17283981 | O-RING O-RING | 3 | |
| 31 | 16992540 | PLUG PLUG | 2 | |
| 32 | 4858610 | WASHER WASHER | 2 | |
| 33 | 17094914 | WASHER WASHER | 6 | |
| 34 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 35 | 8019730 | WATER PIPE WATER PIPE | 1 | |
| 36 | 8019780 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 37 | 8019781 | PLATE PLATE | 2 | |
| 38 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 39 | 16690924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 40 | 16729224 | STUD STUD | 2 | |
| 41 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 |
