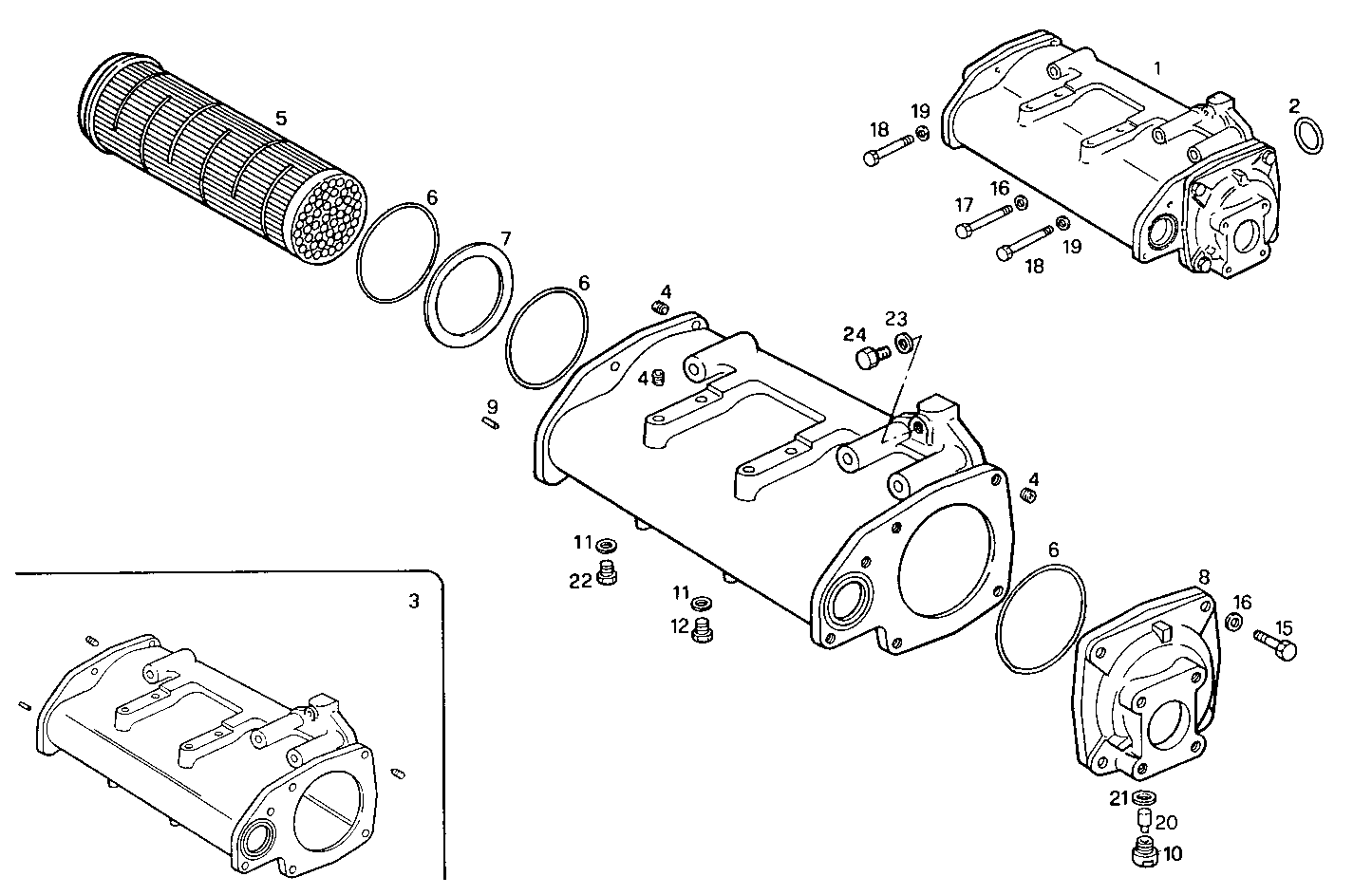

OIL - WATER HEAT EXCHANGER
8291SRM75.12 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012920 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 2 | 17283381 | O-RING O-RING | 2 | |
| 3 | 8012921 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 4 | 17873271 | THREADED INSERT THREADED INSERT | 18 | |
| 5 | 8009773 | TUBE STACK TUBE STACK | 1 | |
| 6 | 17292481 | O-RING O-RING | 4 | |
| 7 | 8006348 | SPACING BAR SPACING BAR | 1 | |
| 8 | 8009516 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 2 | |
| 9 | 17253570 | PIN PIN | 1 | |
| 10 | 8101771 | PLUG PLUG | 2 | |
| 11 | 4858609 | WASHER WASHER | 3 | |
| 12 | 16992440 | THREADED PLUG THREADED PLUG | 3 | |
| 15 | 16605924 | SCREW SCREW | 8 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 9 | |
| 17 | 16045824 | SCREW SCREW | 1 | |
| 18 | 16609224 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 19 | 17090174 | SPRING WASHER SPRING WASHER | 5 | |
| 20 | 8101772 | SACRIFICAL ANODE SACRIFICAL ANODE | 2 | |
| 21 | 10296260 | SEAL GASKET SEAL GASKET | 2 | |
| 22 | 8011514 | THREADED UNION THREADED UNION | 2 | |
| 23 | 4858607 | WASHER WASHER | 1 | |
| 24 | 8005020 | PLUG PLUG | 1 |
