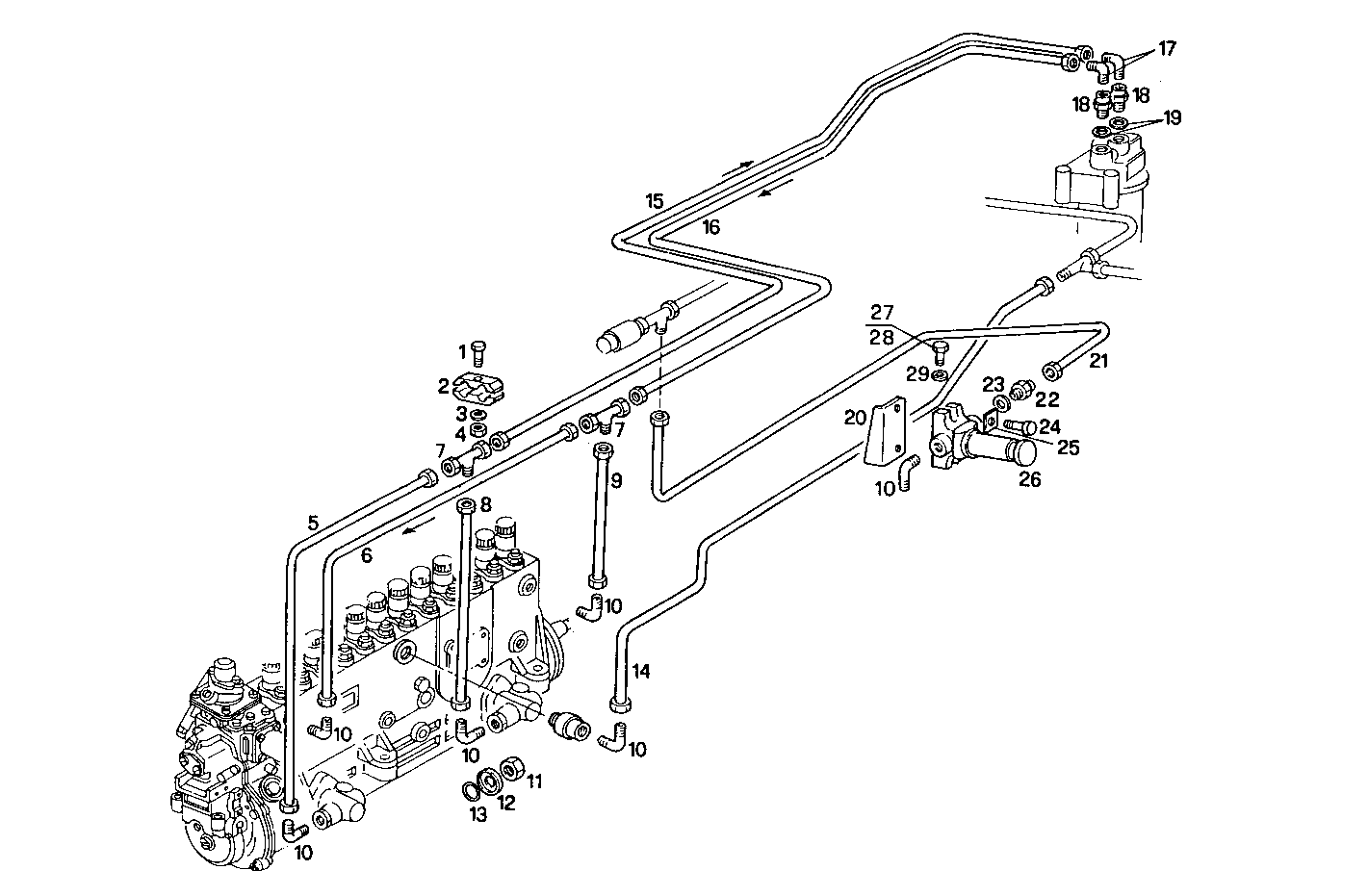

FUEL LINES
8291SRM75.31 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 2 | 8010505 | CLAMP CLAMP | 8 | |
| 3 | 17088974 | SPRING WASHER SPRING WASHER | 4 | |
| 4 | 17037821 | HEXAGON NUT HEXAGON NUT | 2 | |
| 5 | 8010384 | FUEL LINE FUEL LINE | 1 | |
| 6 | 8010388 | FUEL LINE FUEL LINE | 1 | |
| 7 | 8011303 | PIPE SOCKET PIPE SOCKET | 2 | |
| 8 | 8010385 | FUEL LINE FUEL LINE | 1 | |
| 9 | 8010389 | FUEL LINE FUEL LINE | 1 | |
| 10 | 8006222 | PIPE SOCKET PIPE SOCKET | 4 | |
| 11 | 16508711 | NUT NUT | 4 | |
| 12 | 8006339 | CAP CAP | 4 | |
| 13 | 17281581 | O-RING O-RING | 4 | |
| 14 | 8010390 | FUEL LINE FUEL LINE | 1 | |
| 15 | 8010386 | FUEL LINE FUEL LINE | 1 | |
| 16 | 8010387 | FUEL LINE FUEL LINE | 1 | |
| 17 | 16512111 | PIPE SOCKET PIPE SOCKET | 4 | |
| 18 | 8010452 | PIPE SOCKET PIPE SOCKET | 2 | |
| 19 | 10303460 | SEAL GASKET SEAL GASKET | 2 | |
| 20 | 8011455 | RETAINER RETAINER | 1 | |
| 21 | 8011301 | FUEL LINE FUEL LINE | 1 | |
| 22 | 16500211 | THREADED UNION THREADED UNION | 2 | |
| 23 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 24 | 16603824 | SCREW SCREW | 6 | |
| 25 | 11351379 | PLATE PLATE | 2 | |
| 26 | 4797319 | HAND PUMP HAND PUMP | 1 | |
| 27 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 28 | 16607624 | SCREW SCREW | 1 | |
| 29 | 17090174 | SPRING WASHER SPRING WASHER | 2 |
