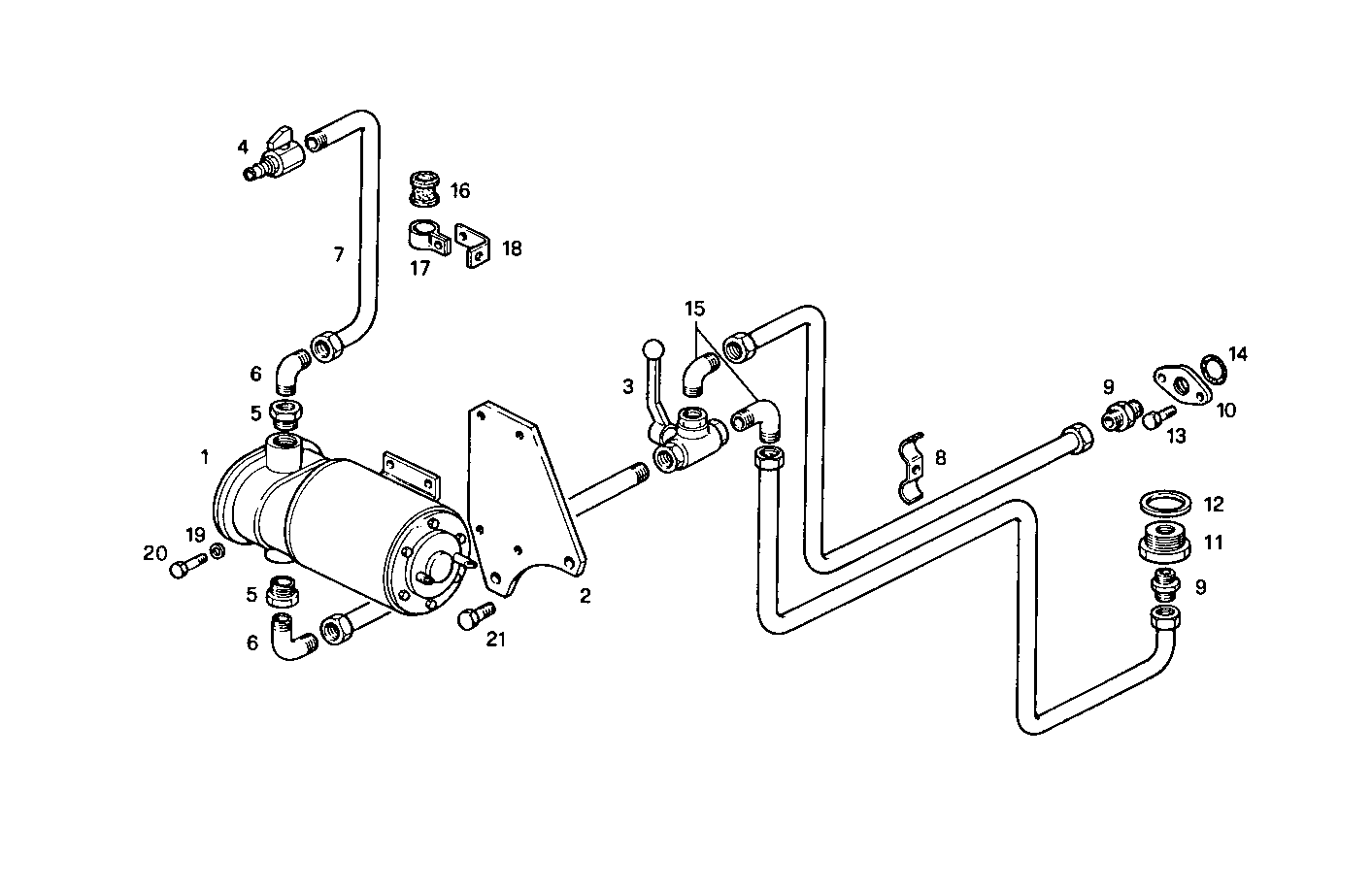

OIL OUTLET PUMP

8291SRM75.31 — 8291SRM75

Parts List

#	Part No	Name / Description	Qty
1	8011001	OIL DRAIN ELECTRIC PUMP OIL DRAIN ELECTRIC PUMP	1
2	8010981	SUPPORT SUPPORT	1
3	8010900	RETAINER COCK RETAINER COCK	1
4	8113932	DRAIN COCK DRAIN COCK	1
5	8010910	PIPE SOCKET PIPE SOCKET	2
6	8011422	PIPE SOCKET PIPE SOCKET	2
7	8010997	OIL LINE OIL LINE	1
8	8010505	CLAMP CLAMP	4
9	8005782	PIPE SOCKET PIPE SOCKET	2
10	8011071	FLANGE FLANGE	1
11	8010939	PIPE SOCKET PIPE SOCKET	1
12	10296260	SEAL GASKET SEAL GASKET	1
13	16605524	HEXAGON BOLT HEXAGON BOLT	2
14	17289081	O-RING O-RING	1
15	8113790	PIPE SOCKET PIPE SOCKET	2
16	4757122	RUBBER PAD RUBBER PAD	1
17	4763804	FASTENING BRACKET FASTENING BRACKET	1
18	4929652	RETAINER RETAINER	1
19	17088474	WASHER WASHER	4
20	16603424	SCREW SCREW	4
21	16606124	HEXAGON BOLT HEXAGON BOLT	2
