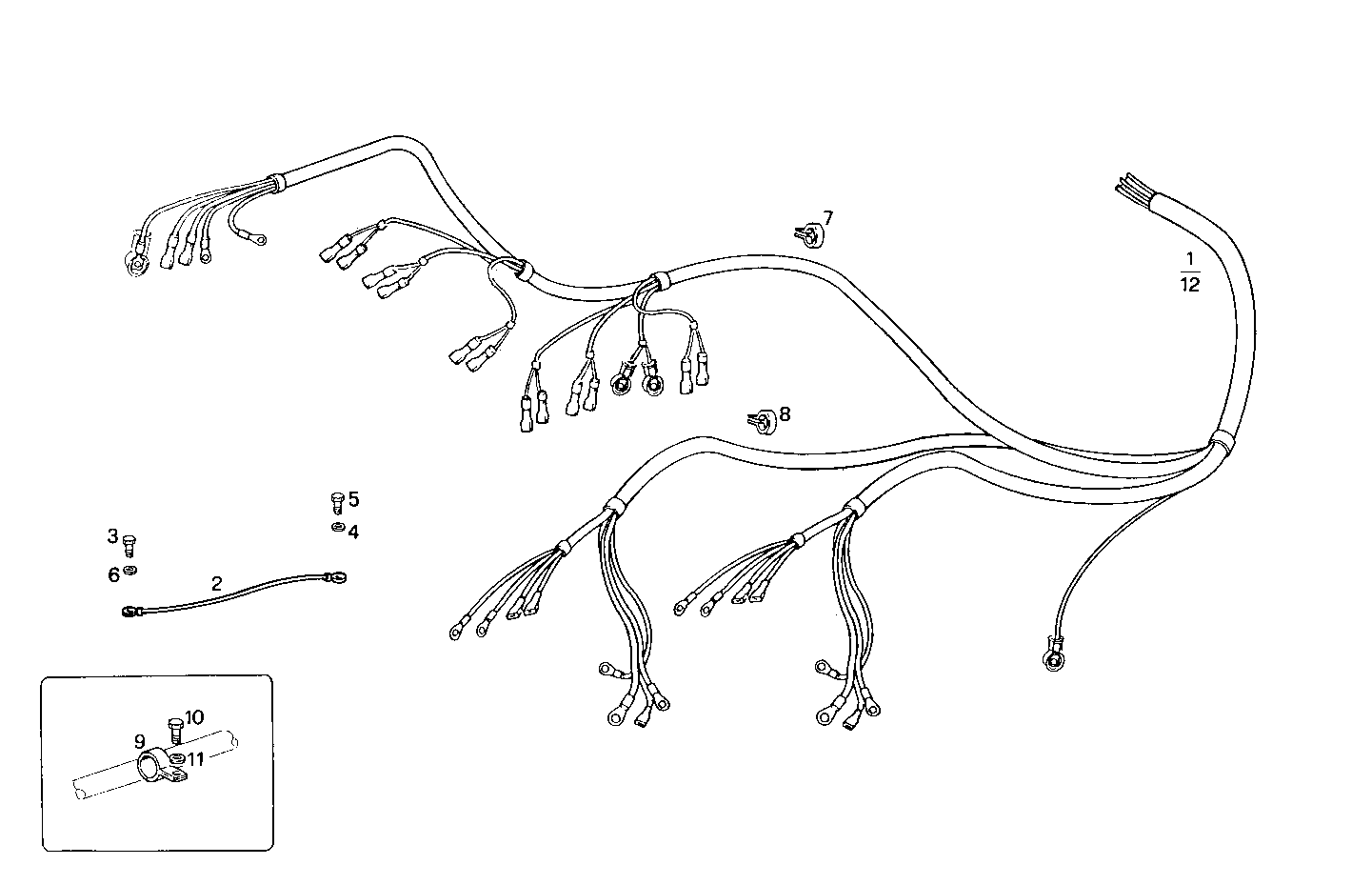

CABLES
8291SRM75.32 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010947 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 2 | 8016516 | EARTH WIRE EARTH WIRE | 18 | |
| 3 | 16603424 | SCREW SCREW | 11 | |
| 4 | 17094714 | WASHER WASHER | 11 | |
| 5 | 16605424 | SCREW SCREW | 6 | |
| 6 | 17094914 | WASHER WASHER | 6 | |
| 7 | 4936277 | CLIP CLIP | 2 | |
| 8 | 4936278 | CLIP CLIP | 6 | |
| 9 | 17316690 | FASTENING BRACKET FASTENING BRACKET | 3 | |
| 10 | 16607424 | SCREW SCREW | 3 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 12 | 8021951 | ENGINE HARNESS ENGINE HARNESS | 1 |
