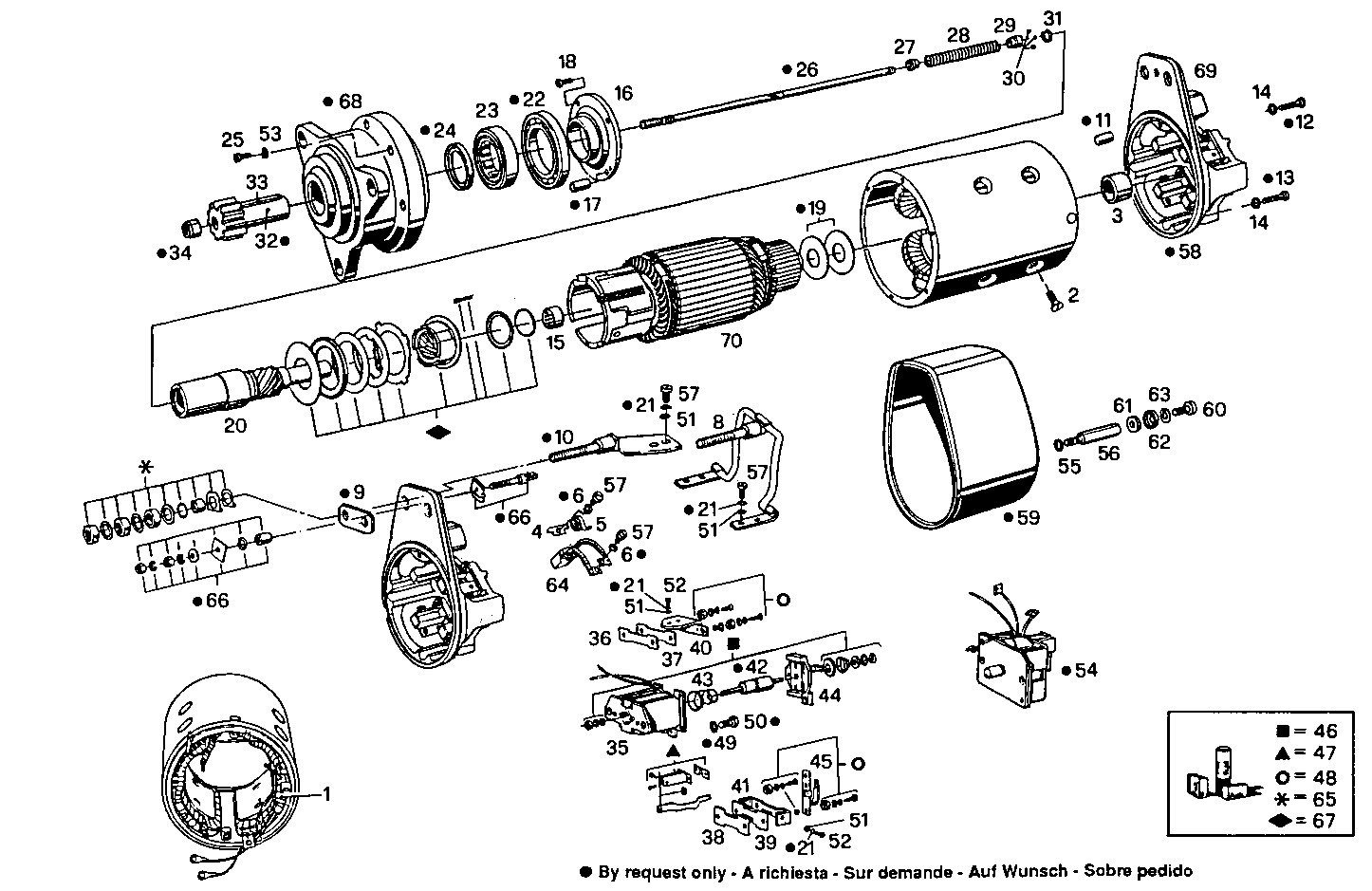

8291SRM75/8291SRM75.32/STARTER MOTOR (COMPONENTS)

STARTER MOTOR (COMPONENTS)

8291SRM75.32 — 8291SRM75

Parts List

#	Part No	Name / Description	Qty
1	93155000	STARTER WINDING STARTER WINDING	1
2	42489183	SCREW SCREW	8
3	1289809	BUSH BUSH	1
4	1304262	PLATE PLATE	4
5	1290142	SPRING SPRING	4
6	3630.018-006	WASHER WASHER	4
7	79052258	CUTTING SCREW CUTTING SCREW	4
8	1309066	SCREW SCREW	1
9	3630.018-009	PLATE PLATE	1
10	3630.018-010	SCREW SCREW	1
11	3630.018-011	PIN PIN	1
12	3630.018-012	SCREW SCREW	1
13	3630.018-013	SCREW SCREW	3
14	93160617	SPRING WASHER SPRING WASHER	4
15	1298805	ENGINE BEARINGS ENGINE BEARINGS	1
16	1307155	BEARING CAP BEARING CAP	1
17	3630.018-017	BUSH BUSH	4
18	79052237	SCREW SCREW	4
19	3630.018-019	WASHER WASHER	1
20	1307157	SHAFT SHAFT	1
21	3630.018-021	WASHER WASHER	13
22	3630.018-022	DRIVE BEARING DRIVE BEARING	1
23	1298804	DRIVE BEARING DRIVE BEARING	1
24	3630.018-024	GASKET GASKET	1
25	42489181	SCREW SCREW	6
26	3630.018-026	SHAFT SHAFT	1
27	79052244	RING RING	1
28	79052245	SPRING SPRING	1
29	79052246	RING RING	1
30	79052247	BALL BALL	11
31	9920367	CIRCLIP CIRCLIP	1
32	3630.018-032	PINION PINION	1
33	1298340	KEY KEY	1
34	3630.018-034	NUT NUT	1
35	1304579	RELAY RELAY	1
36	9920385	PLATE PLATE	2
37	1290406	PLATE PLATE	1
38	9920388	PLATE PLATE	2
39	9920387	PLATE PLATE	1
40	1308220	RETAINER RETAINER	1
41	1308221	RETAINER RETAINER	1
42	3630.018-042	STARTER ARMATURE STARTER ARMATURE	1
43	2985021	SPRING SPRING	1
44	2985018	SCREW SCREW	1
45	2985019	CONTACT BRIDGE CONTACT BRIDGE	1
46	2985022	KIT-STARTER KIT-STARTER	1
47	9920410	KIT-STARTER KIT-STARTER	1
48	2985023	KIT-STARTER KIT-STARTER	1
49	3630.018-049	WASHER WASHER	2
50	3630.018-050	SCREW SCREW	2
51	93159935	WASHER WASHER	6
52	79028449	SCREW SCREW	8
53	9924341	WASHER WASHER	6
54	3630.018-054	SOLENOID SOLENOID	1
55	9920379	WASHER WASHER	2
56	79052263	PIN PIN	2
57	79052258	CUTTING SCREW CUTTING SCREW	5
58	3630.018-058	GASKET GASKET	1
59	3630.018-059	COVER COVER	1
60	9923751	SCREW SCREW	1
61	1289929	GASKET GASKET	1
62	79052265	BUSH BUSH	1
63	93160617	SPRING WASHER SPRING WASHER	1
64	8122113	STARTER BRUSH STARTER BRUSH	1
65	1307173	KIT-STARTER KIT-STARTER	2
66	3630.018-066	KIT-STARTER KIT-STARTER	1
67	42489185	KIT-STARTER KIT-STARTER	1
68	3630.018-068	SUPPORT SUPPORT	1
69	1309005	STARTER SUPPORT STARTER SUPPORT	1
70	1290084	STARTER ARMATURE STARTER ARMATURE	1
