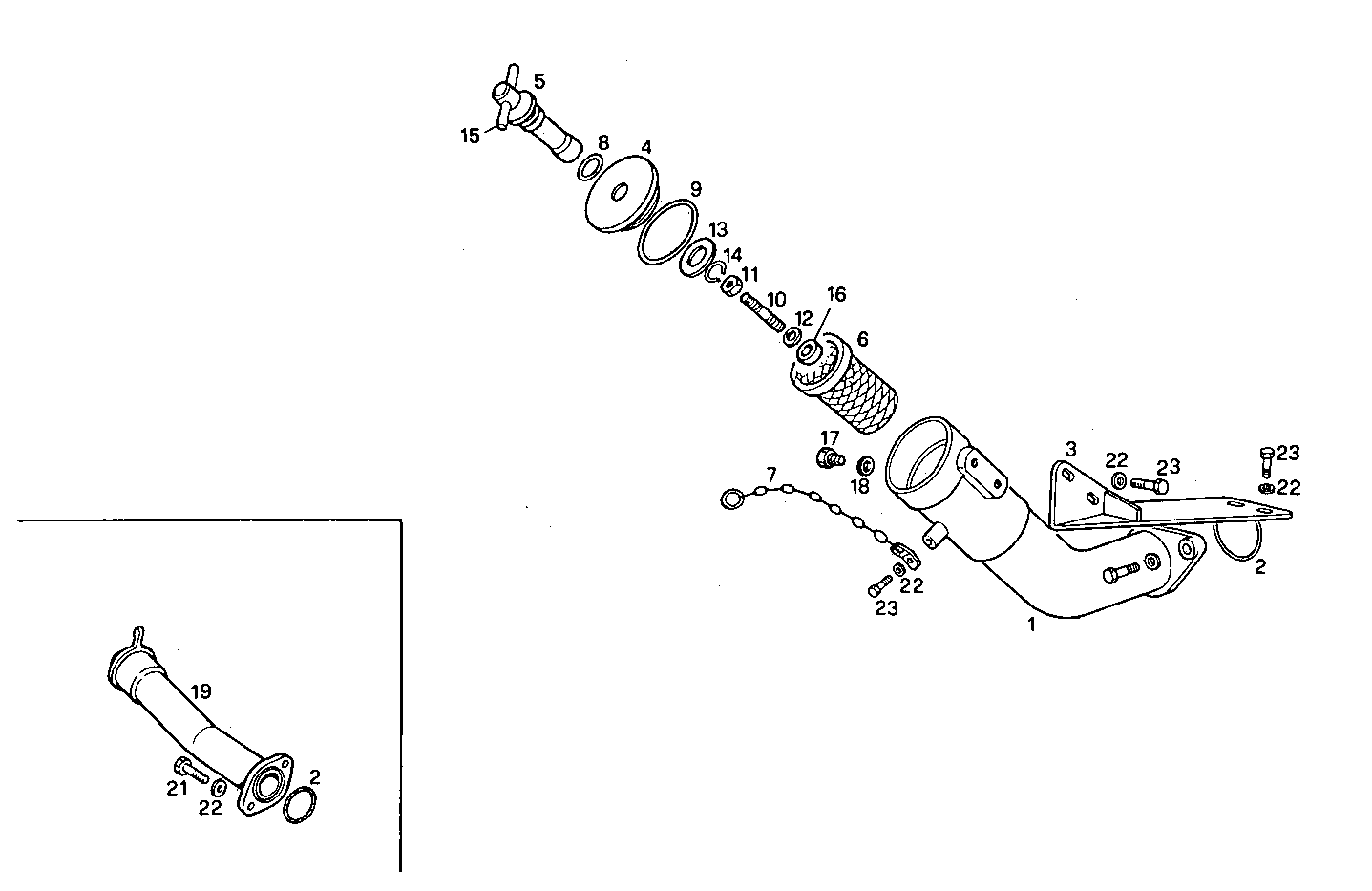

OIL DIPSTICK
8291SRM75.32A003 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017071 | OIL FILLER PIPE OIL FILLER PIPE | 1 | |
| 2 | 17289981 | O-RING O-RING | 2 | |
| 3 | 8017082 | RETAINER RETAINER | 1 | |
| 4 | 4882506 | COVER COVER | 1 | |
| 5 | 4882529 | ROD ROD | 1 | |
| 6 | 4882530 | STRAINER STRAINER | 1 | |
| 7 | 4882591 | CHAIN CHAIN | 1 | |
| 8 | 4854897 | O-RING O-RING | 1 | |
| 9 | 17296081 | O-RING O-RING | 1 | |
| 10 | 16706824 | STUD STUD | 1 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 17094914 | WASHER WASHER | 1 | |
| 13 | 17095704 | WASHER WASHER | 1 | |
| 14 | 16865776 | CIRCLIP CIRCLIP | 1 | |
| 15 | 17239320 | PIN PIN | 1 | |
| 16 | 17816014 | SPACING BAR SPACING BAR | 1 | |
| 17 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 18 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 19 | 8013621 | FILLER NECK FILLER NECK | 1 | |
| 21 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 17089474 | SPRING WASHER SPRING WASHER | 7 | |
| 23 | 16605424 | SCREW SCREW | 5 |
