PREARRANGEMENT DRIVE HYDRAULIC PUMP BRUENINGHAUS
8291SRM75.32A003 — 8291SRM75

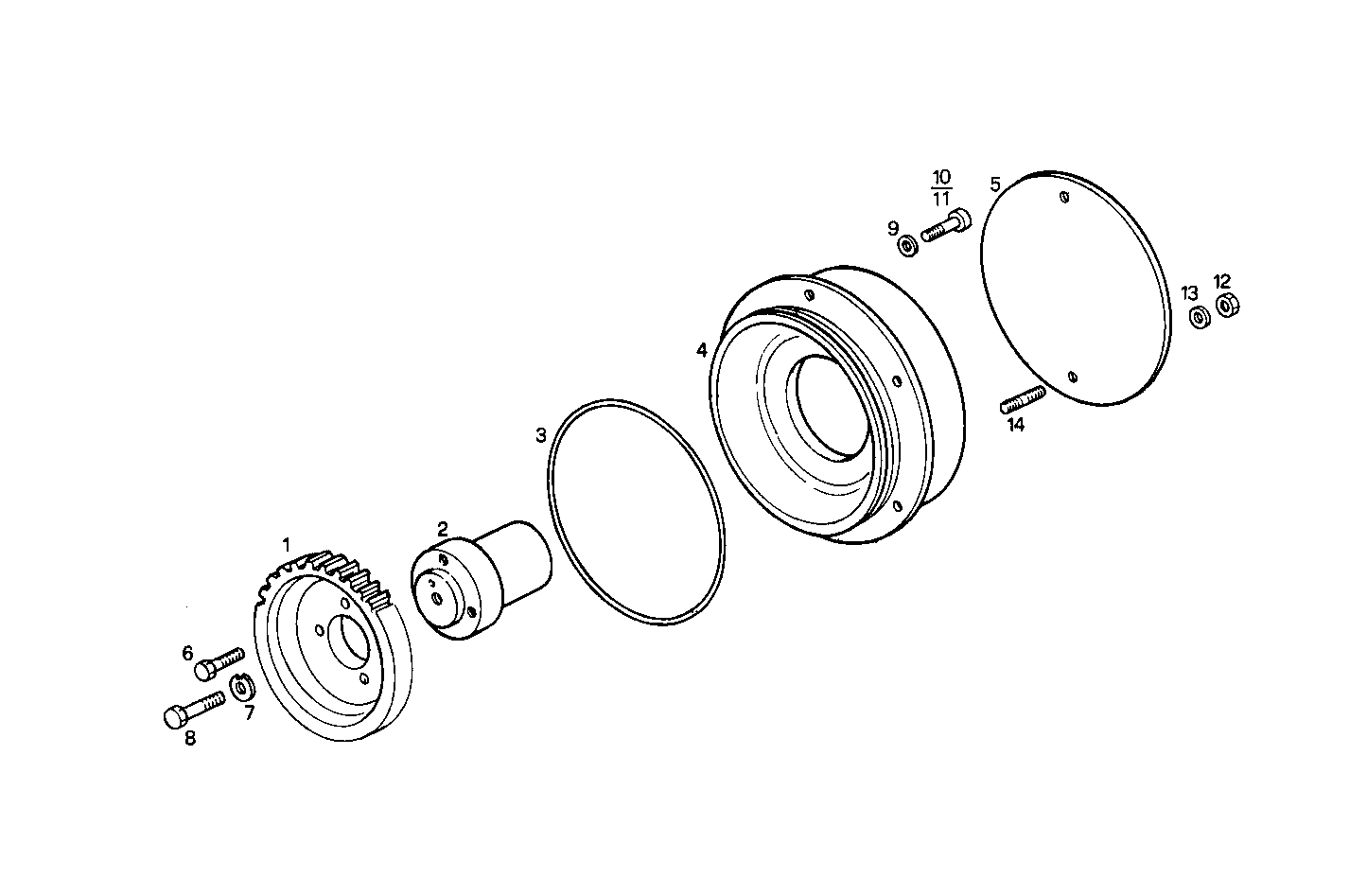

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012811 | GEAR GEAR | 1 | |
| 2 | 8017435 | HUB HUB | 1 | |
| 3 | 17293081 | O-RING O-RING | 1 | |
| 4 | 8017434 | SUPPORT SUPPORT | 1 | |
| 5 | 8017537 | COVER COVER | 1 | |
| 6 | 17455223 | SCREW SCREW | 4 | |
| 7 | 8017540 | WASHER WASHER | 1 | |
| 8 | 17455234 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17095004 | WASHER WASHER | 6 | |
| 10 | 16992224 | SCREW SCREW | 4 | |
| 11 | 16992824 | SCREW SCREW | 2 | |
| 12 | 17038421 | HEXAGON NUT HEXAGON NUT | 2 | |
| 13 | 17091074 | WASHER WASHER | 2 | |
| 14 | 16760524 | STUD STUD | 2 |
