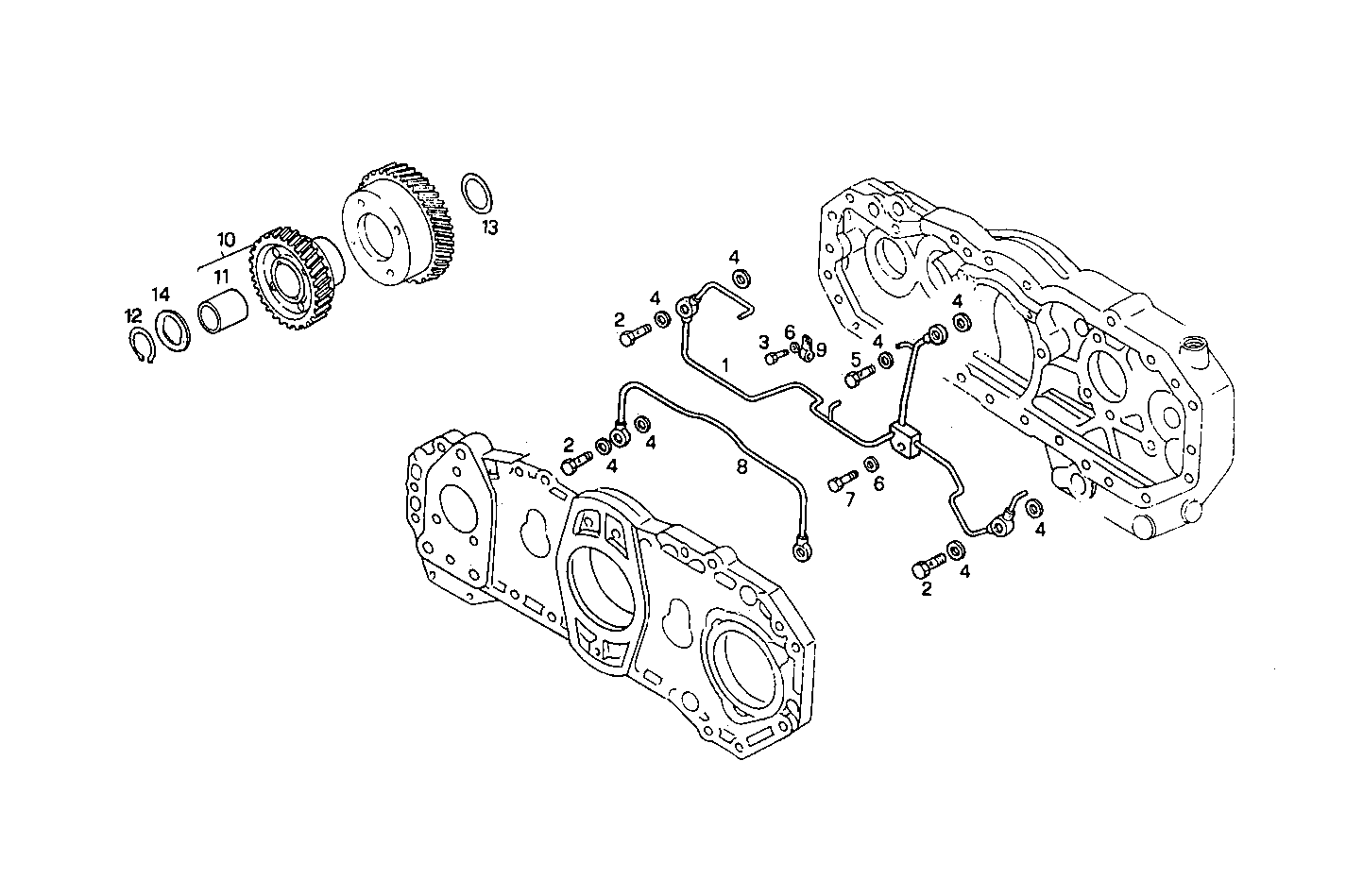

PREARRANGEMENT DRIVE HYDRAULIC PUMP BRUENINGHAUS
8291SRM75.32A003 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012850 | OIL LINE OIL LINE | 1 | |
| 2 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 3 | 16603524 | SCREW SCREW | 2 | |
| 4 | 98474305 | WASHER WASHER | 6 | |
| 5 | 4795453 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 6 | 17094714 | WASHER WASHER | 5 | |
| 7 | 16603824 | SCREW SCREW | 1 | |
| 8 | 8012847 | OIL LINE OIL LINE | 1 | |
| 9 | 4791489 | CLIP CLIP | 4 | |
| 10 | 8012722 | GEAR GEAR | 1 | |
| 11 | 8014863 | BUSH BUSH | 2 | |
| 12 | 16867876 | CIRCLIP CIRCLIP | 1 | |
| 13 | 4809425 | WASHER WASHER | 1 | |
| 14 | 4667498 | WASHER WASHER | 1 |
