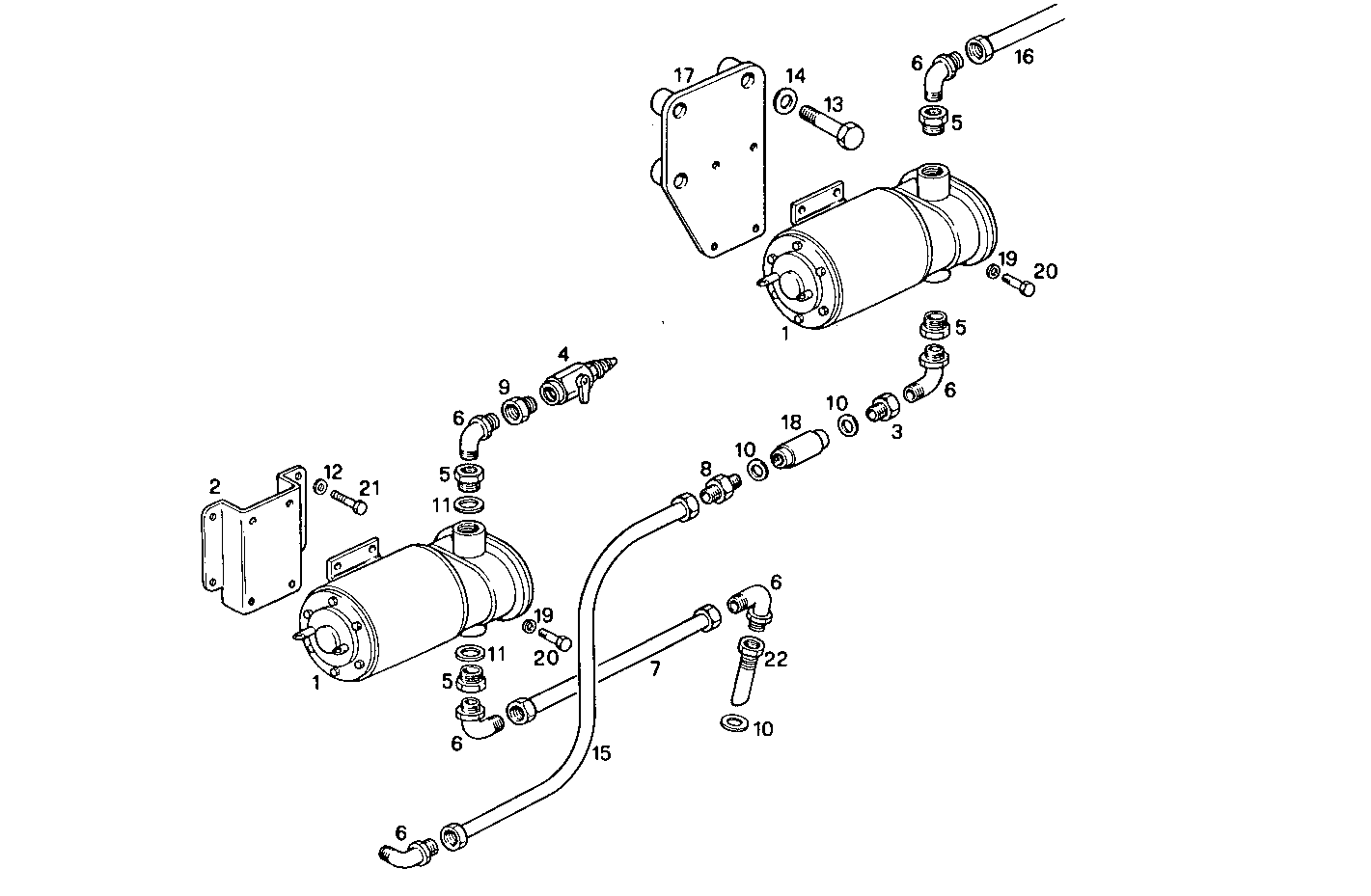

OIL OUTLET PUMP
8291SRM75.32A005 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8011001 | OIL DRAIN ELECTRIC PUMP OIL DRAIN ELECTRIC PUMP | 2 | |
| 2 | 8018171 | SUPPORT SUPPORT | 1 | |
| 3 | 8018215 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8113932 | DRAIN COCK DRAIN COCK | 1 | |
| 5 | 8011422 | PIPE SOCKET PIPE SOCKET | 4 | |
| 6 | 16512111 | PIPE SOCKET PIPE SOCKET | 5 | |
| 7 | 8018194 | OIL LINE OIL LINE | 1 | |
| 8 | 8011304 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 8016102 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 11271460 | GASKET GASKET | 3 | |
| 11 | 11270460 | GASKET GASKET | 3 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 15540721 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 14 | 17091074 | WASHER WASHER | 3 | |
| 15 | 8021754 | OIL LINE OIL LINE | 1 | |
| 16 | 8021755 | OIL LINE OIL LINE | 1 | |
| 17 | 8015906 | SUPPORT SUPPORT | 1 | |
| 18 | 8011241 | VALVE VALVE | 1 | |
| 19 | 17088474 | WASHER WASHER | 8 | |
| 20 | 16603524 | SCREW SCREW | 8 | |
| 21 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 8016101 | OIL LINE OIL LINE | 1 |
