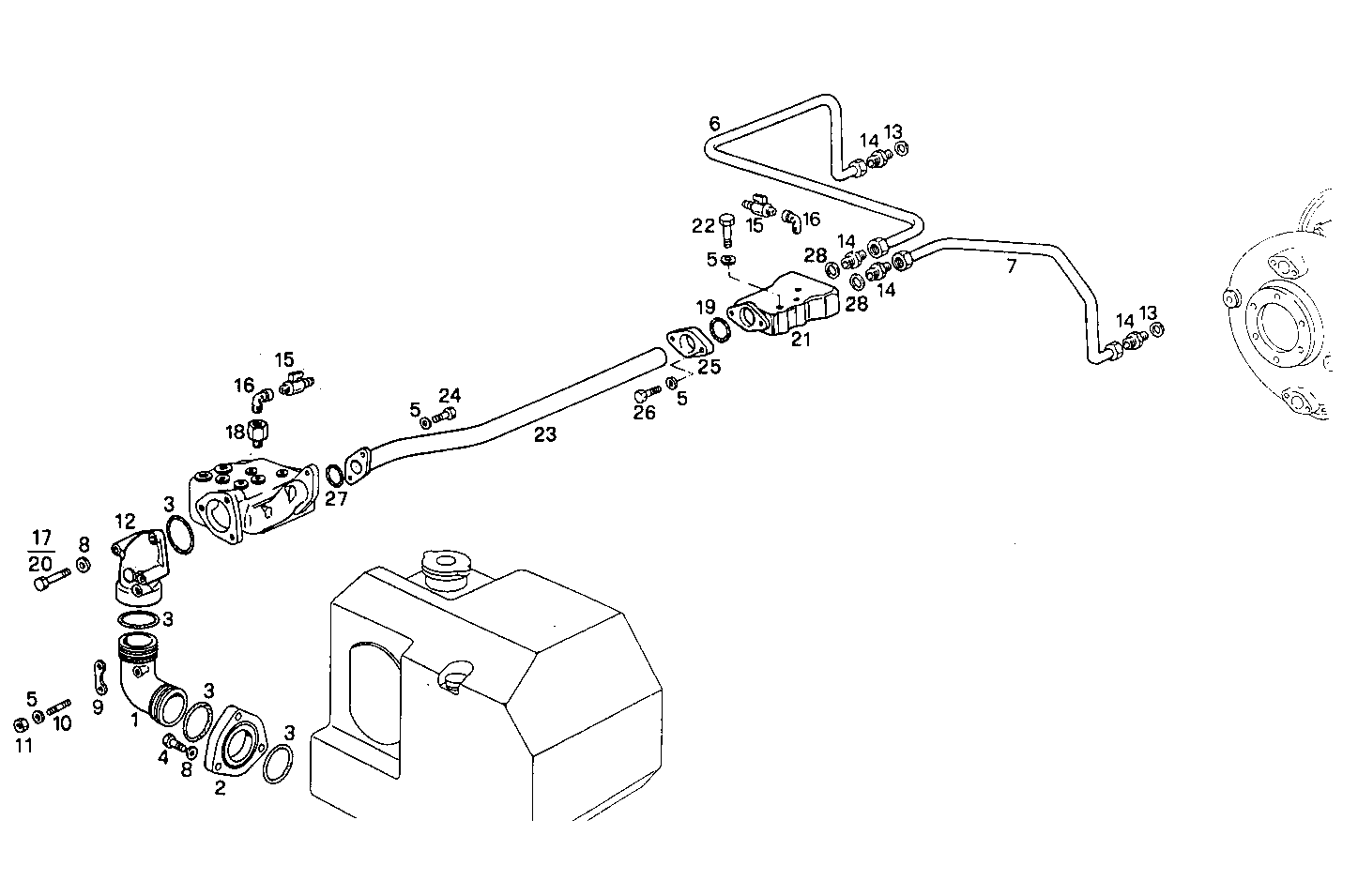

WATER LINES
8291SRM75.32A005 — 8291SRM75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8020498 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8009252 | FLANGE FLANGE | 2 | |
| 3 | 17290581 | O-RING O-RING | 8 | |
| 4 | 16606024 | SCREW SCREW | 3 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 6 | 8021903 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8020583 | WATER PIPE WATER PIPE | 1 | |
| 8 | 17094914 | WASHER WASHER | 6 | |
| 9 | 8019781 | PLATE PLATE | 1 | |
| 10 | 16729224 | STUD STUD | 2 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 12 | 8020497 | WATER PIPE WATER PIPE | 1 | |
| 13 | 98429282 | SEAL GASKET SEAL GASKET | 2 | |
| 14 | 8110943 | PIPE SOCKET PIPE SOCKET | 2 | |
| 15 | 8113932 | DRAIN COCK DRAIN COCK | 2 | |
| 16 | 8005303 | PIPE SOCKET PIPE SOCKET | 2 | |
| 17 | 16605924 | SCREW SCREW | 1 | |
| 18 | 8009273 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 17283381 | O-RING O-RING | 2 | |
| 20 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 21 | 8020580 | WATER PIPE WATER PIPE | 1 | |
| 22 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 23 | 8020585 | WATER PIPE WATER PIPE | 1 | |
| 24 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 25 | 8020582 | FLANGE FLANGE | 1 | |
| 26 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 27 | 17289481 | O-RING O-RING | 2 | |
| 28 | 8024652 | O-RING O-RING | 2 |
