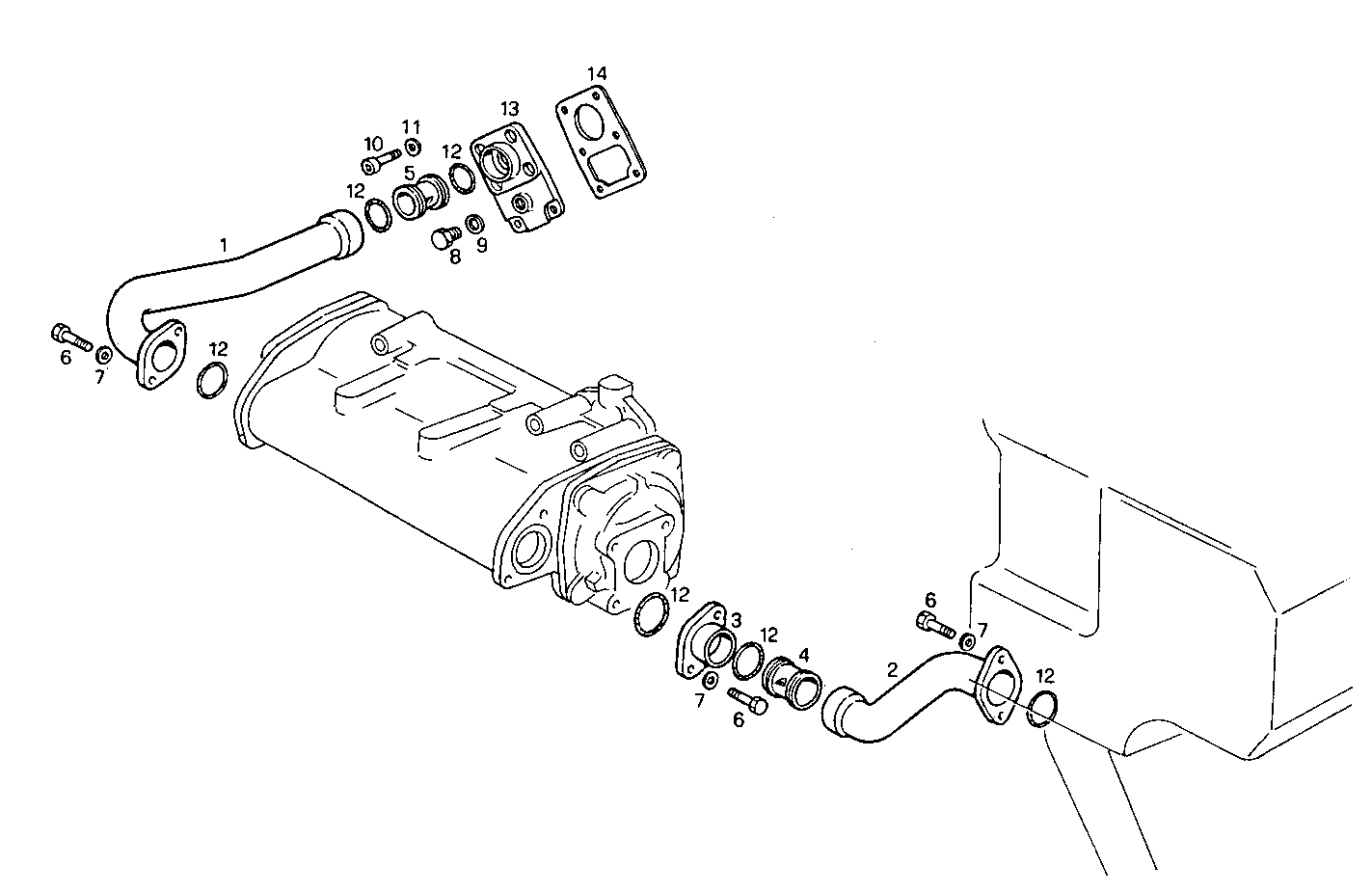

WATER LINES
8291SRM85.12 — 8291SRM85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009593 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8009630 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8021695 | FLANGE FLANGE | 2 | |
| 4 | 8009637 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8016686 | CONNECTION CONNECTION | 1 | |
| 6 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 8 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 9 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 11 | 17101534 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 17289981 | O-RING O-RING | 7 | |
| 13 | 8009895 | WATER PIPE WATER PIPE | 1 | |
| 14 | 8101855 | GASKET GASKET | 1 |
