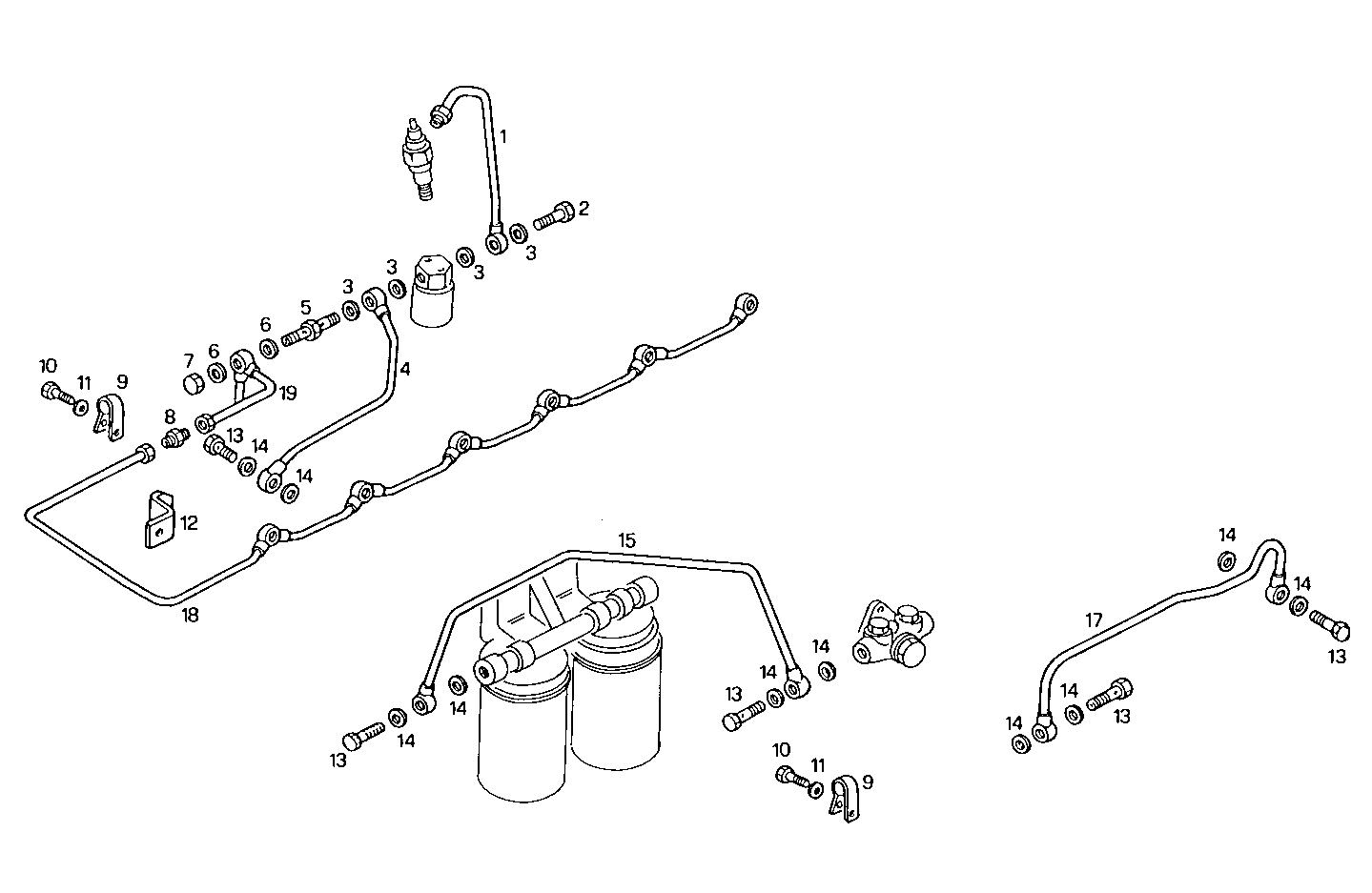

FUEL LINES
8360SRC20.00 — 8360SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500301236 | FUEL LINE FUEL LINE | 1 | |
| 2 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 3 | 4858606 | GASKET GASKET | 5 | |
| 4 | 98485985 | FUEL LINE FUEL LINE | 1 | |
| 5 | 98469450 | BYPASS VALVE BYPASS VALVE | 1 | |
| 6 | 98474306 | WASHER WASHER | 2 | |
| 7 | 98469675 | THREADED PLUG THREADED PLUG | 1 | |
| 8 | 16501514 | THREADED UNION THREADED UNION | 1 | |
| 9 | 17316490 | CLIP CLIP | 3 | |
| 10 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17094714 | WASHER WASHER | 2 | |
| 12 | 4860244 | RETAINER RETAINER | 1 | |
| 13 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 5 | |
| 14 | 98474308 | SEAL GASKET SEAL GASKET | 10 | |
| 15 | 99476410 | FUEL LINE FUEL LINE | 1 | |
| 17 | 99476403 | FUEL LINE FUEL LINE | 1 | |
| 18 | 98444238 | FUEL LINE FUEL LINE | 1 | |
| 19 | 98485989 | FUEL LINE FUEL LINE | 1 |
