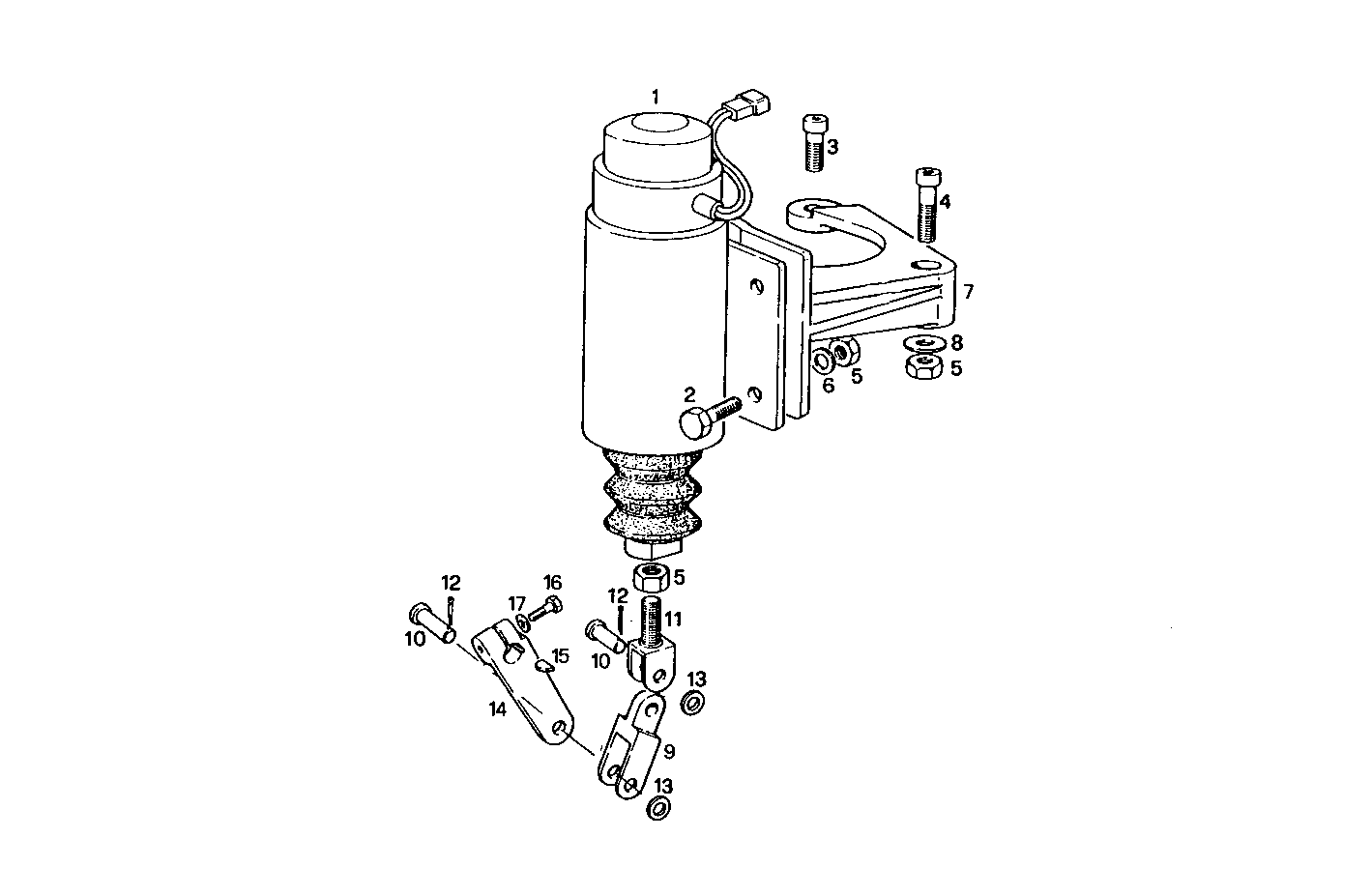

STOP SOLENOID - ENERGIZE TO STOP - 24V
8360SRC20.00 — 8360SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105421 | SOLENOID SOLENOID | 1 | |
| 2 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 2 | |
| 4 | 16689324 | SCREW SCREW | 1 | |
| 5 | 17037821 | HEXAGON NUT HEXAGON NUT | 8 | |
| 6 | 17088974 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 8109114 | SUPPORT SUPPORT | 1 | |
| 8 | 17494734 | WASHER WASHER | 1 | |
| 9 | 8108833 | CLEVIS CLEVIS | 1 | |
| 10 | 17718411 | PIN PIN | 2 | |
| 11 | 8108834 | CLEVIS CLEVIS | 1 | |
| 12 | 16852501 | SPLIT PIN SPLIT PIN | 2 | |
| 13 | 17094424 | WASHER WASHER | 2 | |
| 14 | 8006297 | LEVER LEVER | 1 | |
| 15 | 8101048 | KEY KEY | 1 | |
| 16 | 16602124 | SCREW SCREW | 1 | |
| 17 | 17494634 | SPRING WASHER SPRING WASHER | 1 |
