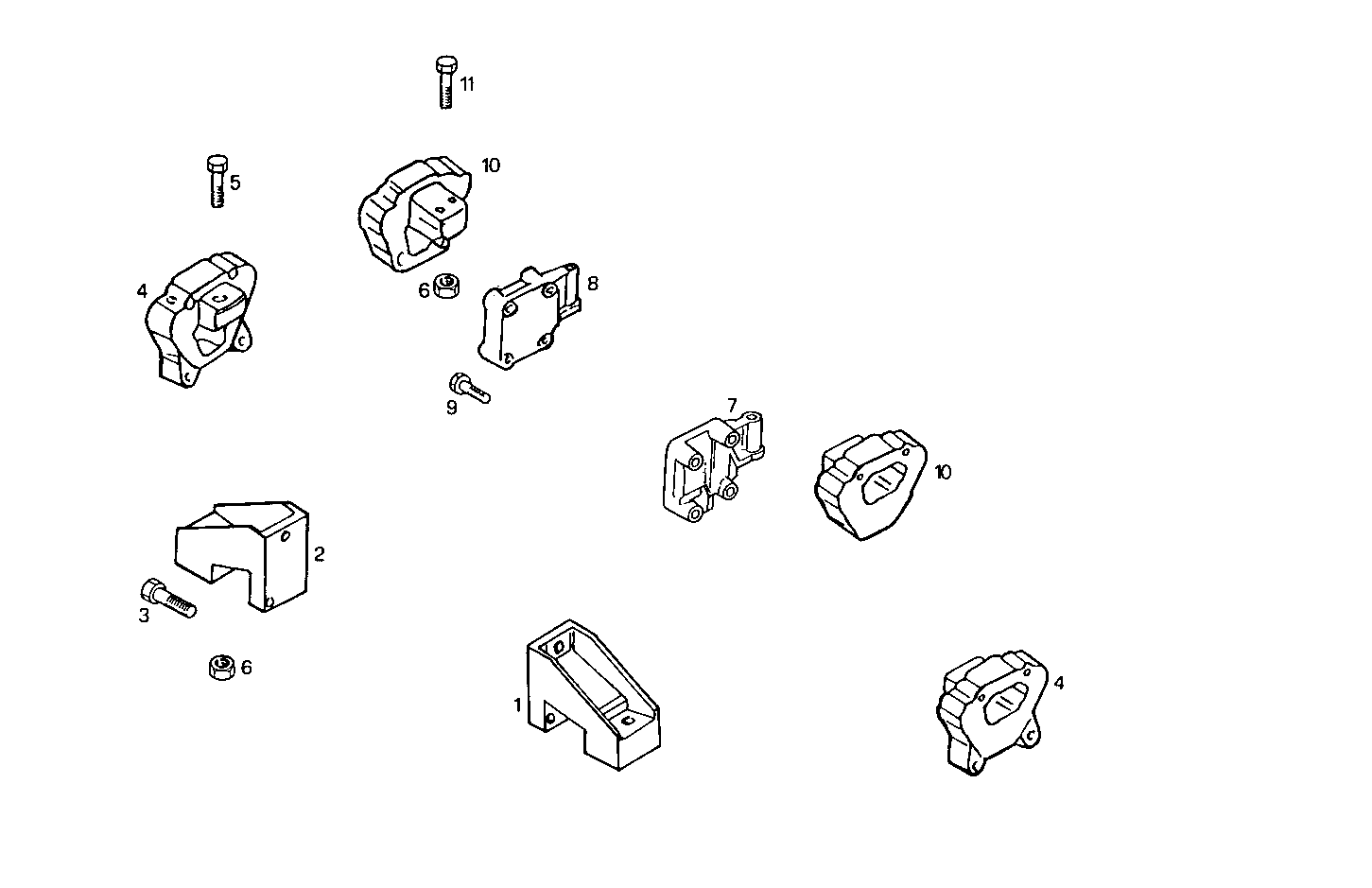

ENGINE MOUNTING AND TRANSMISSION
8360SRC21.00 — 8360SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4850657 | FRONT ENG. MOUNT FRONT ENG. MOUNT | 1 | |
| 2 | 4850656 | FRONT ENG. MOUNT FRONT ENG. MOUNT | 1 | |
| 3 | 16682534 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 98431473 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 2 | |
| 5 | 16683634 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 16984631 | NUT NUT | 4 | |
| 7 | 4849701 | REAR ENG. MOUNT REAR ENG. MOUNT | 1 | |
| 8 | 4849702 | REAR ENG. MOUNT REAR ENG. MOUNT | 1 | |
| 9 | 16682934 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 10 | 4842568 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 2 | |
| 11 | 16683434 | HEXAGON BOLT HEXAGON BOLT | 2 |
