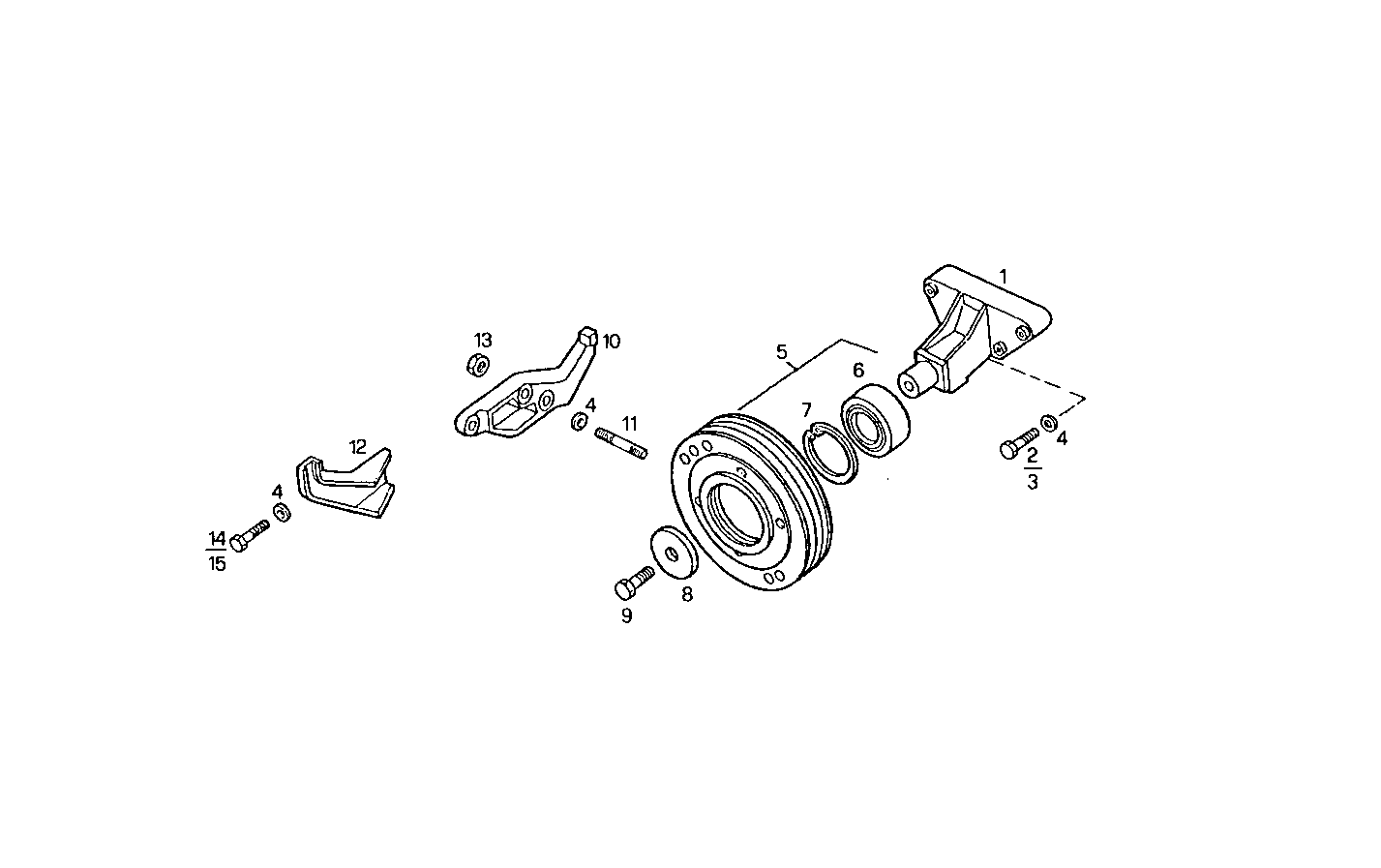

FAN
8360SRC21.00 — 8360SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98470565 | SUPPORT SUPPORT | 1 | |
| 2 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 15971821 | SCREW SCREW | 2 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 9 | |
| 5 | 98470573 | PULLEY PULLEY | 1 | |
| 6 | 98427607 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 7 | 16874773 | CIRCLIP CIRCLIP | 1 | |
| 8 | 98427590 | WASHER WASHER | 1 | |
| 9 | 16678434 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 98451950 | RETAINER RETAINER | 1 | |
| 11 | 13449224 | STUD STUD | 2 | |
| 12 | 98451945 | RETAINER RETAINER | 1 | |
| 13 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 14 | 15888824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 11343824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 98429205 | SET OF V-BELTS SET OF V-BELTS | 1 |
